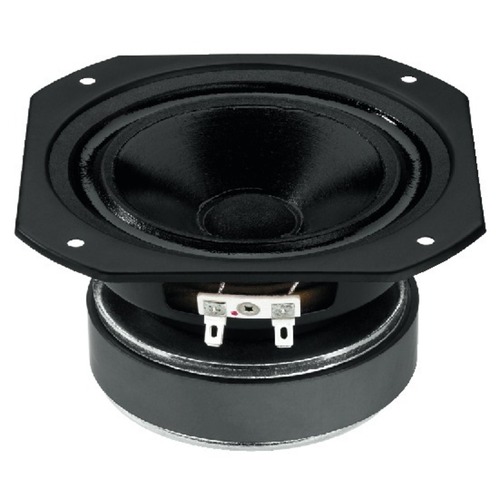

Hi-Fi midrange speaker 80W MAX, 8 Ohm
Code: MZMMS130
£30.00
was
£34.96
(£25.00
ex VAT)
-
VAT
Max 2 available
Choose quantity
Order now for dispatch on Mon 23rd Feb.
Description
Hi-Fi midrange speaker, 80WMAX, 40WRMS, 8Ω
Inverse surround and coated cone, low moving mass for optimum transient response, for combinations of a high level stability.
NUMBER ONE product code: MS-130
Details
| TECHNICAL DATA: | |
| Impedance (Z) | 8 Ω |
| Resonant frequency (fs) | 120 Hz |
| Max. frequency range | fx-8,000 Hz |
| Music power | 80 WMAX (400-5,000 Hz) |
| Power rating (P) | 40 WRMS |
| SPL (1 W/m) | 94 dB |
| Suspension compl. (Cms) | 0.44 mm/N |
| Moving mass (Mms) | 4 g |
| Mech. Q factor (Qms) | 5.23 |
| Electr. Q factor (Qes) | 1.06 |
| Total Q factor (Qts) | 0.88 |
| Equivalent volume (Vas) | 3 l |
| DC resistance (Re) | 6.1 Ω |
| Force factor (BxL) | 4.2 Tm |
| Voice coil induct. (Le) | 0.25 mH |
| Voice coil diameter | 25.5 mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ±0.7 mm |
| Eff. cone area (Sd) | 70 cm2 |
| Magnet weight | 500 g |
| Weight | 1.3 kg |
