Quality Hi-Fi midrange speaker, 100W MAX, 8 Ohm
Code: MZMMSH115HQ
£57.52
(£47.93
ex VAT)
Quantity Pricing
2
-
4
£57.08
each
(£47.57
each ex VAT)
5
+
£56.66
each
(£47.22
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description

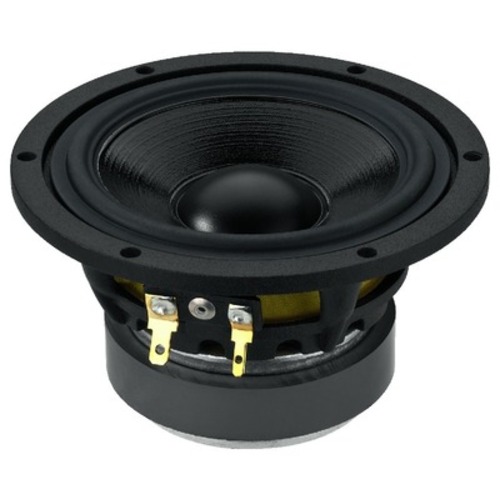

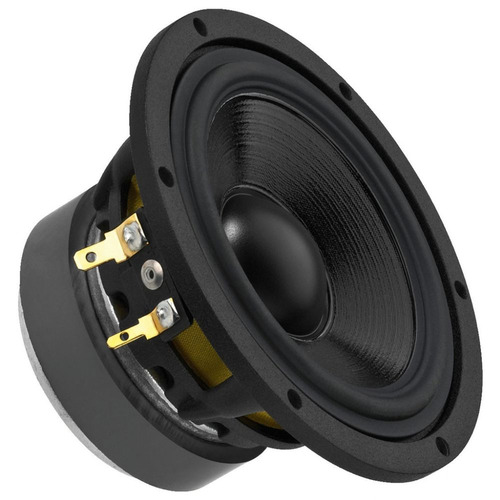

High quality 100mm (4") Hi-Fi midrange speaker, 100WMAX, 50WRMS, 8Ω
Excellent quality Hi-Fi speaker for highest sound requirements.
- 100mm (4") midrange speaker, further development of the classic speaker MSH-115
- Specialised for the reproduction of the important midrange

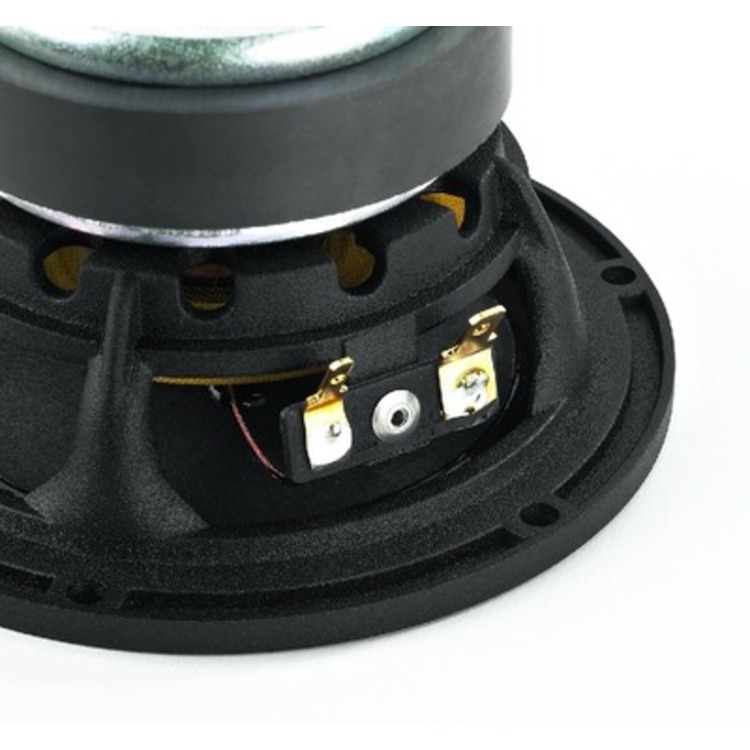

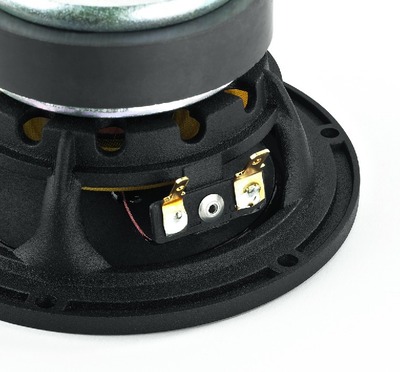

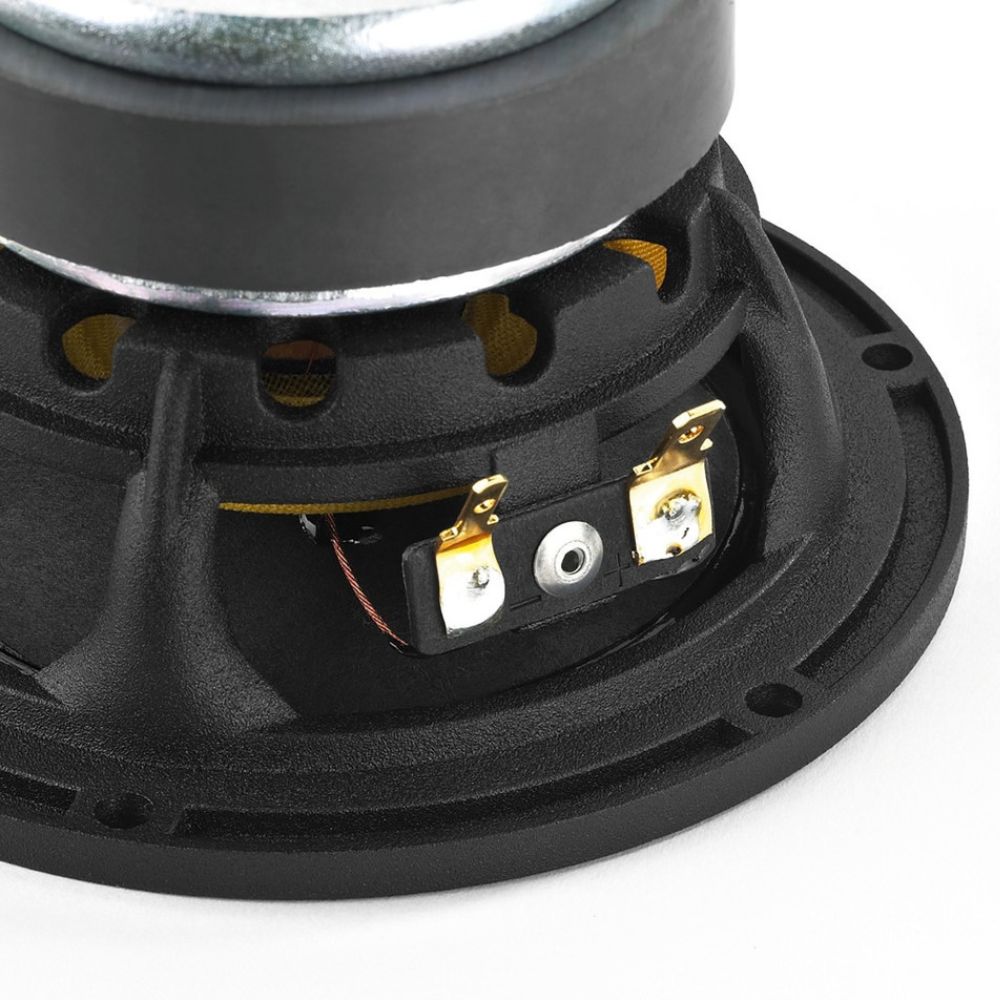

- Equipped with a diecast basket and rear-ventilated centering spider for minimum mechanical loss
- High-quality, low-resonance paper cone

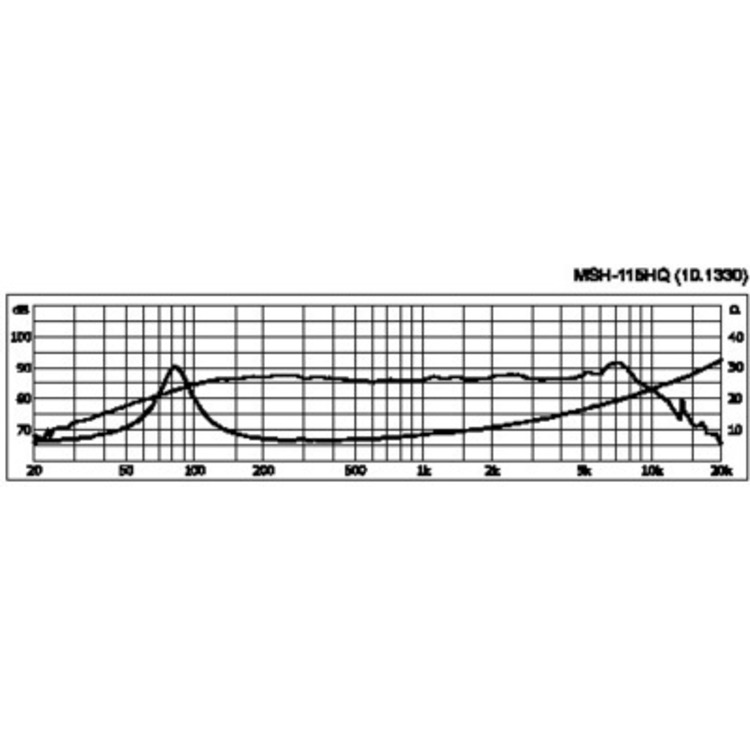

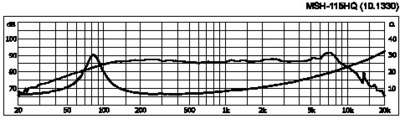

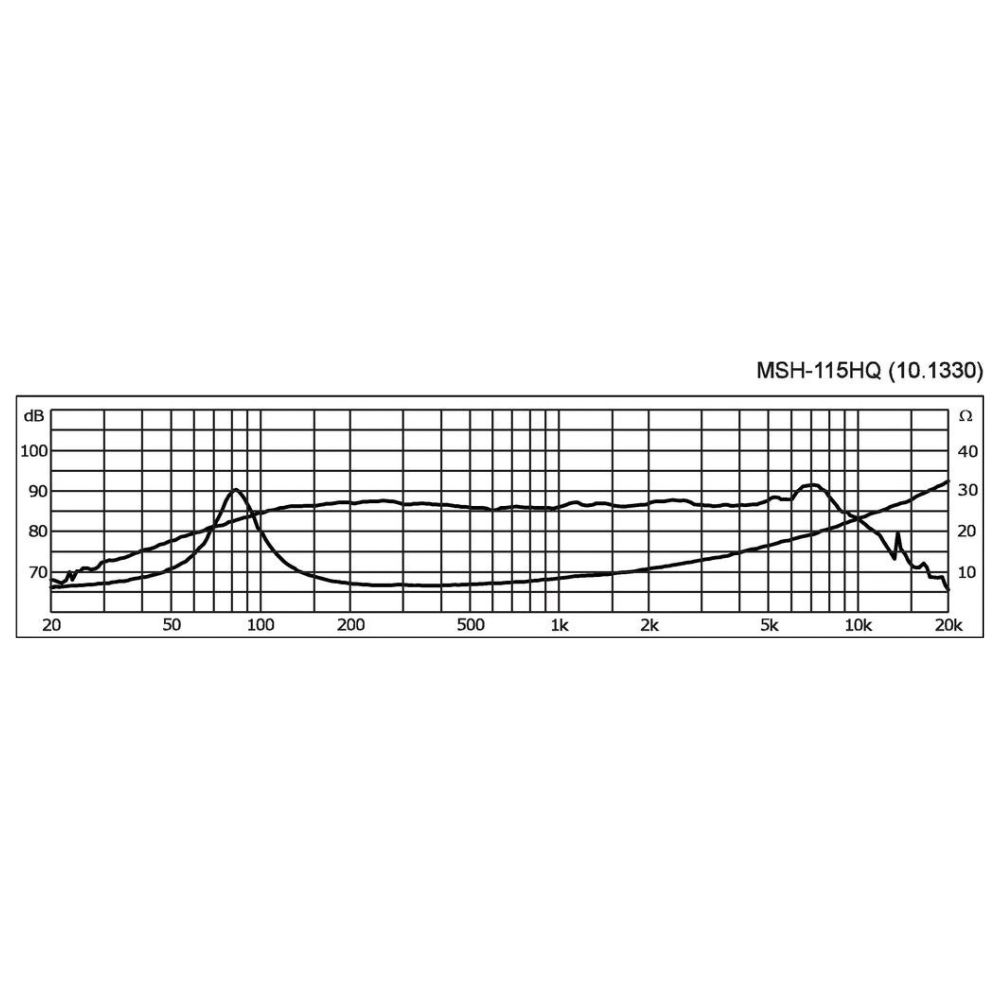

- Wide and linear transmission range
- Also ideally suited for the application in small satellite systems with subwoofer support
"Smooth, very fast decay. Impresses with its high-quality workmanship."
Klang+Ton 02/2013
SPH-10M, MSH-115HQ, RBT-95SR and SAM-2 in the building concept 2DOT1
"A system of appealing design which provides an equally nice sound ... the speaker building concept features an amazing adaptability and almost unlimited settings ... incredibly suitable for everyday use, is capable of reproducing any kind of music and suitable for home cinema systems. The system provided an absolutely amazing sound when tested in the audio room. The small speakers appeared to reproduce the complete bass range. There was no way of locating the subwoofer. The tactics with the tiles achieved great results ... nothing trembles, even though a powerful bass speaker of a high power capability is set-up in the room. The satellites provide an extra light and high-resolution sound."
MONACOR product code: MSH-115HQ
Details

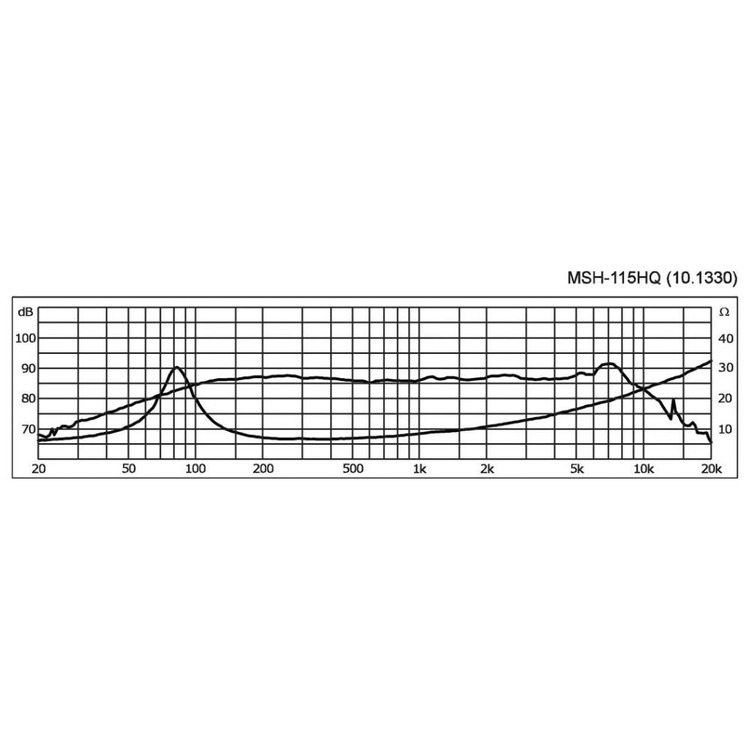

| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 89Hz |
| Max. frequency range | fx-8,000Hz |
| Music power | 100WMAX |
| Power rating (P) | 50WRMS |
| SPL (1W/m) | 87dB |
| Suspension compl. (Cms) | 0.5mm/N |
| Moving mass (Mms) | 5.8g |
| Mech. Q factor (Qms) | 3.26 |
| Electr. Q factor (Qes) | 0.66 |
| Total Q factor (Qts) | 0.55 |
| Equivalent volume (Vas) | 2.2 l |
| DC resistance (Re) | 5.8Ω |
| Force factor (BxL) | 5.35Tm |
| Voice coil induct. (Le) | 0.53mH |
| Voice coil diameter | 25mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ±3mm |
| Eff. cone area (Sd) | 55cm2 |
| Magnet weight | 230g |
| Weight | 0.67kg |
