PA midrange speaker 60W MAX, 8 Ohm
Code: MZMSP460PRO
Quantity Pricing
-
VAT
Out of Stock
Please enter your email address below and we will notify you once this item is back in stock.
Description

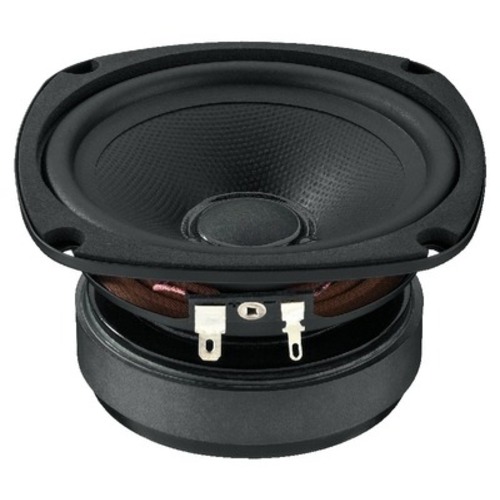

PA 10cm (4") midrange speaker, 60WMAX, 30WRMS, 8Ω
- 10cm (4") PA midrange speaker
- Midrange speaker from the L-RAY/1000
- Very linear and wide frequency range
- Excellent sound and dynamic characteristics
- Due to a great linear excursion for a midrange system, a very low crossover frequency at subwoofer systems is possible
- Ideally suited for small PA systems, column speakers and also as a Hi-Fi midrange speaker
HOBBY HiFi 01/2013
"Impressively low THD values for a crystal-clear reproduction of the midrange."
HiFi-Selbstbau 07/2012
"Attractive price, unobtrusive, yet very good. This perfectly describes the midrange speaker SP-4/60PRO from IMG Stage Line. You can often be more successful when using your head instead of excessive material, ... The staff from MONACOR know exactly why they accommodate two of the SP-4/60PRO in the PA combination L-RAY/1000. We have always been curious as to why they only used a 10cm speaker - but now we know why: the speaker is capable of a powerful bass reproduction without any kind of hesitation. They have done EVERYTHING right."
IMG STAGE LINE product code: SP-4/60PRO
Details
TECHNICAL DATA:
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 92Hz |
| Max. frequency range | f3-10,000Hz |
| Music power | 60WMAX |
| Power rating (P) | 30WRMS |
| SPL (1W/m) | 90dB |
| Suspension compl. (Cms) | 0.47mm/N |
| Moving mass (Mms) | 6.3g |
| Mech. Q factor (Qms) | 5.35 |
| Electr. Q factor (Qes) | 0.67 |
| Total Q factor (Qts) | 0.60 |
| Equivalent volume (Vas) | 3.04 l |
| DC resistance (Re) | 6.76Ω |
| Force factor (BxL) | 5.85Tm |
| Voice coil induct. (Le) | 0.3mH |
| Voice coil diameter | 25mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ± 2.3mm |
| Eff. cone area (Sd) | 68cm2 |
| Magnet weight | - |
| Weight | 0.9kg |
