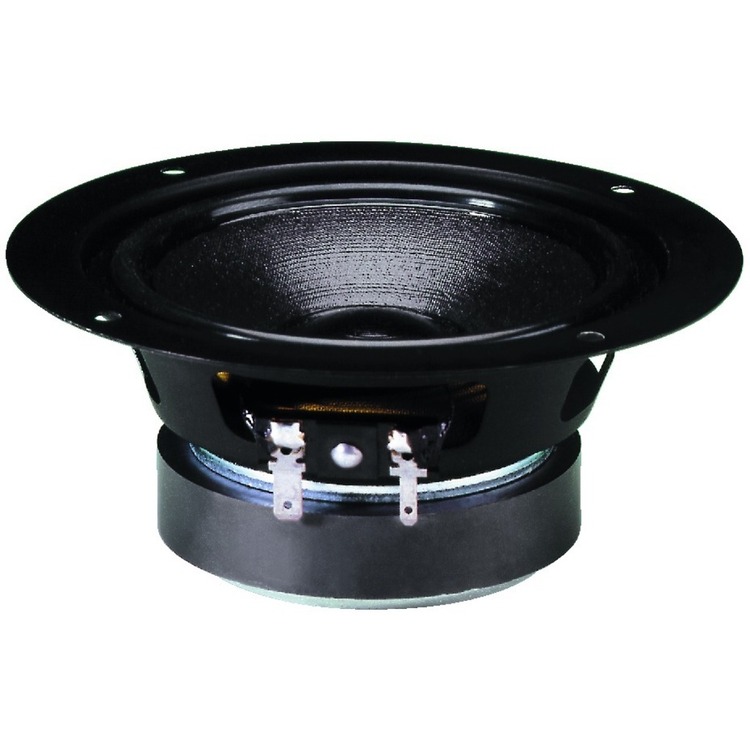

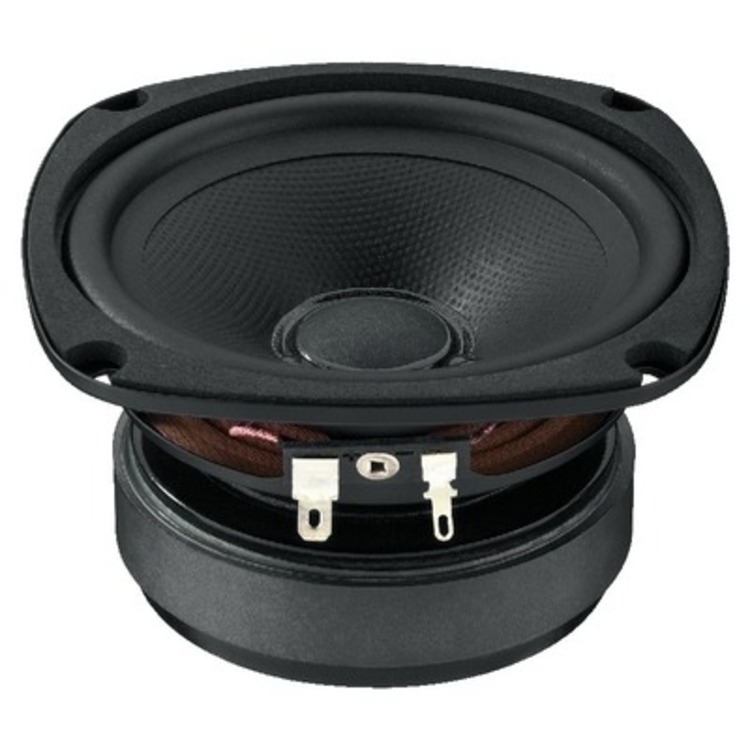

Hi-Fi midrange speaker, 120W MAX, 4 Ohm
Code: MZMMSH1164
£49.42
(£41.18
ex VAT)
Quantity Pricing
2
-
4
£49.04
each
(£40.87
each ex VAT)
5
+
£48.68
each
(£40.57
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description
Hi-Fi midrange speaker, 120WMAX, 40WRMS, 4Ω
Shows the excellent reproduction quality that can be achieved, if the possibilities of approved materials are fully utilised.
High-end technology, coated special cone with highly dampening dust cap and extra flat basket (does not have to be recessed), best possible linearity and a perfect mass-drive ratio with a wide bandwidth, for the sound of the extra class.
Klang+Ton
"This speaker is the surprise of the test. Highly recommendable!"

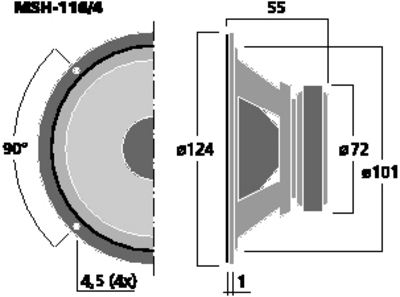

NUMBER ONE product code: MSH-116/4
Details
TECHNICAL DATA:
| Impedance (Z) | 4Ω |
| Resonant frequency (fs) | 95Hz |
| Max. frequency range | fx-10,000Hz |
| Music power | 120WMAX (400-5,000Hz) |
| Power rating (P) | 40WRMS |
| SPL (1W/m) | 91dB |
| Suspension compl. (Cms) | 0.62mm/N |
| Moving mass (Mms) | 4.6g |
| Mech. Q factor (Qms) | 2.38 |
| Electr. Q factor (Qes) | 0.48 |
| Total Q factor (Qts) | 0.40 |
| Equivalent volume (Vas) | 2.7 l |
| DC resistance (Re) | 3.2Ω |
| Force factor (BxL) | 4.3Tm |
| Voice coil induct. (Le) | 0.18mH |
| Voice coil diameter | 25mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ±1mm |
| Eff. cone area (Sd) | 55cm2 |
| Magnet weight | 240g |
| Weight | 0.6kg |
