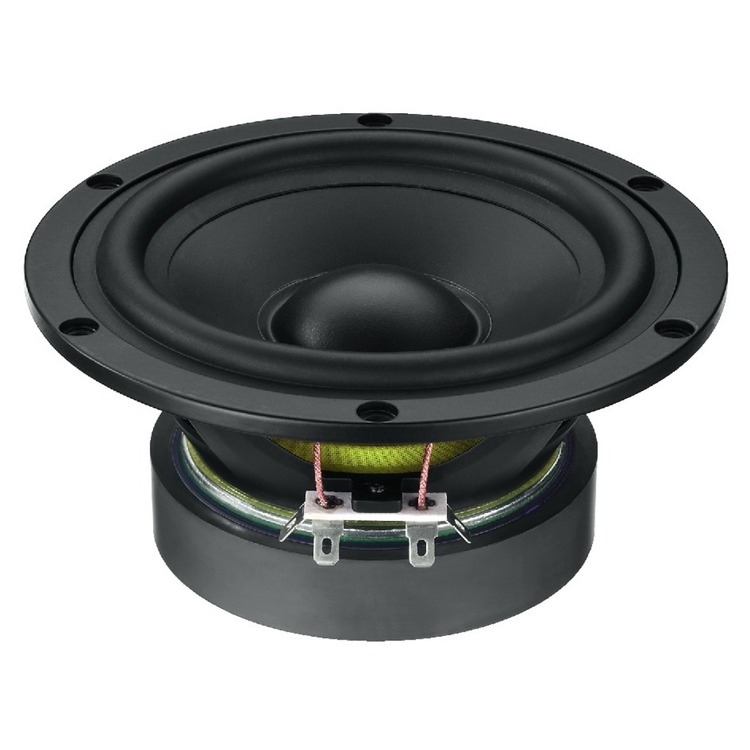

Hi-Fi bass-midrange speaker, 80W Max, 8 Ohm
Code: MZMSPH5M
£43.43
(£36.19
ex VAT)
Quantity Pricing
2
-
4
£43.12
each
(£35.93
each ex VAT)
5
+
£42.79
each
(£35.66
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 25th Feb.
Description
Hi-Fi bass-midrange speaker, 80Wmax, 40Wrms, 8Ω
- High-quality Hi-Fi bass-midrange speaker of long excursion
- Dampened low-resonance polypropylene cone
- Robust diecast aluminium basket of an attractive design with a 6-hole screw connection
- Magnetic system with drilled pole core and protruding rear pole plate
- For general applications in compact bass-reflex, TML and closed speaker systems
- Very well-suited also as a midrange speaker in 3-way speaker systems
HOBBY HiFi - 04/2012
"Impressive subwoofer down to 34Hz."
MONACOR product code: SPH-5M
Details
TECHNICAL DATA:
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 45Hz |
| Max. frequency range | f3-4,000Hz |
| Music power | 80WMAX |
| Power rating (P) | 40WRMS |
| SPL (1W/m) | 88dB |
| Suspension compl. (Cms) | 1.06mm/N |
| Moving mass (Mms) | 11.73g |
| Mech. Q factor (Qms) | 2.89 |
| Electr. Q factor (Qes) | 0.47 |
| Total Q factor (Qts) | 0.41 |
| Equivalent volume (Vas) | 13.47 l |
| DC resistance (Re) | 6.3Ω |
| Force factor (BxL) | 6.42Tm |
| Voice coil induct. (Le) | 0.54mH |
| Voice coil diameter | 25mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ±3.5mm |
| Eff. cone area (Sd) | 95cm2 |
| Magnet weight | 620g |
| Weight | 1.25kg |
