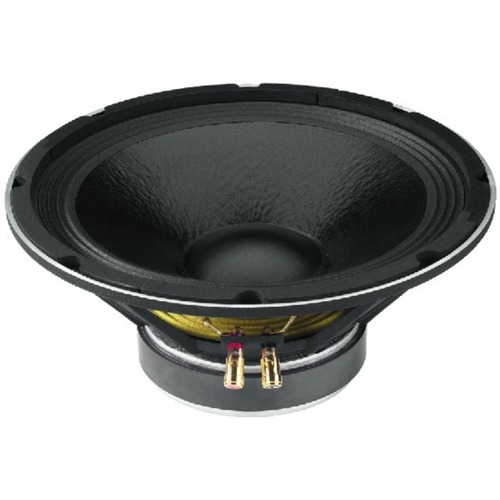

PA bass-midrange speaker, 30cm, 600W MAX, 8 Ohm

Code: MZMSP12A302PA

Write a review

£144.64 (£120.53 ex VAT)

Quantity Pricing

3 +

£137.40 each (£114.50 each ex VAT)

Choose quantity

Order now for dispatch on Mon 5th Jan.

Description

Professional PA bass-midrange speaker, 600Wmax, 300Wrms, 8, 30cm (12")

This speaker is of very high power capability, high efficiency and has drive parameters which allow a reproduction of the complete bass range.

It guarantees excellent results as bass-midrange speakers in 2-way or multi-way systems as well as subwoofers with the two larger models.

Of very high power capability
30 cm (12") professional speaker of long excursion
Diecast basket
Cone with water-repellent coating
Very neat workmanship with facing basket front
Wide frequency response of low distortion
High efficiency
Excellent bass reproduction
Drive system with drilled pole core and additional magnet for optimising the magnetic field and impedance linearisation
For bass-reflex cabinets from 30 litres on already
For all kinds of professinal and semiprofessional PA applications

IMG STAGE LINE product code: SP-12A/302PA

Details

TECHNICAL DATA:

Impedance (Z)	8Ω
Resonant frequency (fs)	50Hz
Max. frequency range	f3-4,000Hz
Music power	600W_MAX
Power rating (P)	300W_RMS
SPL (1W/m)	99dB
Suspension compl. (Cms)	0.19mm/N
Moving mass (Mms)	50g
Mech. Q factor (Qms)	7.87
Electr. Q factor (Qes)	0.35
Total Q factor (Qts)	0.34
Equivalent volume (Vas)	77 l
DC resistance (Re)	6.4Ω
Force factor (BxL)	16.98Tm
Voice coil induct. (Le)	0.8mH
Voice coil diameter	66mm
Voice coil former	Kapton
Linear excursion (X_MAX)	±5mm
Eff. cone area (Sd)	530cm²
Magnet weight	2kg
Weight	5.2kg
