PA bass-midrange speaker, 400W MAX, 8 Ohm
Code: MZMSP12200PA
£132.40
(£110.33
ex VAT)
Quantity Pricing
3
+
£125.78
each
(£104.82
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description

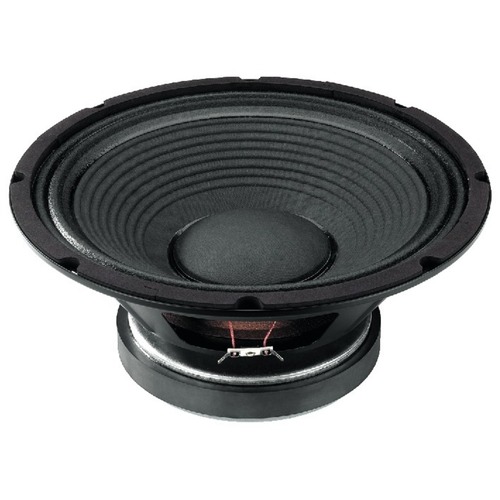

High-quality PA bass-midrange speaker 400 WMAX, 200 WRMS, 8Ω
For general stage and professional DJ applications. Excellent workmanship and perfect specifications for bass-reflex speaker systems of high power capability.
- Very high efficiency and perfect specifications for the use in compact full range speaker systems
- Can ideally be combined with mid-high range horns
IMG STAGE LINE product code: SP-12/200PA
Details
TECHNICAL DATA:
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 45Hz |
| Max. frequency range | f3-5,000Hz |
| Music power | 400WMAX |
| Power rating (P) | 200WRMS |
| SPL (1W/m) | 100dB |
| Suspension compl. (Cms) | 0.29mm/N |
| Moving mass (Mms) | 43g |
| Mech. Q factor (Qms) | 5.20 |
| Electr. Q factor (Qes) | 0.35 |
| Total Q factor (Qts) | 0.33 |
| Equivalent volume (Vas) | 114 l |
| DC resistance (Re) | 6.8Ω |
| Force factor (BxL) | 15.4Tm |
| Voice coil induct. (Le) | 1.2mH |
| Voice coil diameter | 78mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ±4mm |
| Eff. cone area (Sd) | 531cm2 |
| Magnet weight | 1.8kg |
| Weight | 6kg |
