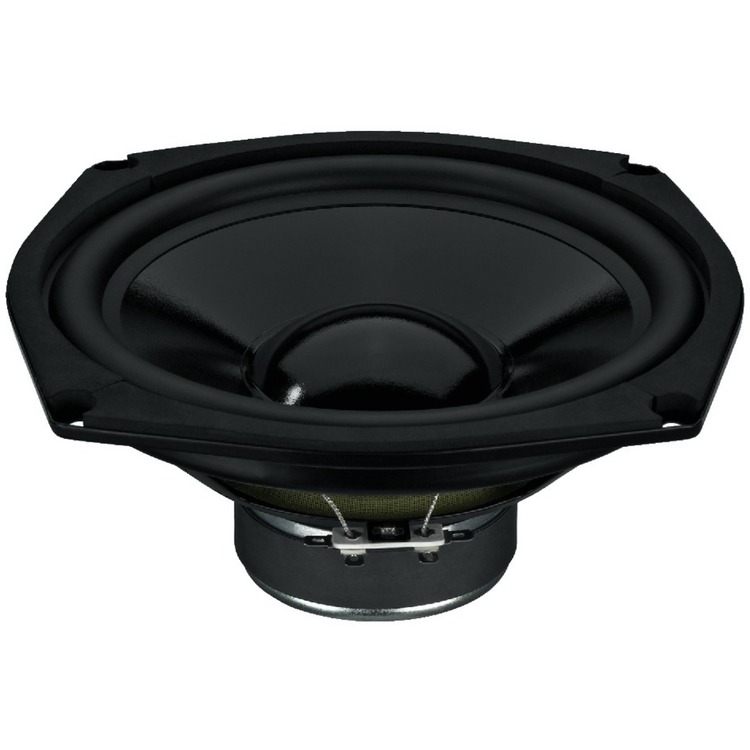

Hi-Fi bass-midrange speaker 150W MAX, 8 Ohm
Code: MZMSPM2058
£30.66
(£25.55
ex VAT)
Quantity Pricing
2
-
4
£29.57
each
(£24.64
each ex VAT)
5
+
£29.12
each
(£24.27
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description
Hi-Fi bass-midrange speaker, 150WMAX, 70WRMS, 8 Ω
- Excellent replacement speakers of the same quality as from the original equipment manufacturer
- Coated low-resonance paper cone
- Long-term stable rubber surround
- To be used preferably in closed or transmission line cabinets
MONACOR product code: SPM-205/8
Details
| TECHNICAL DATA: | |
| Impedance (Z) | 8 Ω |
| Resonant frequency (fs) | 37 Hz |
| Max. frequency range | f3-5,000 Hz |
| Music power | 150 WMAX |
| Power rating (P) | 70 WRMS |
| SPL (1 W/m) | 89 dB |
| Suspension compl. (Cms) | 0.75 mm/H |
| Moving mass (Mms) | 22 g |
| Mech. Q factor (Qms) | 2.95 |
| Electr. Q factor (Qes) | 0.92 |
| Total Q factor (Qts) | 0.7 |
| Equivalent volume (Vas) | 54 l |
| DC resistance (Re) | 7.2 Ω |
| Force factor (BxL) | 6.5 Tm |
| Voice coil induct. (Le) | 0.7 mH |
| Voice coil diameter | 25.5 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ±3 mm |
| Eff. cone area (Sd) | 210 cm2 |
| Magnet weight | 380 g |
| Weight | 1.0 kg |
