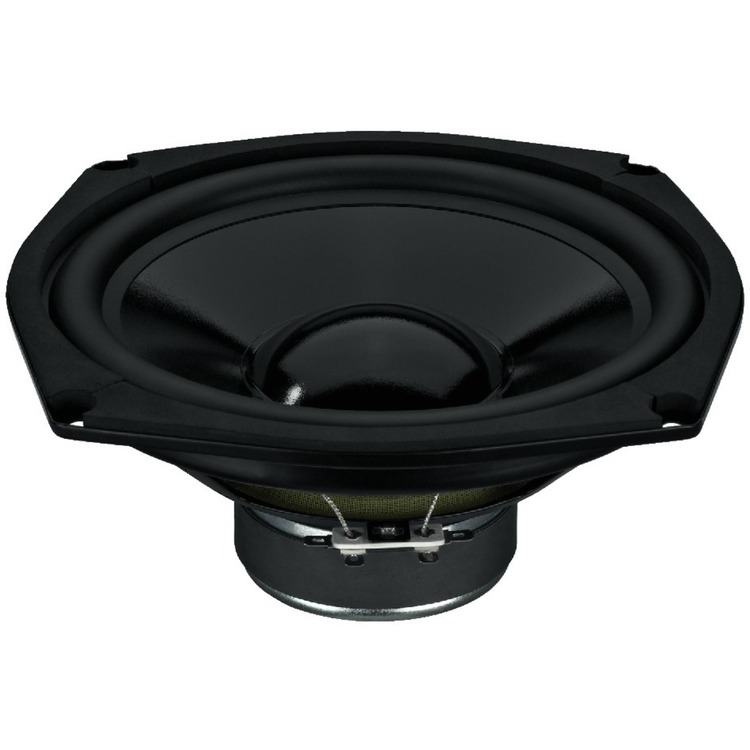

Hi-Fi bass-midrange speaker 150W MAX, 4 Ohm
Code: MZMSPM2054
£33.96
(£28.30
ex VAT)
Quantity Pricing
2
-
4
£33.71
each
(£28.09
each ex VAT)
5
+
£33.46
each
(£27.88
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description
Hi-Fi bass-midrange speaker, 150WMAX, 70WRMS, 4 Ω
- Excellent replacement speakers of the same quality as from the original equipment manufacturer
- Coated low-resonance paper cone
- Long-term stable rubber surround
- To be used preferably in closed or transmission line cabinets
MONACOR product code: SPM-205/4
Details
| TECHNICAL DATA: | |
| Impedance (Z) | 4 Ω |
| Resonant frequency (fs) | 37 Hz |
| Max. frequency range | f3-5,000 Hz |
| Music power | 150 WMAX |
| Power rating (P) | 70 WRMS |
| SPL (1 W/m) | 89 dB |
| Suspension compl. (Cms) | 0.98 mm/H |
| Moving mass (Mms) | 18 g |
| Mech. Q factor (Qms) | 2.71 |
| Electr. Q factor (Qes) | 0.68 |
| Total Q factor (Qts) | 0.55 |
| Equivalent volume (Vas) | 72 l |
| DC resistance (Re) | 3.6 Ω |
| Force factor (BxL) | 4.75 Tm |
| Voice coil induct. (Le) | 0.65 mH |
| Voice coil diameter | 25.5 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ±3 mm |
| Eff. cone area (Sd) | 210 cm2 |
| Magnet weight | 380 g |
| Weight | 1.0 kg |
