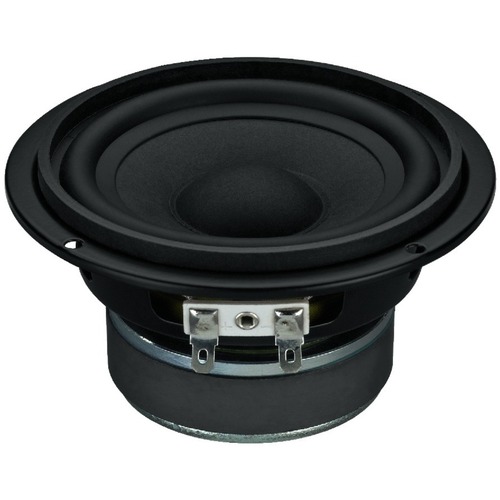

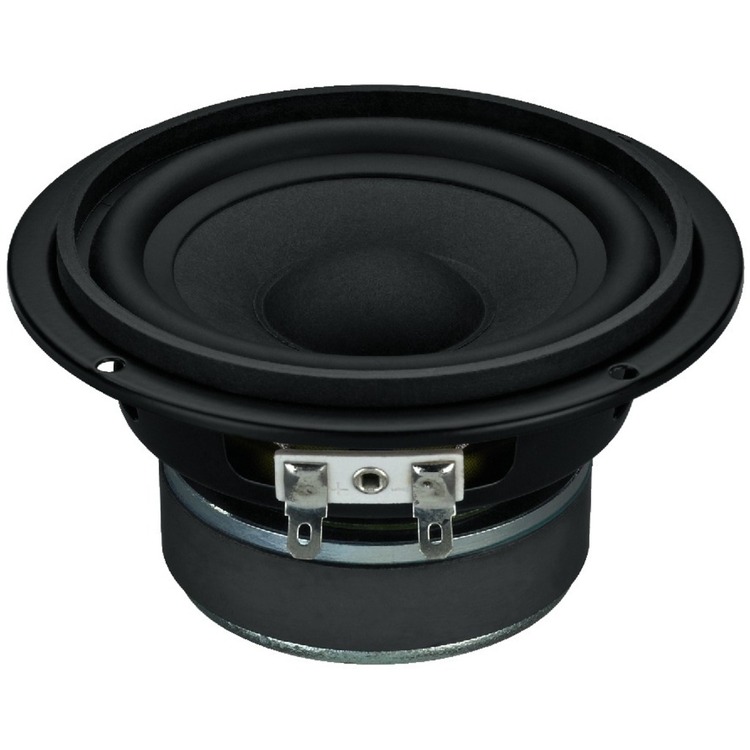

Hi-Fi bass-midrange speaker 80W MAX, 8 Ohm
Code: MZMSPM1168
£16.09
(£13.41
ex VAT)
Quantity Pricing
2
-
4
£15.52
each
(£12.93
each ex VAT)
5
+
£15.29
each
(£12.74
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description
Hi-Fi bass-midrange speaker, 80WMAX, 40WRMS, 8Ω
- Excellent replacement speaker of the same quality as from the original equipment manufacturer
- Low-resonance paper cone
- Long-term stable rubber surround
- Also very well-suited for the use as a full range speaker
MONACOR product code: SPM-116/8
Details
| TECHNICAL DATA: | |
| Impedance (Z) | 8 Ω |
| Resonant frequency (fs) | 75 Hz |
| Max. frequency range | f3-18,000 Hz |
| Music power | 80 WMAX |
| Power rating (P) | 40 WRMS |
| SPL (1 W/m) | 87 dB |
| Suspension compl. (Cms) | 0.98 mm/H |
| Moving mass (Mms) | 3.8 g |
| Mech. Q factor (Qms) | 1.9 |
| Electr. Q factor (Qes) | 0.81 |
| Total Q factor (Qts) | 0.57 |
| Equivalent volume (Vas) | 4.5 l |
| DC resistance (Re) | 7.2 Ω |
| Force factor (BxL) | 4.2 Tm |
| Voice coil induct. (Le) | 0.4 mH |
| Voice coil diameter | 20.5 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ±1.5 mm |
| Eff. cone area (Sd) | 57 cm2 |
| Magnet weight | 230 g |
| Weight | 0.52 kg |
