Hi-Fi bass-midrange speaker 50W MAX, 8 Ohm
Code: MZMSPM1008
£16.12
(£13.43
ex VAT)
Quantity Pricing
2
-
4
£15.54
each
(£12.95
each ex VAT)
5
+
£15.30
each
(£12.75
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description

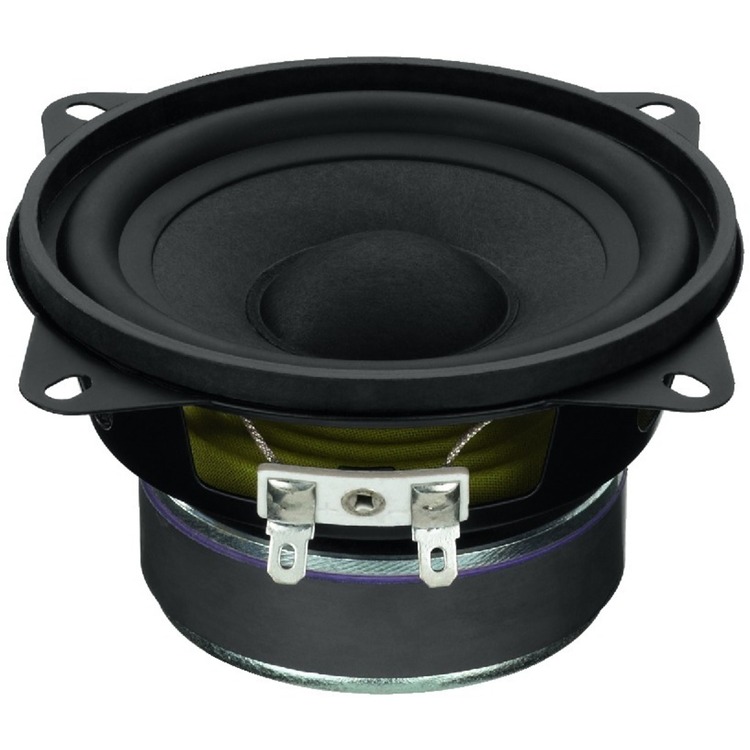

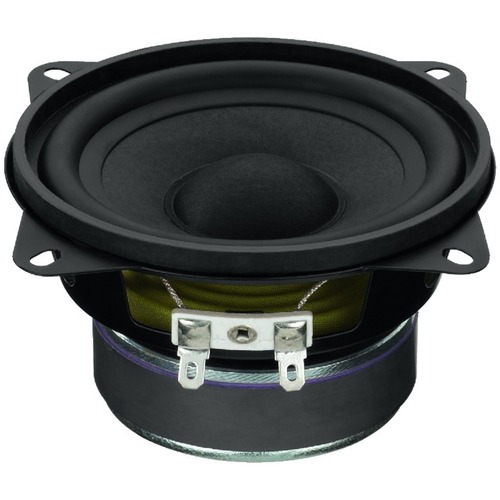

Compact Hi-Fi bass-midrange speaker, 50WMAX, 25WRMS, 8Ω
- Excellent replacement speaker of the same quality as from the original equipment manufacturer
- Low-resonance paper cone
- Long-term stable rubber surround
- Also very well-suited for the use as a full range speaker
MONACOR product code: SPM-100/8
Details
| TECHNICAL DATA: | |
| Impedance (Z) | 8 Ω |
| Resonant frequency (fs) | 75 Hz |
| Max. frequency range | f3-18,000 Hz |
| Music power | 50 WMAX |
| Power rating (P) | 25 WRMS |
| SPL (1 W/m) | 86 dB |
| Suspension compl. (Cms) | 0.8 mm/H |
| Moving mass (Mms) | 4.4 g |
| Mech. Q factor (Qms) | 1.96 |
| Electr. Q factor (Qes) | 1.01 |
| Total Q factor (Qts) | 0.67 |
| Equivalent volume (Vas) | 4 l |
| DC resistance (Re) | 7.2 Ω |
| Force factor (BxL) | 4.1 Tm |
| Voice coil induct. (Le) | 0.4 mH |
| Voice coil diameter | 20.4 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ±1 mm |
| Eff. cone area (Sd) | 57 cm2 |
| Magnet weight | 220 g |
| Weight | 0.52 kg |
