Hi-Fi bass-midrange speaker 150W MAX, 8 Ohm
Code: MZMSPM1658
£31.08
(£25.90
ex VAT)
Quantity Pricing
2
-
4
£29.98
each
(£24.98
each ex VAT)
5
+
£29.53
each
(£24.61
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 25th Feb.
Description

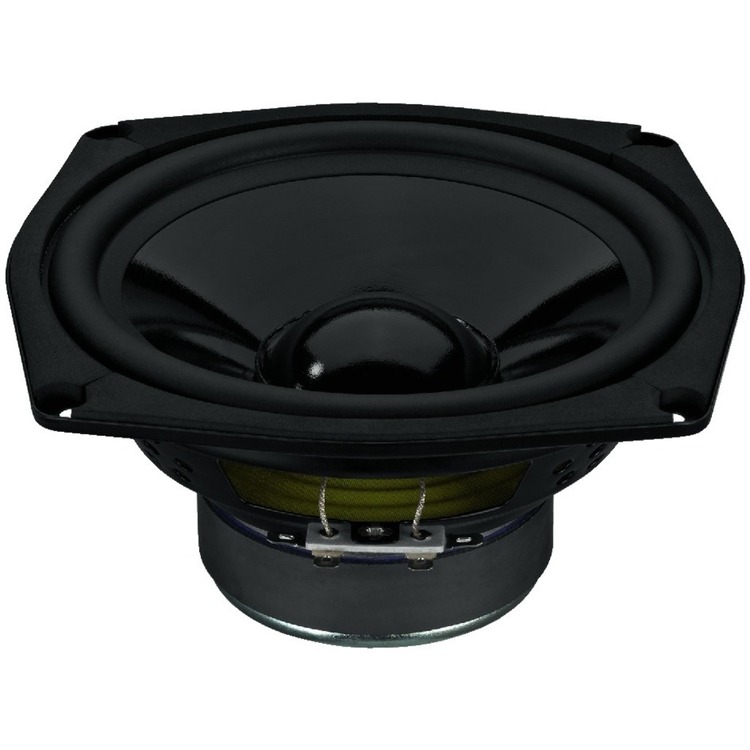

Hi-Fi bass-midrange speaker, 150W MAX, 60W RMS, 8Ω
- Excellent replacement speaker of the same quality as from the original equipment manufacturer
- Coated low-resonance paper cone
- Long-term stable rubber surround
- To be used preferably in closed or transmission line cabinets
MONACOR product code: SPM-165/8
Details
| TECHNICAL DATA: | |
| Impedance (Z) | 8 Ω |
| Resonant frequency (fs) | 49 Hz |
| Max. frequency range | f3-5,000 Hz |
| Music power | 150 WMAX |
| Power rating (P) | 60 WRMS |
| SPL (1 W/m) | 88 dB |
| Suspension compl. (Cms) | 1.0 mm/N |
| Moving mass (Mms) | 10.3 g |
| Mech. Q factor (Qms) | 2.7 |
| Electr. Q factor (Qes) | 0.67 |
| Total Q factor (Qts) | 0.55 |
| Equivalent volume (Vas) | 33 l |
| DC resistance (Re) | 7.2 Ω |
| Force factor (BxL) | 5.8 Tm |
| Voice coil induct. (Le) | 0.6 mH |
| Voice coil diameter | 25.5 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ±3 mm |
| Eff. cone area (Sd) | 140 cm2 |
| Magnet weight | 380 g |
| Weight | 0.91 kg |
