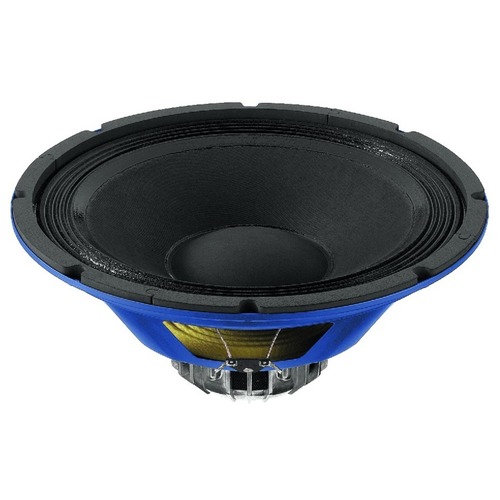

PA bass-midrange speaker, 30cm, 400W MAX, 8 Ohm
Code: MZMSP30200NEO
£139.19
(£115.99
ex VAT)
Quantity Pricing
3
+
£132.23
each
(£110.19
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description
Sheet Steel Series of the Blue Component Speakers from IMG Stage Line
Neodymium PA bass-midrange speaker, 400W MAX, 200W RMS, 8Ω, 30cm (12")
This series offers PA speakers with NEODYMIUM drive. The advantages of the low weight of the new magnetic systems really show, especially in combination with the stable steel baskets, which is less than 2kg for this particular 30cm (12") speaker. This minimum weight is suitable for professional applications and cannot significantly be minimised any further!
- High-performance NEODYMIUM drive
- 30 cm (12")
- High efficiency
- Good frequency response linearity
- Very deep bass tuning possible for a 30 cm PA bass speaker
- For extra lightweight yet professional PA full range speaker systems and top-part speaker systems
IMG STAGE LINE product code: SP-30/200NEO
Details
TECHNICAL DATA:
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 43Hz |
| Max. frequency range | f3-3,000Hz |
| Music power | 400WMAX |
| Power rating (P) | 200WRMS |
| SPL (1W/m) | 98dB |
| Suspension compl. (Cms) | 0.27mm/N |
| Moving mass (Mms) | 50g |
| Mech. Q factor (Qms) | 5.77 |
| Electr. Q factor (Qes) | 0.44 |
| Total Q factor (Qts) | 0.41 |
| Equivalent volume (Vas) | 98 l |
| DC resistance (Re) | 5.5Ω |
| Force factor (BxL) | 12.96Tm |
| Voice coil induct. (Le) | 0.8mH |
| Voice coil diameter | 50mm |
| Voice coil former | glass fibre |
| Linear excursion (XMAX) | ±2.0mm |
| Eff. cone area (Sd) | 510cm2 |
| Magnet weight | 79g (neodymium) |
| Weight | 1.7kg |
