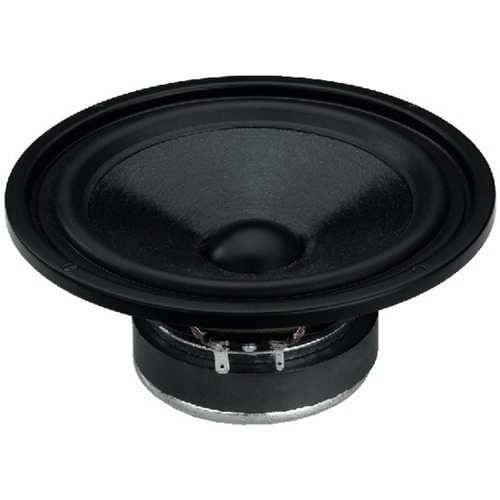

Hi-Fi bass-midrange speaker 120W MAX, 8 Ohm
Code: MZMSPH176
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description
High quality Hi-Fi bass-midrange speaker, 120WMAX, 70WRMS, 8Ω
This high-quality speaker fulfils all requirements made on a modern Hi-Fi bass-midrange speaker at an exceptionally attractive price. It is rear-ventilated, suitably progressive centering, has long linear excursion, a surround with a special frequency response correcting profile and a subwoofer-friendly TSP!
This bass-midrange speaker with coated paper cone, yet high pulsed power, rubber surround and bass-optimised drive characteristics allows to set up speaker systems of highest level stability and of an amazingly low resonance. From 2-way Hi-Fi speakers and attractive dual bass arrangements to very small subwoofers, this highly developed speaker is ideally suited!
HiFi-Selbstbau, Online magazine 2008
"The SPH-176 has got what it takes to become a modern classic. Extra practice-orientated for a small standing speaker."
Klang+Ton 6/2003
"The SPH-176 represents an almost ideal picture of a classic bass-midrange speaker."
ILMAG 11
"An effective combination."

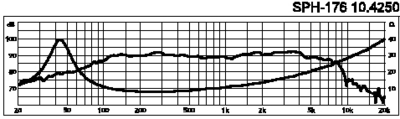

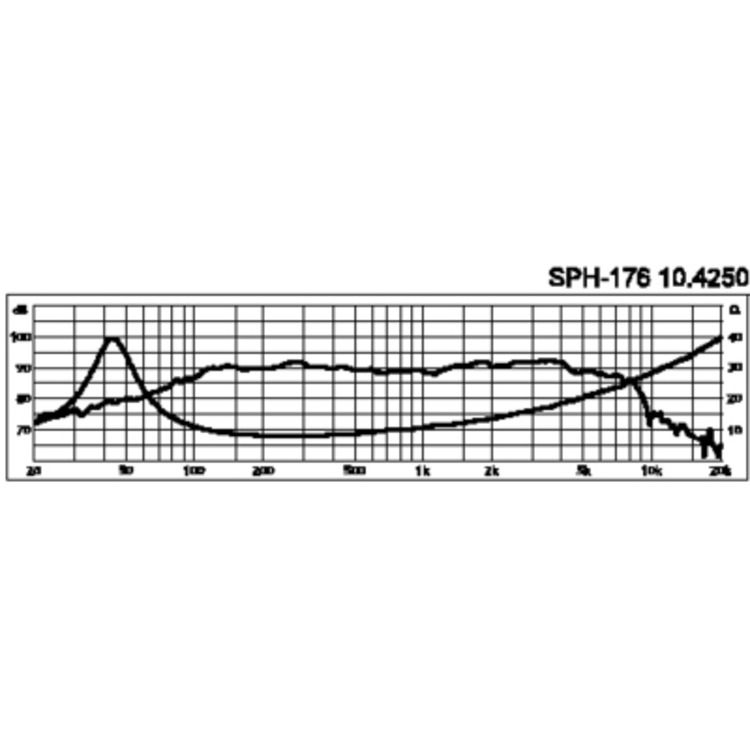

+ very linear frequency response
+ many effective detail solutions
+ quite a long linear excursion
+ very favourable price
NUMBER ONE product code: SPH-176
Details
TECHNICAL DATA:
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 39Hz |
| Max. frequency range | f3-4,500Hz |
| Rec. crossover freq. (fmax.) | - |
| Music power | 120WMAX |
| Power rating (P) | 70WRMS |
| SPL (1W/1m) | 90dB |
| Suspension compl. (Cms) | 1.01mm/N |
| Moving mass (Mms) | 14g |
| Mech. resistance (Rms) | - |
| Mech. Q factor (Qms) | 2.27 |
| Electr. Q factor (Qes) | 0.44 |
| Total Q factor (Qts) | 0.37 |
| Equivalent volume (Vas) | 27 l |
| DC resistance (Re) | 6.6Ω |
| Voice coil induct. (Le) | 0.75mH |
| Voice coil diameter | 25mm |
| Voice coil former | aluminium |
| Voice coil winding height | - |
| Air gap height | - |
| Linear excursion (XMAX) | ±5.5mm |
| Eff. cone area (Sd) | 140cm2 |
| Volume displacement (Vd) | - |
| Force factor (BxL) | 7.7Tm |
| Reference efficiency (No) | - |

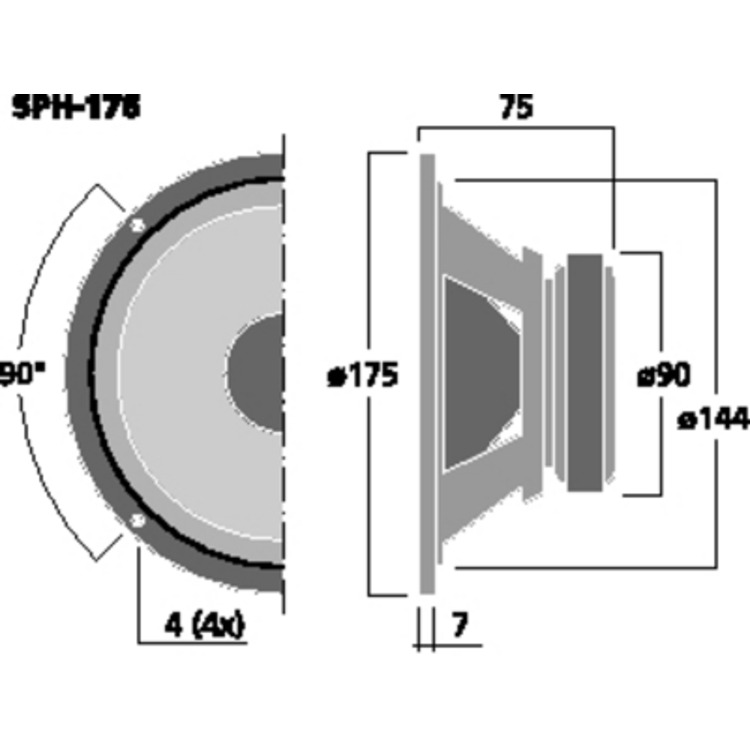

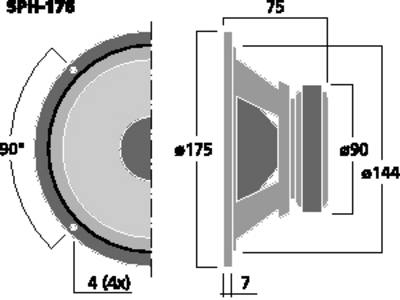

| Magnet diameter | 90mm |
| Magnet weight | 450g |
| Mounting cutout (diameter) |
145mm |
| Mounting depth | 65mm |
| Dimensions (diameter) |
175mm |
| Weight | 1.25kg |
| Rec. net cabinet volume | |
|
Closed |
- |
|
Bass-reflex |
- |
