Bass-midrange speaker, 120W MAX, 8 Ohm
Code: MZMSPH170C
Quantity Pricing
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description

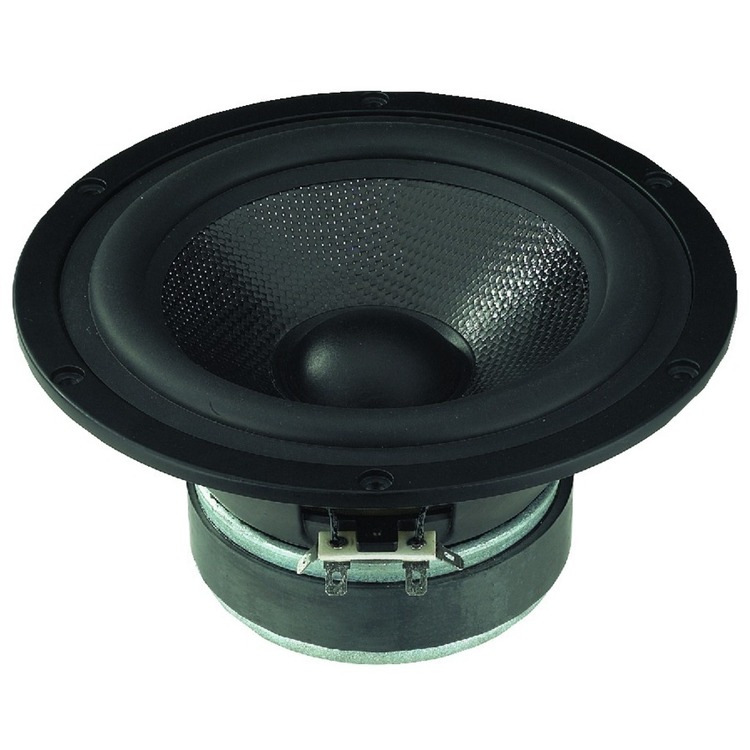

High-end bass-midrange speaker, 120Wmax, 60Wrms, 8Ω
Especially high-quality Hi-Fi bass-midrange speaker of perfect manufacturing quality and elegant design, with aluminium basket, carbon fibre cone and very long excursion.
This speaker provides an impulsive bass reproduction of low fundamental resonance of partly surprisingly small cabinets.
- Excellently dampened cone
- Extra long excursion
- Low distortion
- Particularly natural reproduction
- Very low limit frequency
- Ideally suited as a bass-midrange speaker in 2-way combinations, yet small volume requirements
HOBBY HiFi - 02/2012
"Ideally suited for smaller bookshelf speaker systems. With the SPH-170C, MONACOR offers a bass-midrange speaker of very neat workmanship which impresses by a particularly high-quality design."
NUMBER ONE product code: SPH-170C
Details
TECHNICAL DATA:
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 38Hz |
| Max. frequency range | f3-3,500Hz |
| Music power | 120WMAX |
| Power rating (P) | 60WRMS |
| SPL (1W/m) | 88dB |
| Suspension compl. (Cms) | 1.06mm/N |
| Moving mass (Mms) | 16.43g |
| Mech. Q factor (Qms) | 7.22 |
| Electr. Q factor (Qes) | 0.27 |
| Total Q factor (Qts) | 0.26 |
| Equivalent volume (Vas) | 24 l |
| DC resistance (Re) | 6Ω |
| Force factor (BxL) | 9.44Tm |
| Voice coil induct. (Le) | 0.8mH |
| Voice coil diameter | 37mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ±4mm |
| Eff. cone area (Sd) | 127cm2 |
| Magnet weight | 600g |
| Weight | 2kg |
