Hi-Fi bass-midrange speaker, 100W MAX, 4 Ohm

Code: MZMSP202E

Write a review

£33.71 (£28.09 ex VAT)

Quantity Pricing

2 - 4

£33.47 each (£27.89 each ex VAT)

5 +

£33.22 each (£27.68 each ex VAT)

Choose quantity

Order now for dispatch on Fri 2nd Jan.

Description

Hi-Fi bass-midrange speaker, 100WMAX, 50WRMS, 4Ω

Excellent quality Hi-Fi speaker for universal applications. Well manufactured and ideally suited e.g. as a replacement speaker due to the exceptional price and multi-purpose drive qualities.

Multi-purpose speaker
Foam surround
Replacement speaker for closed speaker systems

HOBBY HIFI 04/2013
"A very talented 2-way speaker, thanks to a very clean reproduction of the midrange. Despite a very attractive price, the SP-202E from MONACOR is ideally suited for 2-way applications and promises an excellent sound quality."

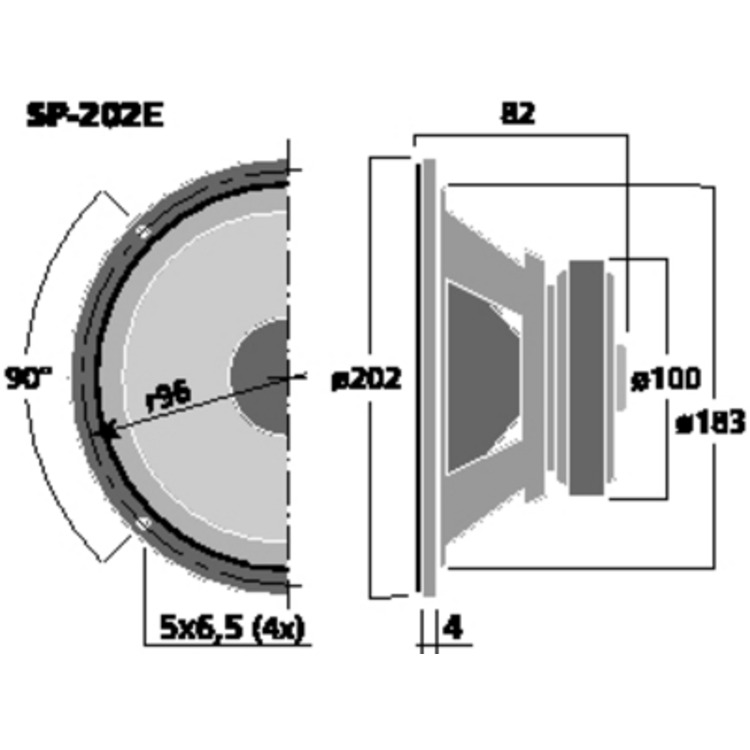

MONACOR product code: SP-202E

Details

TECHNICAL DATA:
Impedance (Z)	4 Ω
Resonant frequency (fs)	51 Hz
Max. frequency range	f3-6,000 Hz
Music power	100 W_MAX
Power rating (P)	50 W_RMS
SPL (1 W/m)	93 dB
Suspension compl. (Cms)	0.62 mm/H
Moving mass (Mms)	15 g
Mech. Q factor (Qms)	4.5
Electr. Q factor (Qes)	0.81
Total Q factor (Qts)	0.69
Equivalent volume (Vas)	39 l
DC resistance (Re)	3.85 Ω
Force factor (BxL)	4.86 Tm
Voice coil induct. (Le)	0.6 mH
Voice coil diameter	25.5 mm
Voice coil former	aluminium
Linear excursion (X_MAX)	± 2.5 mm
Eff. cone area (Sd)	210 cm²
Magnet weight	570 g
Weight	1.25 kg
