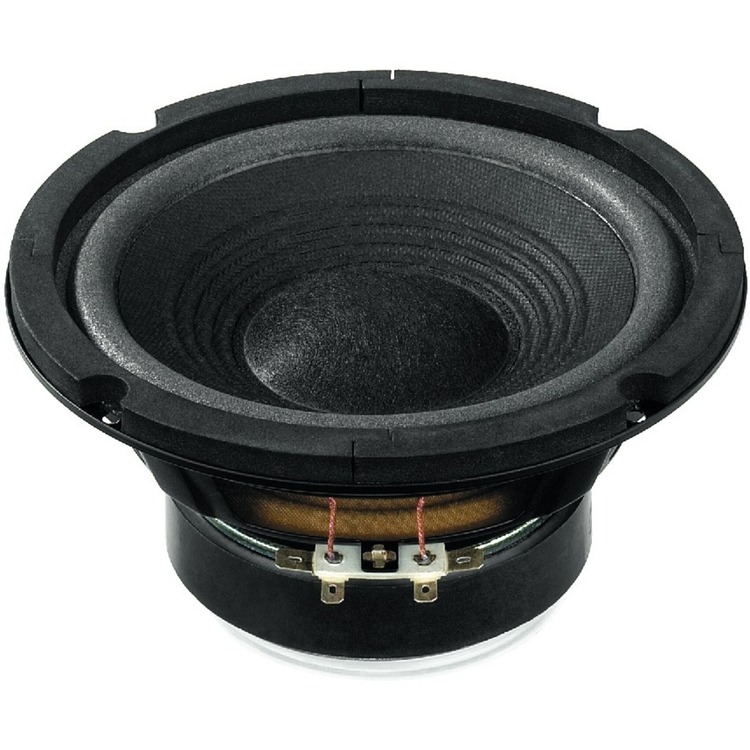

Hi-Fi bass-midrange speaker 70W MAX, 4 Ohm
Code: MZMSP167E
£26.70
(£22.25
ex VAT)
Quantity Pricing
2
-
4
£25.74
each
(£21.45
each ex VAT)
5
+
£25.36
each
(£21.13
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description
Hi-Fi bass-midrange speaker, 70WMAX, 35WRMS, 4Ω
An excellent quality 4Ω Hi-Fi speaker for universal applications. Well manufactured and ideally suited e.g. as a replacement speaker due to the exceptional price and their multi-purpose drive qualities.
- Great multi-purpose speaker
- Foam surround
- Replacement speaker for closed speaker systems and bass-reflex speaker systems
MONACOR product code: SP-167E
Details
| TECHNICAL DATA: | |
| Impedance (Z) | 4 Ω |
| Resonant frequency (fs) | 62 Hz |
| Max. frequency range | f3-6,000 Hz |
| Music power | 70 WMAX |
| Power rating (P) | 35 WRMS |
| SPL (1 W/m) | 92 dB |
| Suspension compl. (Cms) | 0.7 mm/N |
| Moving mass (Mms) | 9.3 g |
| Mech. Q factor (Qms) | 2.78 |
| Electr. Q factor (Qes) | 0.48 |
| Total Q factor (Qts) | 0.41 |
| Equivalent volume (Vas) | 17.88 l |
| DC resistance (Re) | 3.9 Ω |
| Force factor (BxL) | 5.43 Tm |
| Voice coil induct. (Le) | 0.6 mH |
| Voice coil diameter | 25.5 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ±2.5 mm |
| Eff. cone area (Sd) | 135 cm2 |
| Magnet weight | 570 g |
| Weight | 1.15 kg |
