Hi-Fi bass-midrange speaker 60W MAX, 8 Ohm
Code: MZMSP1008
£28.48
(£23.73
ex VAT)
Quantity Pricing
2
-
4
£27.46
each
(£22.88
each ex VAT)
5
+
£27.05
each
(£22.54
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description

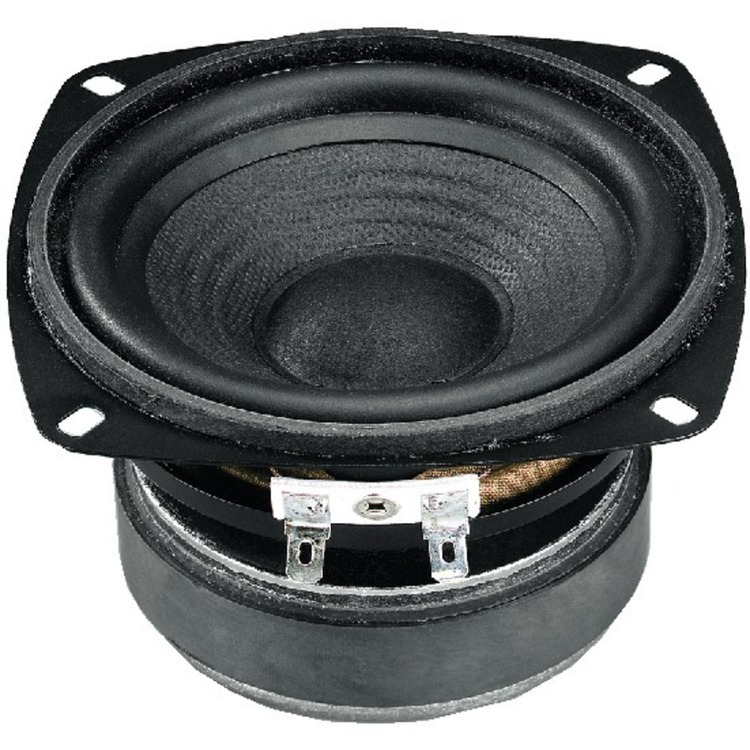

Hi-Fi bass-midrange speaker, 60W MAX, 30W RMS, 8Ω
Stable paper cone, high-quality aluminium coil, drilled pole core and rubber surround, with excellent radiation and transient response.
MONACOR product code: SP-100/8
Details
TECHNICAL DATA:
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 61Hz |
| Max. frequency range | f3-7,000Hz |
| Music power | 60WMAX |
| Power rating (P) | 30WRMS |
| SPL (1W/m) | 88dB |
| Suspension compl. (Cms) | 1.23mm/N |
| Moving mass (Mms) | 5.5g |
| Mech. Q factor (Qms) | 2.28 |
| Electr. Q factor (Qes) | 0.44 |
| Total Q factor (Qts) | 0.37 |
| Equivalent volume (Vas) | 4.7 l |
| DC resistance (Re) | 6.5Ω |
| Force factor (BxL) | 5.55Tm |
| Voice coil induct. (Le) | 0.4mH |
| Voice coil diameter | 25mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ±2.5mm |
| Eff. cone area (Sd) | 52cm2 |
| Magnet weight | 280g |
| Weight | 0.8kg |
