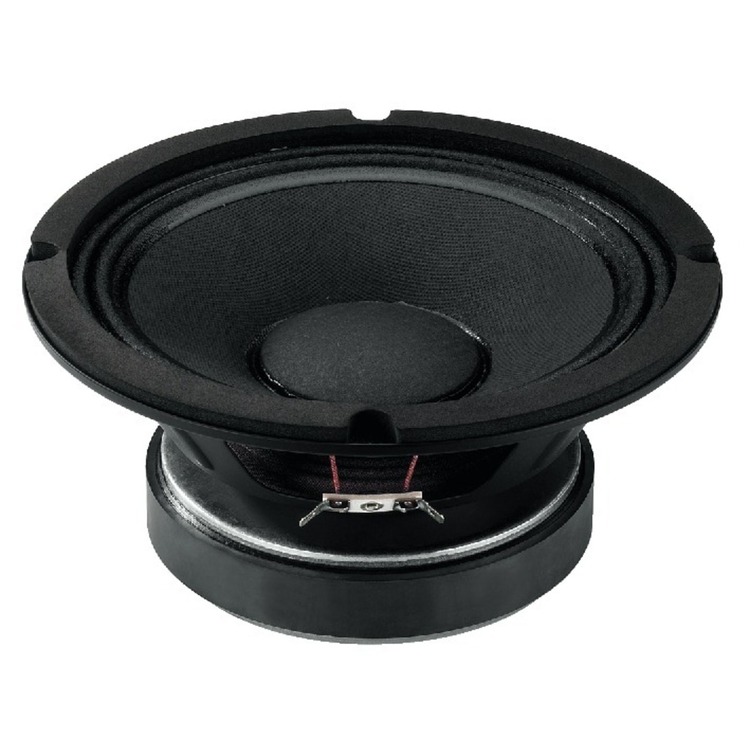

PA bass-midrange speaker, 300W MAX, 8 Ohm
Code: MZMSP8150PA
£61.88
(£51.57
ex VAT)
Quantity Pricing
2
-
4
£61.43
each
(£51.19
each ex VAT)
5
+
£60.97
each
(£50.81
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description
PA bass-midrange speaker, 300Wmax, 150Wrms, 8Ω
Good medium efficiency and wide bandwidth radiation for midrange applications.
IMG STAGE LINE product code: SP-8/150PA
Details
TECHNICAL DATA:
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 88Hz |
| Max. frequency range | f3-8,000Hz |
| Music power | 300WMAX |
| Power rating (P) | 150WRMS |
| SPL (1W/m) | 96dB |
| Suspension compl. (Cms) | 0.16mm/N |
| Moving mass (Mms) | 20g |
| Mech. Q factor (Qms) | 4.12 |
| Electr. Q factor (Qes) | 0.48 |
| Total Q factor (Qts) | 0.43 |
| Equivalent volume (Vas) | 12 l |
| DC resistance (Re) | 6.9Ω |
| Force factor (BxL) | 12.6Tm |
| Voice coil induct. (Le) | 0.6mH |
| Voice coil diameter | 50mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ±1.25mm |
| Eff. cone area (Sd) | 219cm2 |
| Magnet weight | 1.1kg |
| Weight | 3kg |
