Bass-midrange speaker, 150W Max, 8 Ohm
Code: MZMSPH8M
£93.66
(£78.05
ex VAT)
Quantity Pricing
3
+
£88.98
each
(£74.15
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description

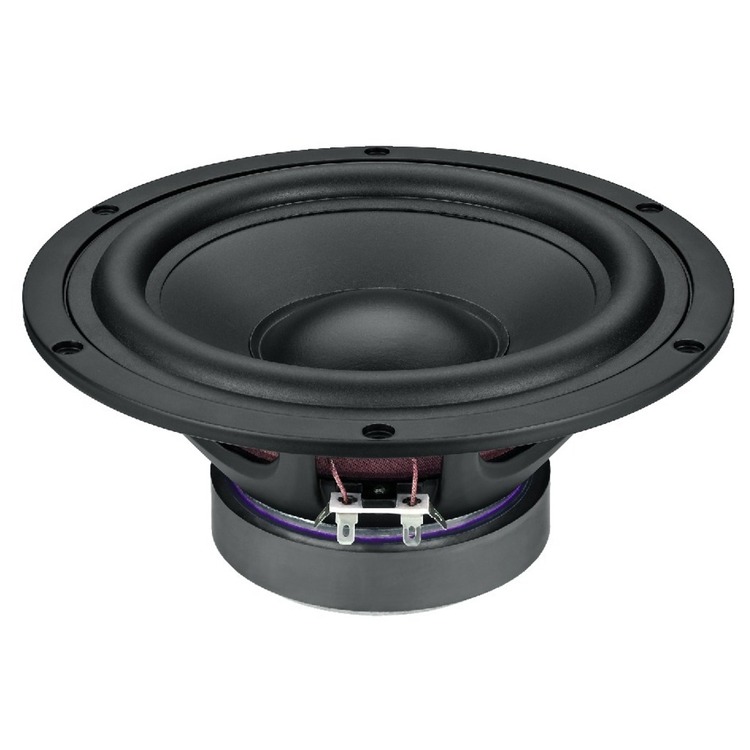

High-end bass-midrange speaker, 150Wmax, 100Wrms, 8 Ohm
- Hi-Fi bass speaker of excellent workmanship
- Dampened low-resonance polypropylene cone
- Robust diecast aluminium basket of an attractive design with a 6-hole screw connection
- Magnetic system with drilled pole core
- Very well-suited for bass-reflex and closed speaker systems
"Perfectly linear and well-balanced. Of neat workmanship, an excellent bass-midrange speaker for 2-way applications."
MONACOR product code: SPH-8M
Details
TECHNICAL DATA:
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 35Hz |
| Max. frequency range | f3-2,500Hz |
| Music power | 150WMAX |
| Power rating (P) | 100WRMS |
| SPL (1W/m) | 89dB |
| Suspension compl. (Cms) | 0.71mm/N |
| Moving mass (Mms) | 27g |
| Mech. Q factor (Qms) | 2.26 |
| Electr. Q factor (Qes) | 0.50 |
| Total Q factor (Qts) | 0.41 |
| Equivalent volume (Vas) | 44 l |
| DC resistance (Re) | 6.5Ω |
| Force factor (BxL) | 9.01Tm |
| Voice coil induct. (Le) | 0.78mH |
| Voice coil diameter (diameter) |
38mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ±4.5mm |
| Eff. cone area (Sd) | 240cm2 |
| Magnet weight | 790g |
| Weight | 2.1kg |
