Hi-Fi bass-midrange speaker, 120W MAX, 8 Ohm
Code: MZMSPH175HQ
£75.90
(£63.25
ex VAT)
Quantity Pricing
2
-
4
£75.34
each
(£62.78
each ex VAT)
5
+
£74.77
each
(£62.31
each ex VAT)
Choose quantity
Order now for dispatch on Tue 6th Jan.
Description

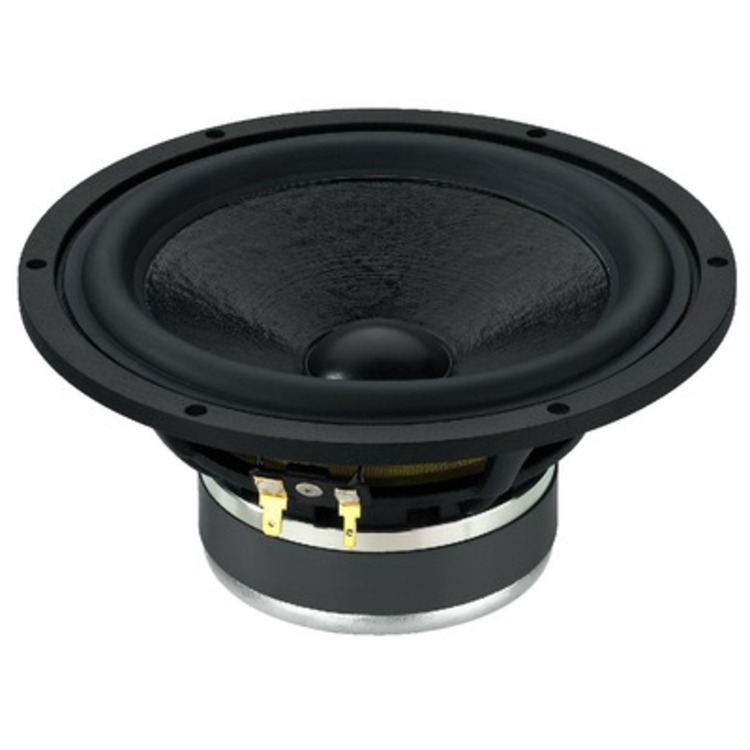

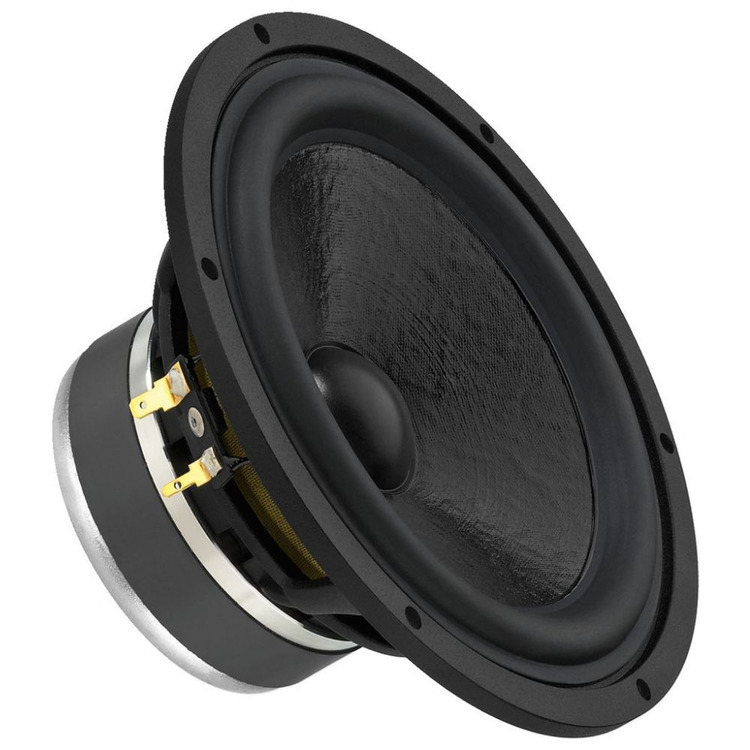

High quality 170mm (6 3/4") Hi-Fi bass-midrange speaker, 120WMAX, 70W MS, 8Ω
Excellent quality Hi-Fi speakers for highest sound requirements.
- 170mm (6 3/4") bass-midrange speaker, further development of the classic speaker SPH-176

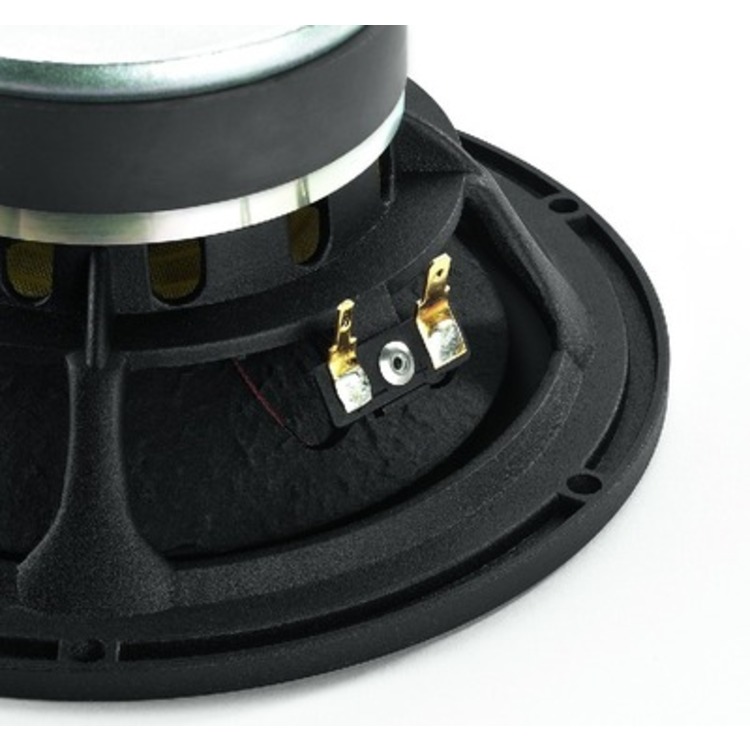

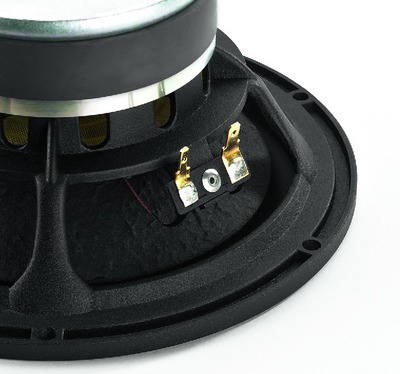

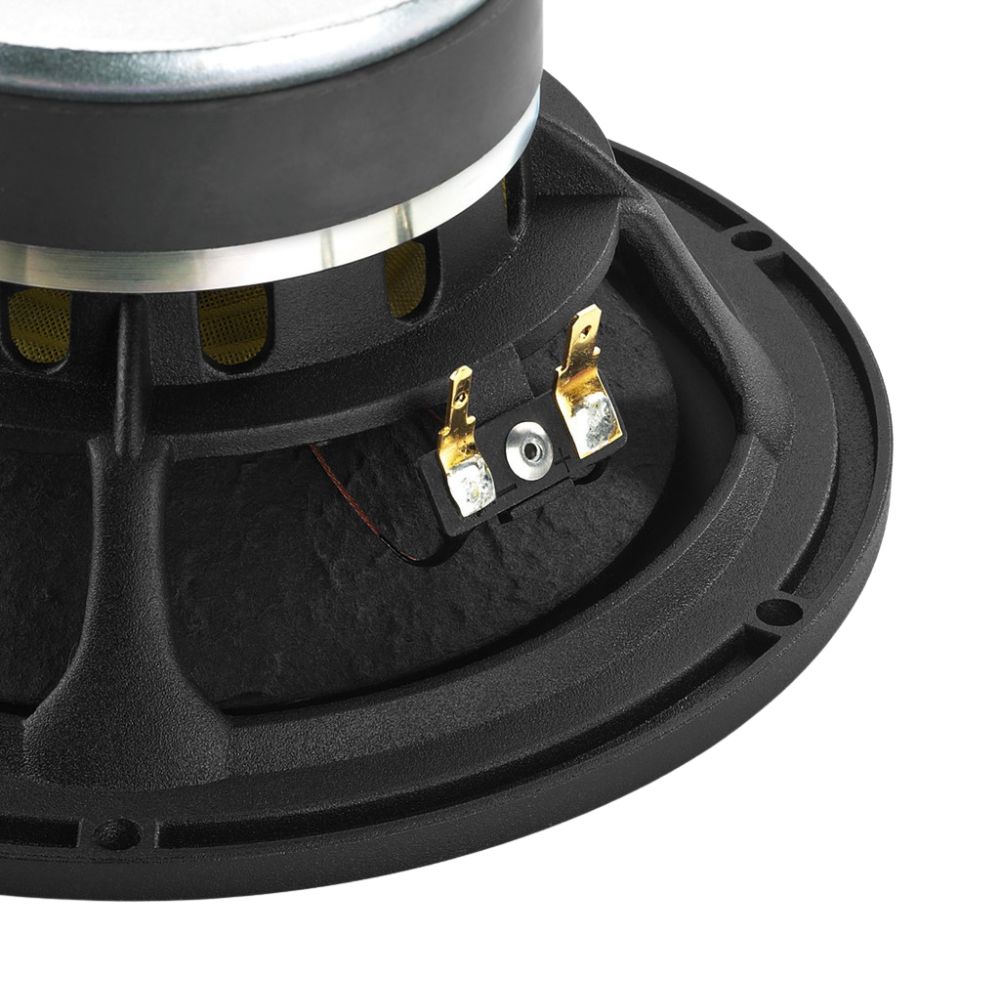

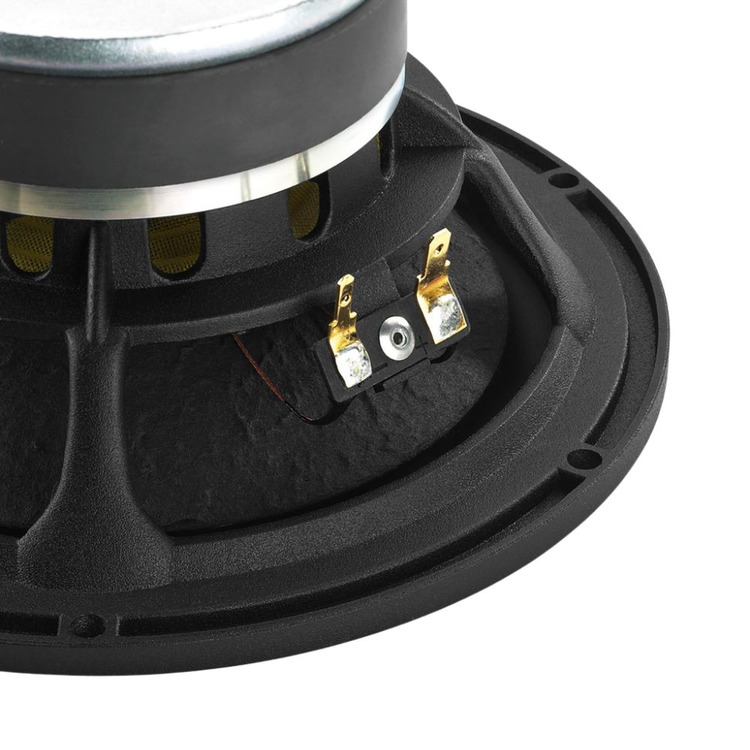

- Equipped with a diecast basket and rear-ventilated centering spider for minimum mechanical loss
- Scooped, air-dried, low-resonance paper cone and low-loss rubber surround

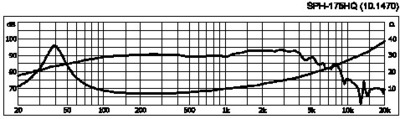

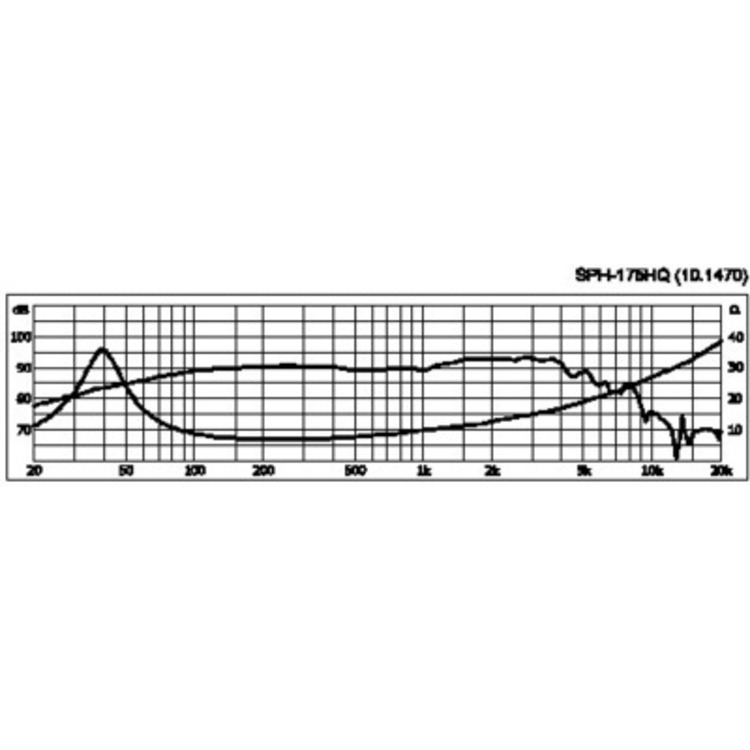

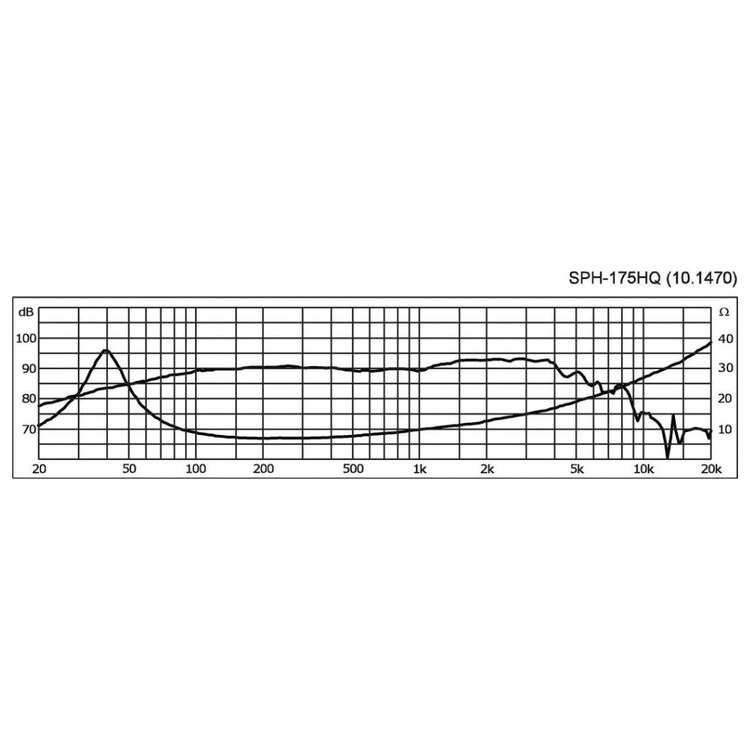

- Wide and linear transmission range
- Ideal parameters for bass-reflex systems
MONACOR product code: SPH-175HQ
Details
TECHNICAL DATA:
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 39Hz |

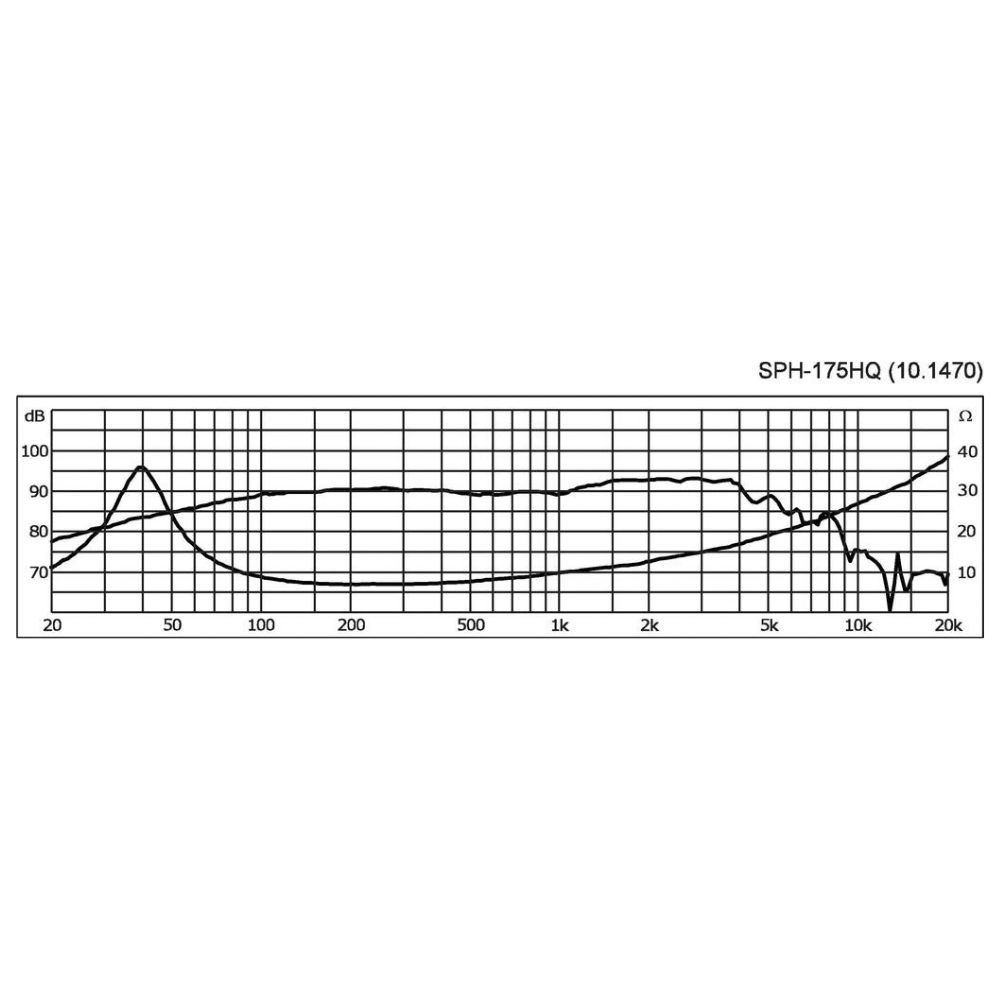

| Max. frequency range | f3-4,000Hz |
| Music power | 120WMAX |
| Power rating (P) | 70WRMS |
| SPL (1W/m) | 89dB |
| Suspension compl. (Cms) | 1.2mm/N |
| Moving mass (Mms) | 13.9g |
| Mech. Q factor (Qms) | 2.57 |
| Electr. Q factor (Qes) | 0.5 |
| Total Q factor (Qts) | 0.42 |
| Equivalent volume (Vas) | 32.95 l |
| DC resistance (Re) | 6.5Ω |
| Force factor (BxL) | 6.4Tm |
| Voice coil induct. (Le) (diameter) |
71mH |
| Voice coil (diameter) | 25mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 5.5mm |
| Eff. cone area (Sd) | 140cm2 |
| Magnet weight | 450g |
| Weight | 1.32kg |
