Hi-Fi bass-midrange speaker, 100W MAX, 8 Ohm
Code: MZMSPH145HQ
£64.24
(£53.53
ex VAT)
Quantity Pricing
2
-
4
£63.76
each
(£53.13
each ex VAT)
5
+
£63.28
each
(£52.73
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description

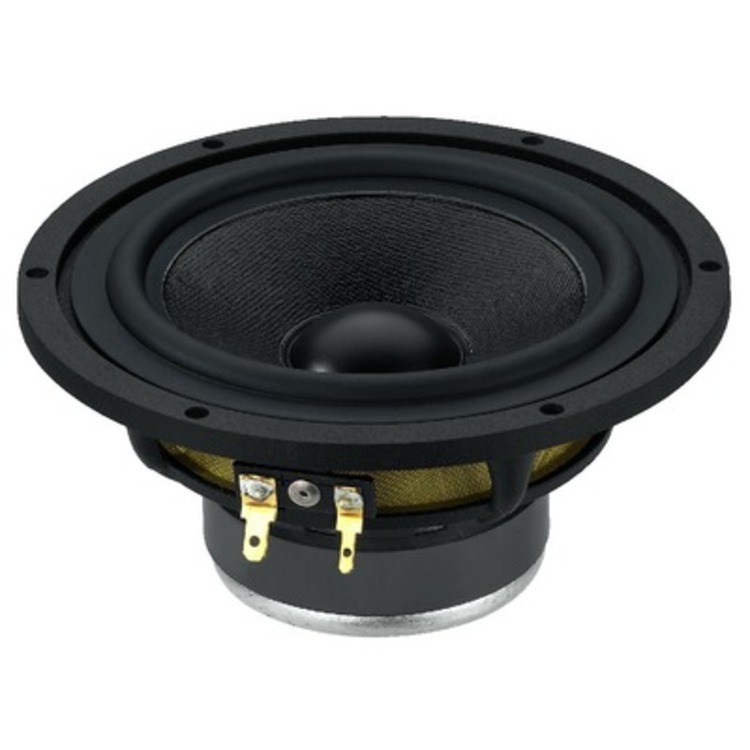

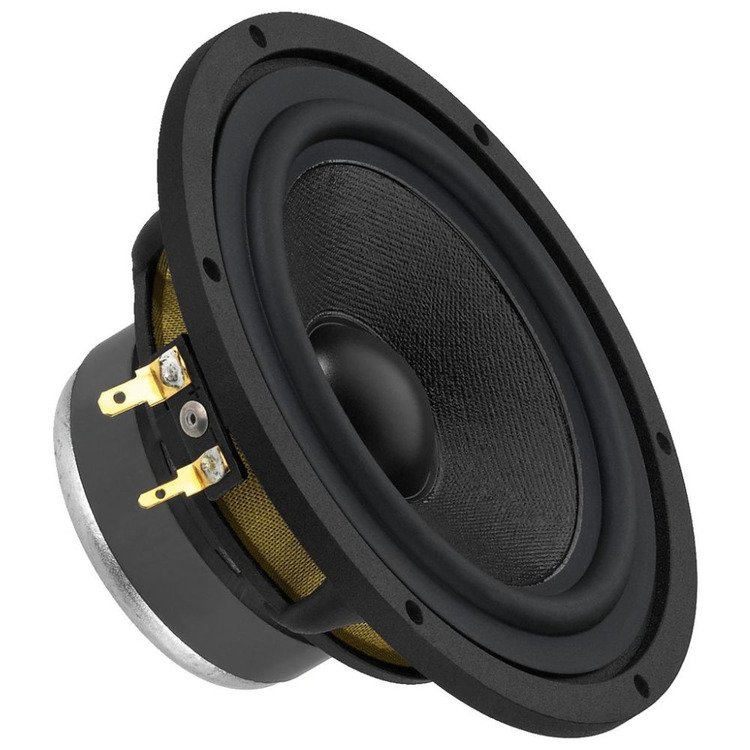

High quality 130mm (5.5") Hi-Fi bass-midrange speaker, 100WMAX, 50WRMS, 8Ω
Excellent quality Hi-Fi speakers for highest sound requirements.
- 130mm (5½") bass-midrange speaker, further development of the classic speaker SPH-130

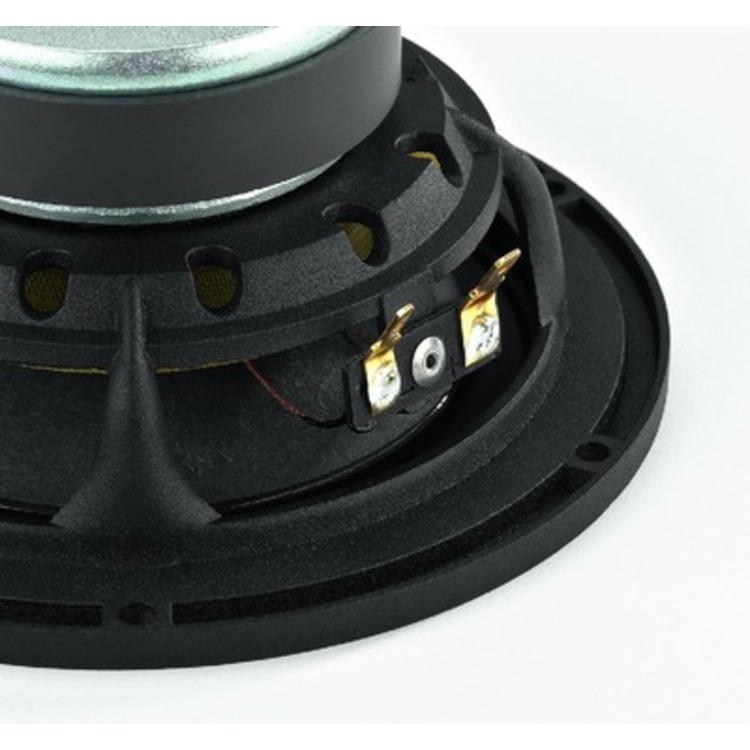

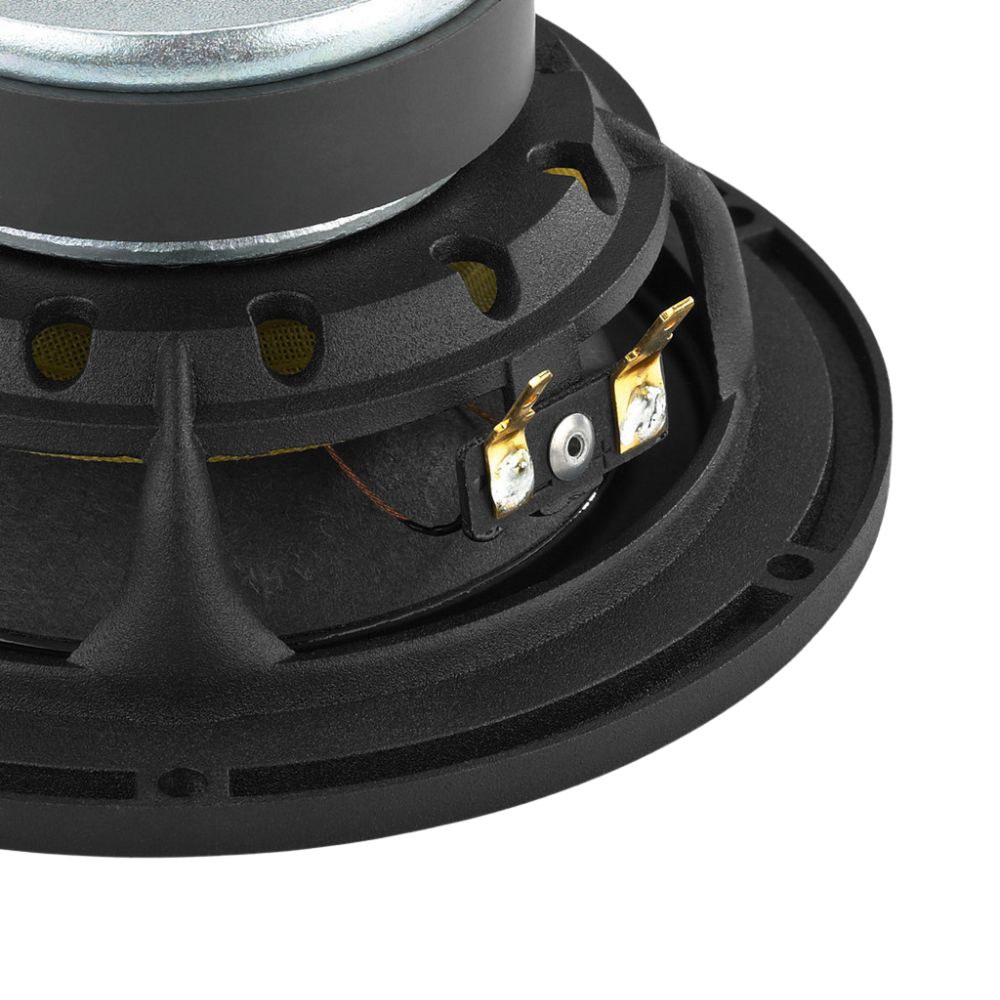

- Equipped with a diecast basket, rear-ventilated centering spider and drilled pole core for minimum mechanical loss
- High-quality, low-resonance paper cone and low-loss rubber surround
- Wide and linear transmission range
- Ideally suited in 2-way systems, D'Appolito arrangements and as a midrange system in large column speakers
MONACOR product code: SPH-145HQ
Details

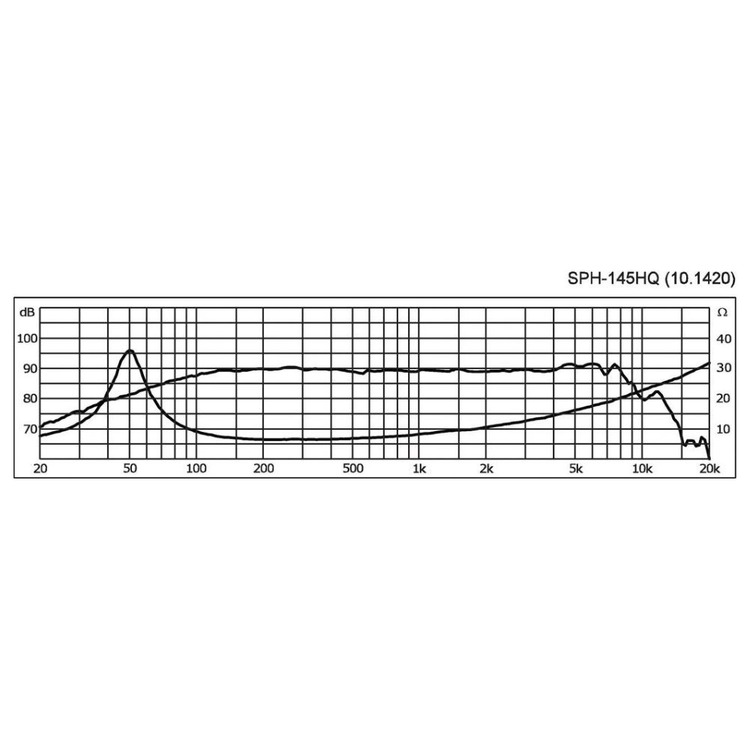

TECHNICAL DATA:
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 52Hz |
| Max. frequency range | f3-6,000Hz |
| Music power | 100WMAX |
| Power rating (P) | 50WRMS |
| SPL (1W/m) | 88dB |
| Suspension compl. (Cms) | 1.05mm/N |
| Moving mass (Mms) | 7.6g |
| Mech. Q factor (Qms) | 3.07 |
| Electr. Q factor (Qes) | 0.51 |
| Total Q factor (Qts) | 0.44 |
| Equivalent volume (Vas) | 9.4 l |
| DC resistance (Re) | 5.8Ω |
| Force factor (BxL) | 5.33Tm |
| Voice coil induct. (Le) | 0.53mH |
| Voice coil diameter | 25mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 3.5mm |
| Eff. cone area (Sd) | 80cm2 |
| Magnet weight | 230g |
| Weight | 0.73kg |
