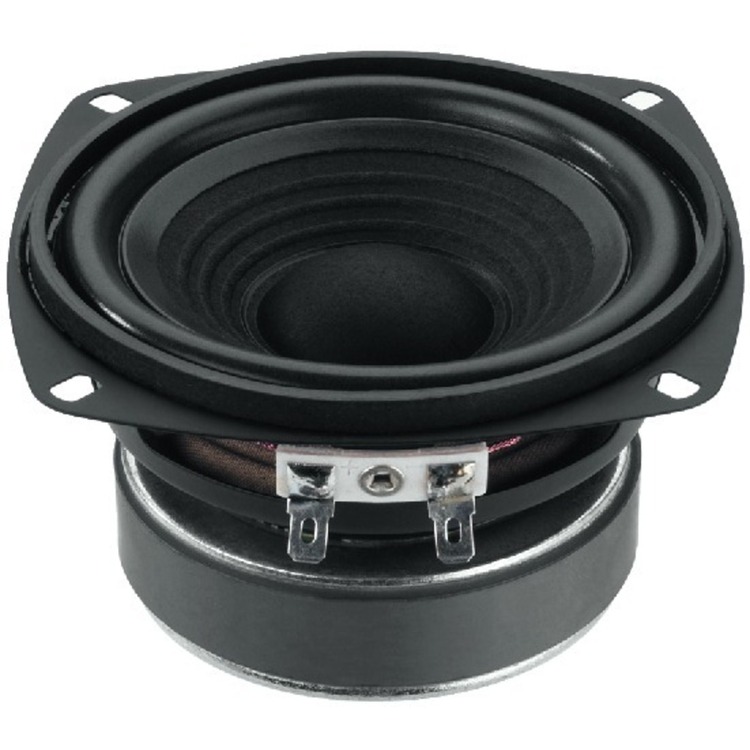

Hi-Fi bass-midrange speaker 60W MAX, 8 Ohm
Code: MZMSP608
£16.96
(£14.13
ex VAT)
Quantity Pricing
2
-
4
£16.34
each
(£13.62
each ex VAT)
5
+
£16.10
each
(£13.42
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 25th Feb.
Description
Hi-Fi bass-midrange speaker, 60W MAX, 30W RMS, 8?
- Drilled pole core
- Good frequency response linearity
- For small speaker systems in the Hi-Fi range
MONACOR product code: SP-60/8 ( SP 60/8)
Details
| TECHNICAL DATA: | |
| Impedance (Z) | 8 ? |
| Resonant frequency (fs) | 65 Hz |
| Max. frequency range | f3-8,000 Hz |
| Music power | 60 W MAX |
| Power rating (P) | 30 W RMS |
| SPL (1 W/m) | 90 dB |
| Suspension compl. (Cms) | 0.8 mm/N |
| Moving mass (Mms) | 4 g |
| Mech. Q factor (Qms) | 2.10 |
| Electr. Q factor (Qes) | 0.64 |
| Total Q factor (Qts) | 0.49 |
| Equivalent volume (Vas) | 6 l |
| DC resistance (Re) | 6.5 ? |
| Force factor (BxL) | 4.1 Tm |
| Voice coil induct. (Le) | 0.3 mH |
| Voice coil diameter | 25.5 mm |
| Voice coil former | aluminium |
| Linear excursion (X MAX) | ±2 mm |
| Eff. cone area (Sd) | 55 cm 2 |
| Magnet weight | 280 g |
| Weight | 0.9 kg |
