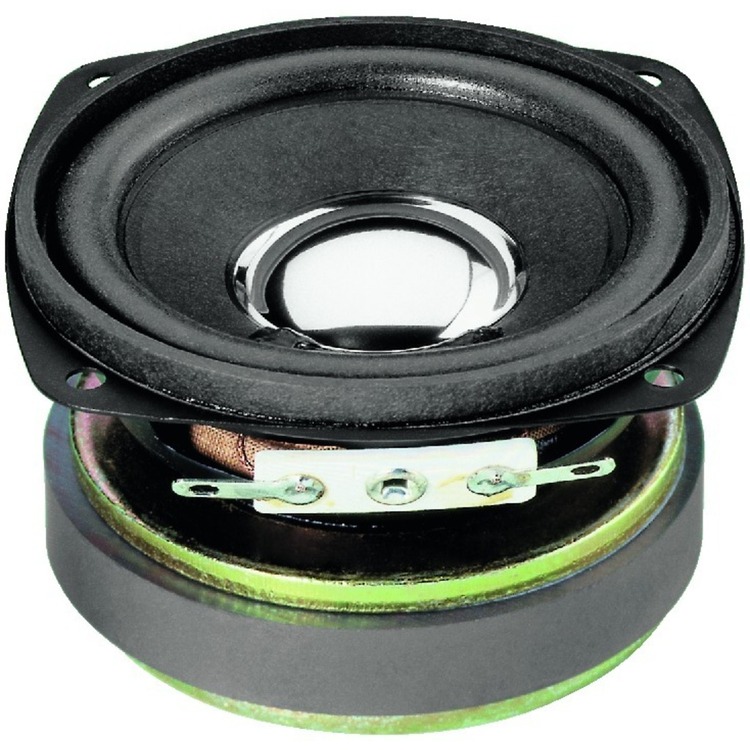

Hi-Fi bass-midrange speaker, 40W MAX, 8 Ohm
Code: MZMSP458
£17.71
(£14.76
ex VAT)
Quantity Pricing
2
-
4
£17.08
each
(£14.23
each ex VAT)
5
+
£16.82
each
(£14.02
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 25th Feb.
Description
Hi-Fi bass-midrange speaker, 40WMAX, 20WRMS, 8
Ω
Especially suitable for miniature speaker systems and column speakers.
MONACOR product code: SP-45/8
Details
| TECHNICAL DATA: | |
| Impedance (Z) | 8 Ω |
| Resonant frequency (fs) | 120 Hz |
| Max. frequency range | f3-16,000 Hz |
| Music power | 40 WMAX |
| Power rating (P) | 20 WRMS |
| SPL (1 W/m) | 88 dB |
| Suspension compl. (Cms) | 1.1 mm/N |
| Moving mass (Mms) | 1.6 g |
| Mech. Q factor (Qms) | 2.82 |
| Electr. Q factor (Qes) | 0.68 |
| Total Q factor (Qts) | 0.55 |
| Equivalent volume (Vas) | 1.5 l |
| DC resistance (Re) | 6.5 Ω |
| Force factor (BxL) | 3.4 Tm |
| Voice coil induct. (Le) | 0.15 mH |
| Voice coil diameter | 19 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ±0.75 mm |
| Eff. cone area (Sd) | 31 cm2 |
| Magnet weight | 150 g |
| Weight | 0.45 kg |
