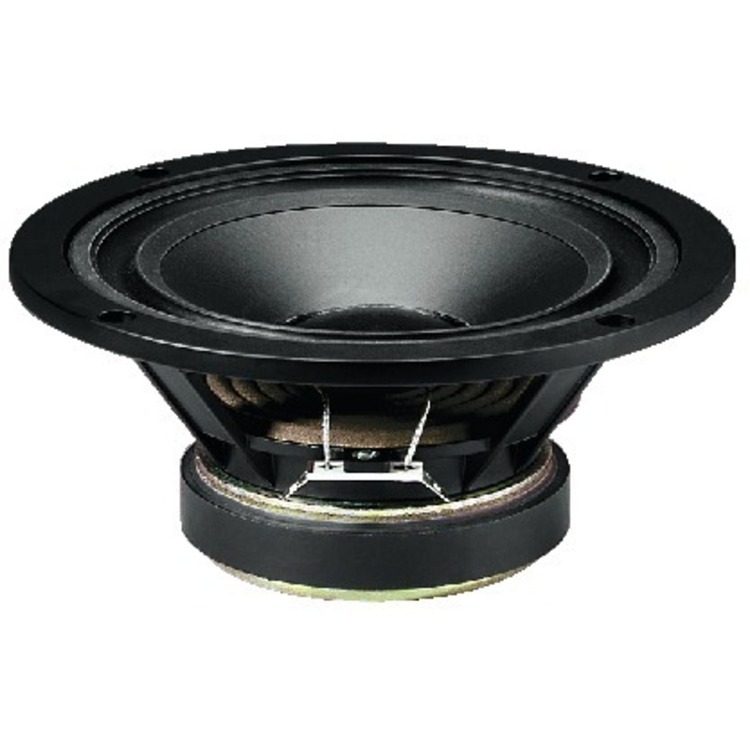

Hi-fi bass-midrange speaker, 80W MAX, 8 Ohm
Code: MZMSPH170
£89.92
(£74.93
ex VAT)
Quantity Pricing
3
+
£85.42
each
(£71.18
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description
Hi-Fi bass-midrange speaker, 80WMAX, 50WRMS, 8 Ohm
- Very high quality speaker with extensive equipment
- Round aluminium diecast basket with recessed screw head holes
- Inverse rubber surround
- Drilled pole core
- Excellent cone dampening
- Exceptionally deep bass reproduction for any bass and bass-midrange application
Klang+Ton
"It is almost unbelievable that this speaker is available at such a favourable price!"
NUMBER ONE product code: SPH-170
Details
TECHNICAL DATA:
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 38Hz |
| Max. frequency range | f3-5,000Hz |
| Music power | 80WMAX |
| Power rating (P) | 50WRMS |
| SPL (1W/m) | 90dB |
| Suspension compl. (Cms) | 1.43mm/N |
| Moving mass (Mms) | 12.5g |
| Mech. Q factor (Qms) | 2.38 |
| Electr. Q factor (Qes) | 0.55 |
| Total Q factor (Qts) | 0.44 |
| Equivalent volume (Vas) | 37 l |
| DC resistance (Re) | 6.2Ω |
| Force factor (BxL) | 5.9Tm |
| Voice coil induct. (Le) | 0.45mH |
| Voice coil diameter | 25mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ±3mm |
| Eff. cone area (Sd) | 137cm2 |
| Magnet weight | 370 g |
| Weight | 1.32kg |
