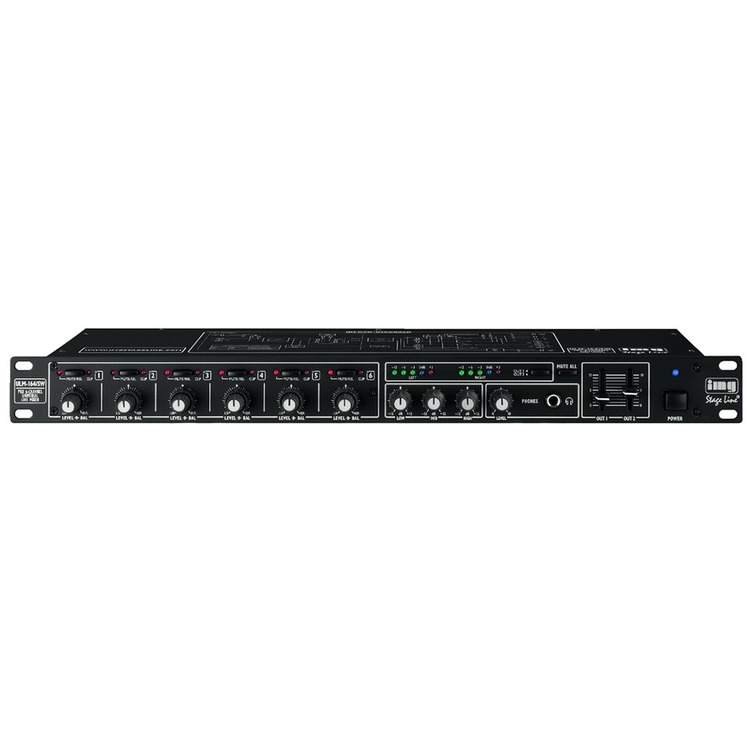

Universal 6 channel audio line mixer
Code: MZMULM164SW
£195.07
(£162.56
ex VAT)
Quantity Pricing
2
+
£192.00
each
(£160.00
each ex VAT)
Choose quantity
Order now for dispatch on Tue 6th Jan.
Description
Universal 6 channel audio line mixer with:
- 6 stereo inputs/mono inputs
- 2 stereo outputs, independent of each other (master 1 via RCA and 6.3mm jack), 1 mono output
- 3-way equalizer
- LED VU meter, switchable for both outputs
- Clip LED for each channel
- Balance controls with centre click for the stereo input channels
- Extended muting function
- Adjustable headphone output
- 482mm (19") rack installation, 1RS
IMG STAGE LINE product code: ULM-164/SW
Details
| Line input, stereo | 150mV/50k Ohm |
| Line input, mono | 150mV/25k Ohm
|
| Master output, stereo | 1V/600 Ohm
|
| Master output, mono | 2V/600 Ohm
|
| Headphones, stereo | 8 Ohm
|
| Frequency range | 20-20,000Hz |
| THD | 0.05% |
| S/N ratio | 69dB, unweighted |
| Equalizer, bass | ±12dB/80Hz |
| Equalizer, midrange | ±12dB/1kHz |
| Equalizer, treble | ±12dB/10kHz |
| Power supply | 230V˜/50Hz/10VA |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 482x48x175mm, 1RS |
| Weight | 2.3kg |
| Line input, stereo | 6 x RCA L/R |
| Line input, mono | 6 x 6.3mm jack, unbal. |
| Master output, stereo | 2 x RCA (1 x 6.3mm) L/R |
| Master output, mono | 1 x 6.3mm jack |
| Headphones | 1 x 6.3mm jack |
Help Centre
Reviews
Related Products
-

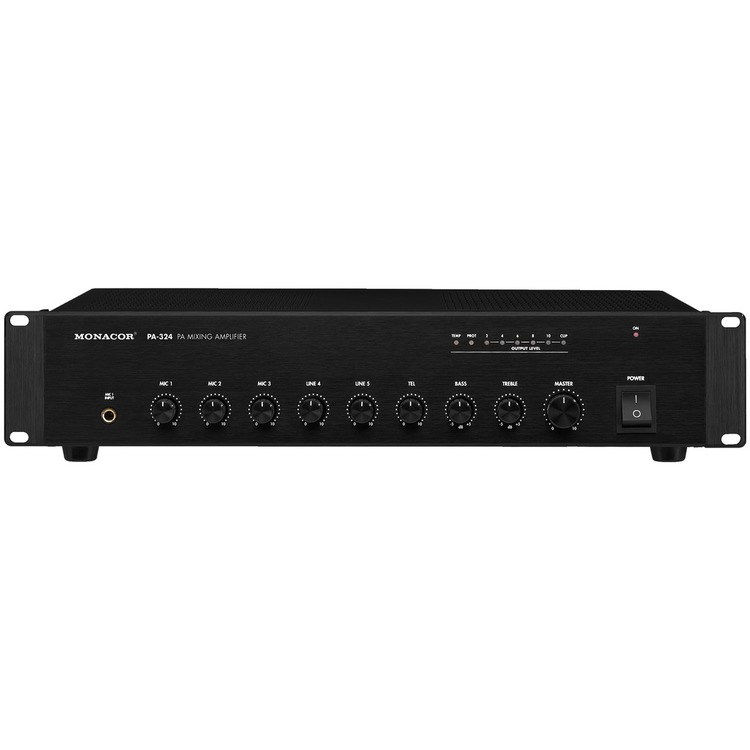

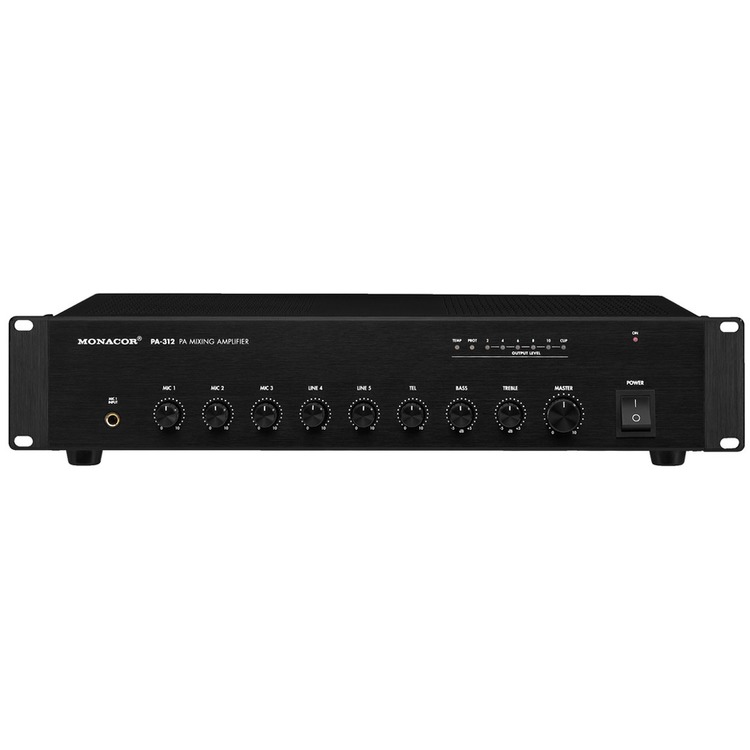

3 microphone input PA Mixing Amplifier
£500.77 (£417.31 ex VAT)Pa mixing amplifier with 3 microphone inputs, one of which...
-

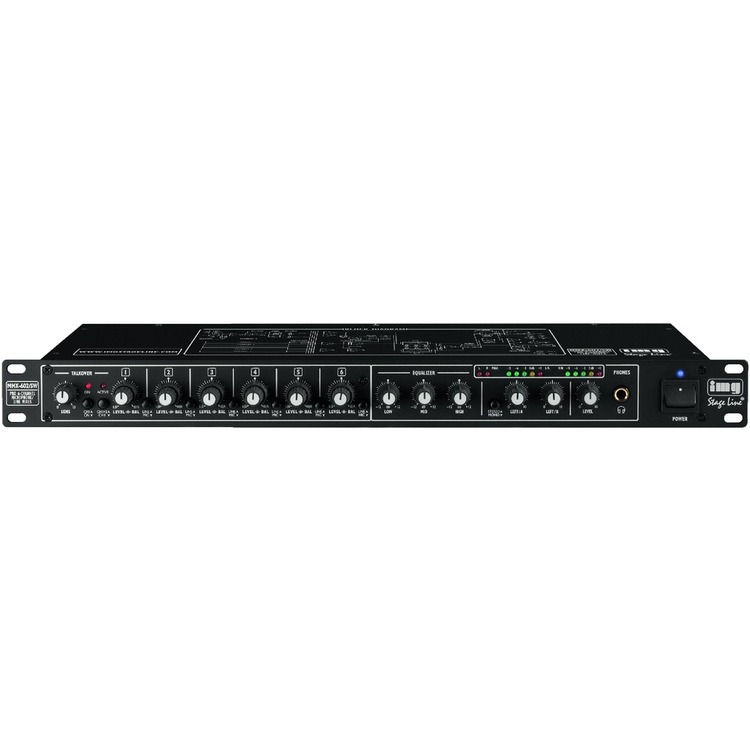

6 channel Microphone rack mount line mixer
£379.48 (£316.23 ex VAT)6 channel microphone rack mount line mixer
-

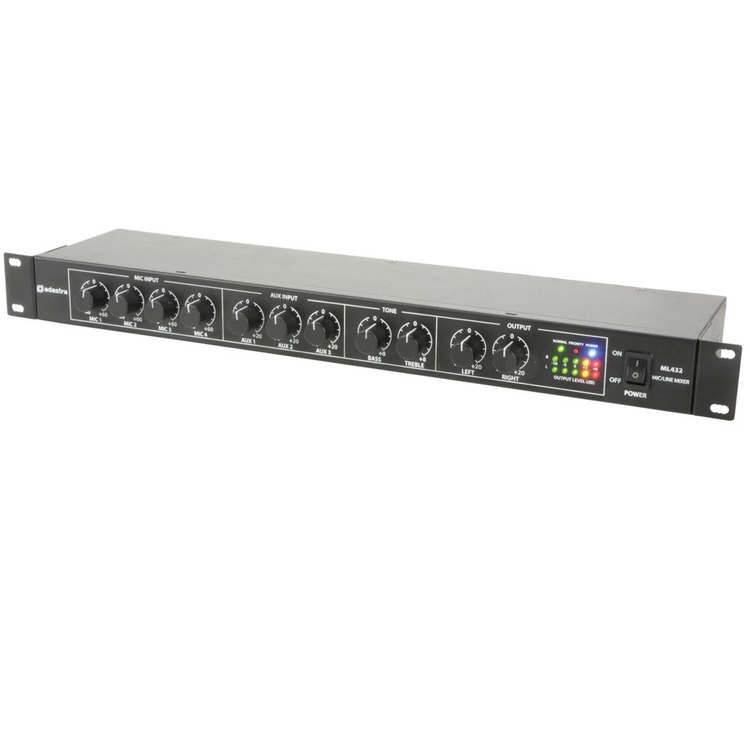

Rack-mountable 1U mixer with 4 mic i/p & 3 aux i/p
