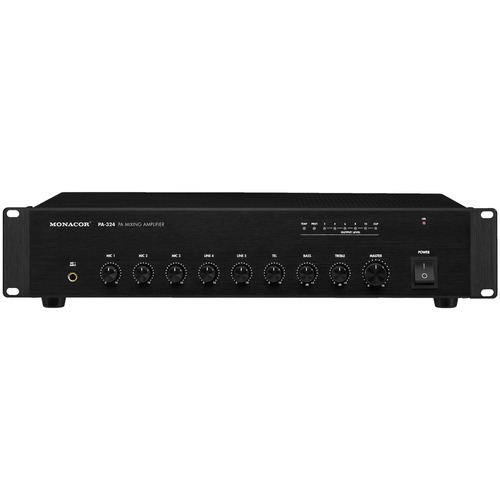

3 microphone input PA Mixing Amplifier
Code: MZMPA324
£500.77
(£417.31
ex VAT)
Quantity Pricing
2
+
£492.89
each
(£410.74
each ex VAT)
Choose quantity
Order now for dispatch on Fri 19th Dec.
Description
Mono PA mixing amplifier
- 1 x 240 W
- 3 microphone inputs, one of which is a balanced input
- Mic 1 with priority circuit and adjustable automatic talkover
- 2 aux inputs
- 1 telephone input for telephone systems with audio output
- Speaker outputs via screw terminals
- 1 line output
- Input and output level controls
- 2-way tone control for the output
- 48 V phantom power for channel 1, can be switched on additionally
- 482 mm (19") rack installation with supplied mounting brackets
MONACOR product code: PA-324
Details
| Output power | 240 W, 340 W |
| Mic input | 5 mV/600
|
| Line input | - |
| Aux input | 350 mV/10 k |
| Telephone input | 1 V/10 k |
| Speaker output | 4-16, 70/100 V |
| Frequency range | 50-16,000 Hz |
| Equalizer bass | ±10 dB/100 Hz |
| Equalizer, treble | ±10 dB/10 kHz |
| S/N ratio | 66 dB (mic)
80 dB (aux) |
| THD | < 0.5 % |
| Power supply | 230 V/50 Hz/740 VA |
| Dimensions | 430x88x380 mm, 2 RS |
| Weight | 16.6 kg |
| Inputs | 1 x 6.3 mm/XLR (combo)
1 x 6.3 mm jack (mic 1) 2 x 6.3 mm jack (mic 2-3) 2 x RCA L/R (aux 1-2) screw terminals (telephone) |
| Outputs | 1 x RCA L/R (line out) |
