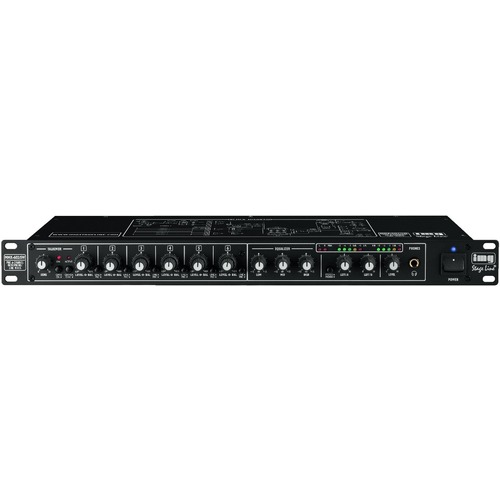

6 channel Microphone rack mount line mixer
Code: MZMMMX602SW
£379.48
(£316.23
ex VAT)
Quantity Pricing
2
+
£373.50
each
(£311.25
each ex VAT)
Choose quantity
Order now for dispatch on Wed 5th Nov.
Description
6 Channel Microphone line mixer,
- 6 stereo line inputs, 6 balanced mono microphone inputs, switchable
- Adjustable automatic talkover (-12dB), switchable for channel 1 or channels 1+2
- Balance control for each stereo input channel
- 3-way equalizer
- 12V phantom power can be switched on additionally
- LED VU meter, peak LED
- Master output and record output
- Output can be switched stereo/mono
- Adjustable headphone output
- 482mm (19") rack installation, 1RS
IMG STAGE LINE product code: MMX-602/SW
Details
| Line input, stereo | 100mV/10kΩ |
| Microphone input | 1mV/6.6kΩ |
| Master output, stereo | 1V/600Ω |
| Record output, stereo | 310mV/600Ω |
| Headphones, stereo | > 8Ω |
| Frequency range | 20-20,000Hz |
| THD | 0.1% |
| S/N ratio | 62dB, unweighted |
| Equalizer, bass | ±12dB/50Hz |
| Equalizer, midrange | ±12dB/1kHz |
| Equalizer, treble | ±12dB/10kHz |
| Power supply | 230V˜/50Hz/12VA |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 482x47x208mm, 1RS |
| Weight | 2.8kg |
| Line input, stereo | 6 x RCA L/R |
| Microphone input | 6 x XLR, bal. |
| Master output, stereo | 1 x RCA L/R, 1 x XLR L/R, bal. |
| Record output, stereo | 1 x RCA L/R |
| Headphones | 1 x 6.3mm jack |
