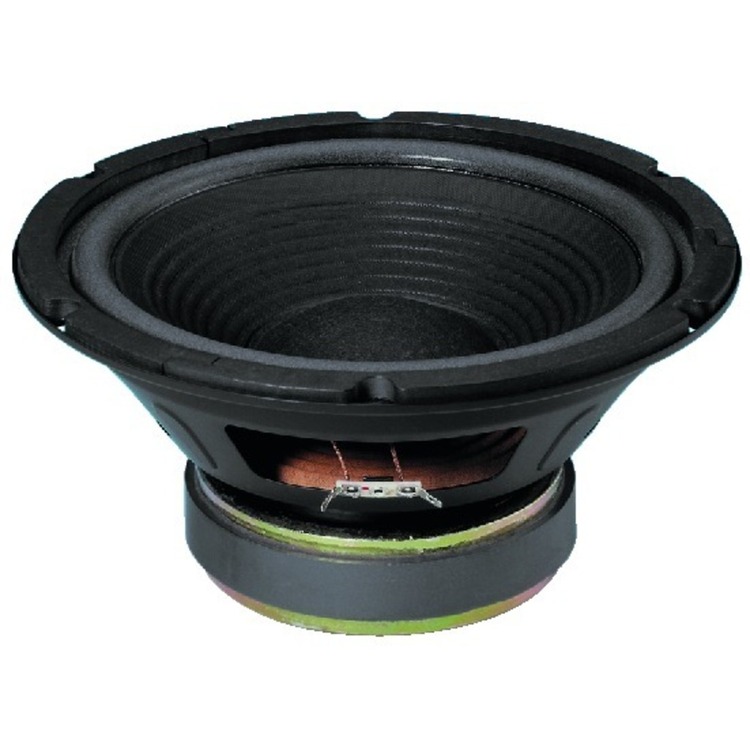

PA bass speaker and subwoofer, 25cm, 500W MAX, 8 Ohm
Code: MZMSP10250PRO
£121.80
(£101.50
ex VAT)
Quantity Pricing
3
+
£115.72
each
(£96.43
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description
PA bass speaker and subwoofer, 500WMAX, 250WRMS, 8Ω, 25cm (10")
This PA bass speaker is of long excursion and high power capability, with diecast aluminium basket, rear-ventilated centering spider and ventilated drive system for a high thermal stability. It features ideal parameters for a very good bass reproduction in compact bass-reflex cabinets.
- 25cm (10") bass speaker and subwoofer of high power capability
- Heat-resistant voice coil and ventilated drive system
- Drive configuration of very long excursion for a deep bass reproduction of high volumes
- Progressive cone suspension for a high operating reliability
- Robust diecast aluminium basket
- Ideally suited for compact subwoofers and 2-way systems with a crossover frequency of approx. 1,500 Hz to the tweeter
IMG STAGE LINE product code: SP-10/250PRO
Details
TECHNICAL DATA:
| Impedance (Z) | 8 Ω |
| Resonant frequency (fs) | 47 Hz |
| Max. frequency range | f3-2,000 Hz |
| Music power | 500 WMAX |
| Power rating (P) | 250 WRMS |
| SPL (1W/m) | 94 dB |
| Suspension compl. (Cms) | 0.20 mm/N |
| Moving mass (Mms) | 51 g |
| Mech. Q factor (Qms) | 6.16 |
| Electr. Q factor (Qes) | 0.35 |
| Total Q factor (Qts) | 0.33 |
| Equivalent volume (Vas) | 40.7 l |
| DC resistance (Re) | 7.1 Ω |
| Force factor (BxL) | 18.3 |
| Voice coil induct. (Le) | 0.83 mH |
| Voice coil diameter | dia 75 mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ±7 mm |
| Eff. cone area (Sd) | 380 cm2 |
| Magnet weight | 2 kg |
| Weight | 5.2 kg |
