PA bass speaker, 26cm, 200W MAX, 8 Ohm
Code: MZMSP250P
£79.60
(£66.33
ex VAT)
Quantity Pricing
2
-
4
£79.00
each
(£65.83
each ex VAT)
5
+
£78.41
each
(£65.34
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description

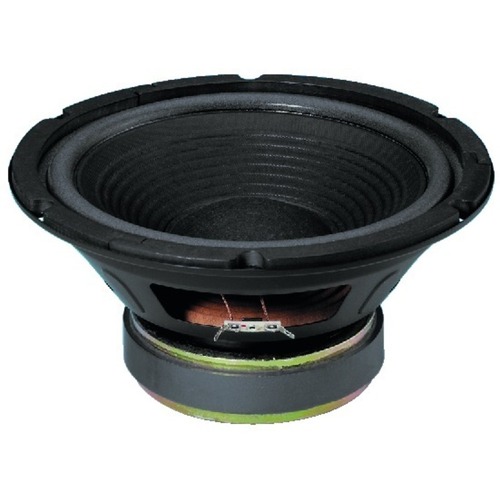

PA bass speaker, 200WMAX, 100WRMS, 8Ω, 26cm (10")
With drilled pole core and great linear excursion for powerful bass reproductions.
MONACOR product code: SP-250P
Details
TECHNICAL DATA:
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 33Hz |
| Max. frequency range | f3-4,000Hz |
| Music power | 200WMAX |
| Power rating (P) | 100WRMS |
| SPL (1W/m) | 94dB |
| Suspension compl. (Cms) | 0.69mm/N |
| Moving mass (Mms) | 33g |
| Mech. Q factor (Qms) | 2.33 |
| Electr. Q factor (Qes) | 0.38 |
| Total Q factor (Qts) | 0.33 |
| Equivalent volume (Vas) | 115 l |
| DC resistance (Re) | 6.5Ω |
| Force factor (BxL) | 10.8Tm |
| Voice coil induct. (Le) | 1.2mH |
| Voice coil diameter | 50mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ±3.5mm |
| Eff. cone area (Sd) | 346cm2 |
| Magnet weight | 1.1kg |
| Weight | 3.9kg |
