Hi-Fi bass speaker, 120W MAX, 8 Ohm
Code: MZMSPH6M
£62.77
(£52.31
ex VAT)
Quantity Pricing
2
-
4
£62.32
each
(£51.93
each ex VAT)
5
+
£61.85
each
(£51.54
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description

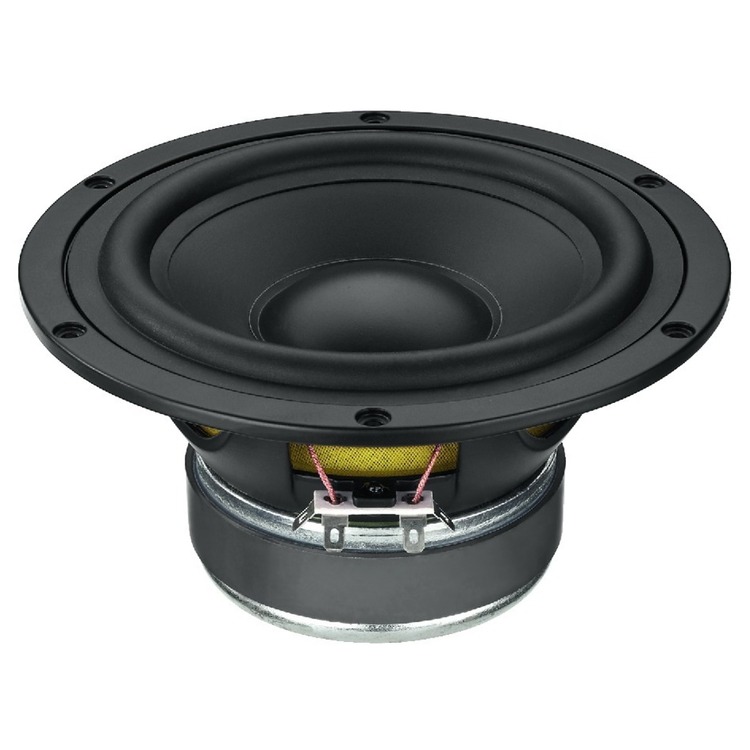

Hi-Fi bass speaker, 120WMAX, 60WRMS, 8Ω
- High-quality Hi-Fi bass speaker of long excursion
- Dampened low-resonance polypropylene cone
- Robust diecast aluminium basket of an attractive design with a 6-hole screw connection
- Magnetic system with drilled pole core and protruding rear pole plate
- Very well-suited for bass-reflex speaker systems
"The 17 cm polypropylene speaker provides a regular and very accurate signal reproduction." (Together with DT-350NF in the Klang+Ton speaker building concept GT6)
HOBBY HiFi - 02/2012
"Amazing bass speaker - neat workmanship, clever dimensioning. Creates an amazingly deep bass reproduction from a petite bookshelf speaker format (to 36 Hz)."
MONACOR product code: SPH-6M
Details
TECHNICAL DATA:
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 39Hz |
| Max. frequency range | f3-3,000Hz |
| Music power | 120WMAX |
| Power rating (P) | 60WRMS |
| SPL (1W/m) | 88dB |
| Suspension compl. (Cms) | 0.78mm/N |
| Moving mass (Mms) | 20g |
| Mech. Q factor (Qms) | 2.26 |
| Electr. Q factor (Qes) | 0.35 |
| Total Q factor (Qts) | 0.30 |
| Equivalent volume (Vas) | 17.6 l |
| DC resistance (Re) | 6.33Ω |
| Force factor (BxL) | 9.68Tm |
| Voice coil induct. (Le) | 0.82mH |
| Voice coil (diameter) | 37mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 4mm |
| Eff. cone area (Sd) | 127cm2 |
| Magnet weight | 630g |
| Weight | 1.9kg |
