High-end bass speaker, 150W MAX, 8 Ohm
Code: MZMSPH225C
£141.96
(£118.30
ex VAT)
Quantity Pricing
3
+
£134.87
each
(£112.39
each ex VAT)
-
VAT
Out of Stock
Please enter your email address below and we will notify you once this item is back in stock.
Description

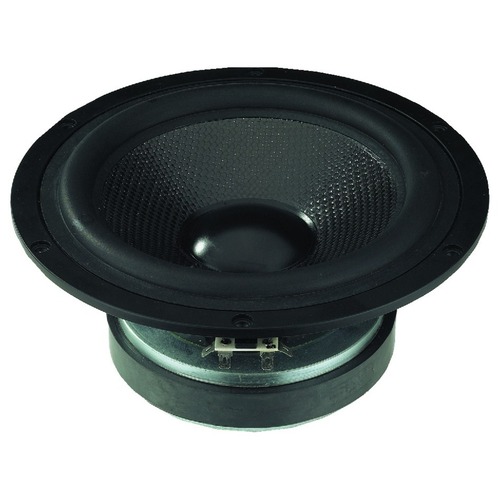

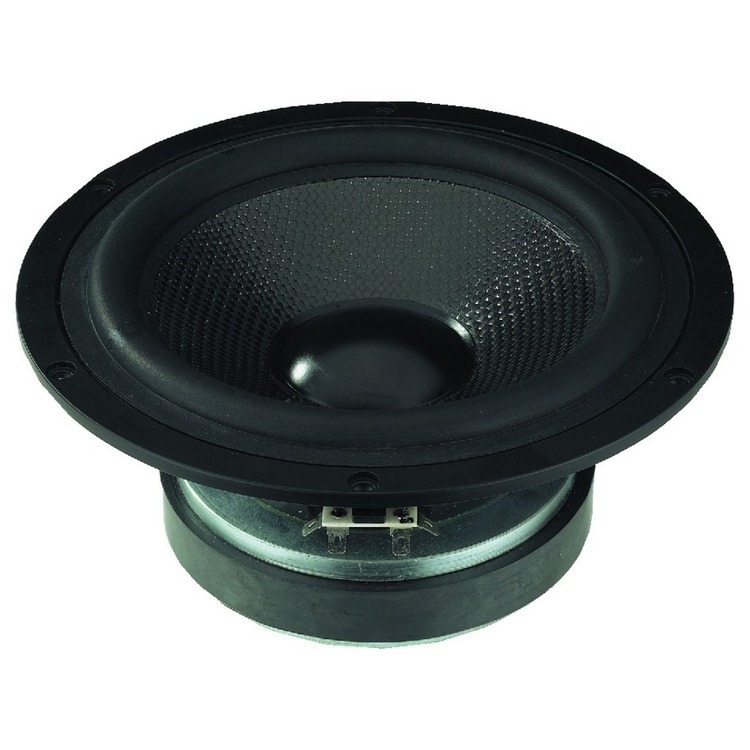

High-end bass speaker, 150WMAX, 120WRMS, 8Ω
High quality bass speaker with perfect manufacturing quality and elegant design consisting of an aluminium basket, carbon fibre cone and especially long excursion.
This speaker produces an impulsive and deep bass reproduction from a partly surprisingly small size.
- High-rigidity cone
- Extra long excursion
- Small loss and low distortion
- For an impressive fundamental bass in any high-quality Hi-Fi combination and smaller subwoofers
- Also possible as a bass-midrange speaker in 2-way combinations
- Requiring extra small cabinets
NUMBER ONE product code: SPH-225C
Details
TECHNICAL DATA:
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 39Hz |
| Max. frequency range | f3-3,000Hz |
| Music power | 150WMAX |
| Power rating (P) | 100WRMS |
| SPL (1W/m) | 90dB |
| Suspension compl. (Cms) | 0.43mm/N |
| Moving mass (Mms) | 36.6g |
| Mech. Q factor (Qms) | 4.94 |
| Electr. Q factor (Qes) | 0.31 |
| Total Q factor (Qts) | 0.30 |
| Equivalent volume (Vas) | 24 l |
| DC resistance (Re) | 5.9Ω |
| Force factor (BxL) | 13.17Tm |
| Voice coil induct. (Le) | 0.8mH |
| Voice coil diameter | 50mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ±6mm |
| Eff. cone area (Sd) | 201cm2 |
| Magnet weight | 1.1kg |
| Weight | 3.5kg |
