High quality Hi-Fi bass speaker, 180W MAX, 8 Ohm
Code: MZMSPH220HQ
Quantity Pricing
-
VAT
Choose quantity
Order now for dispatch on Wed 25th Feb.
Description

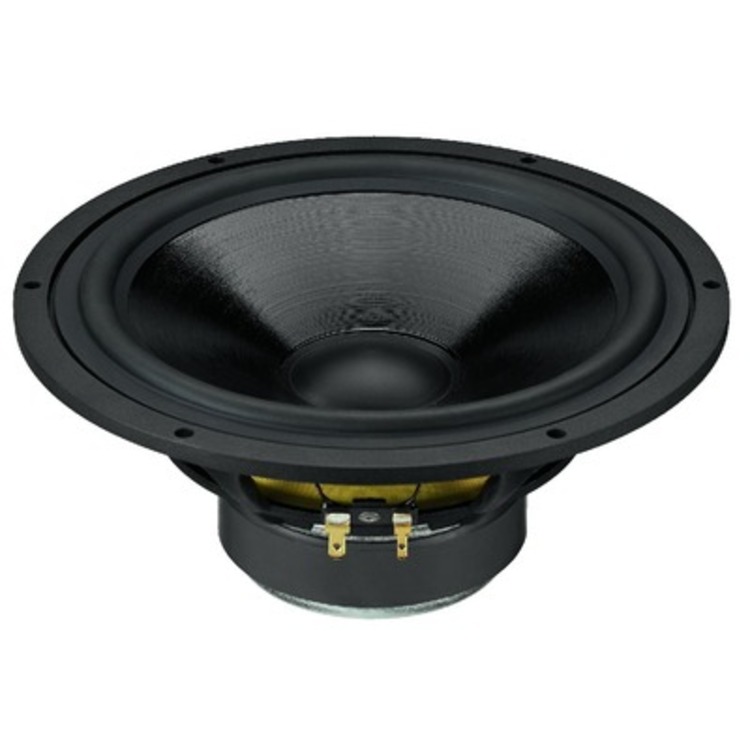

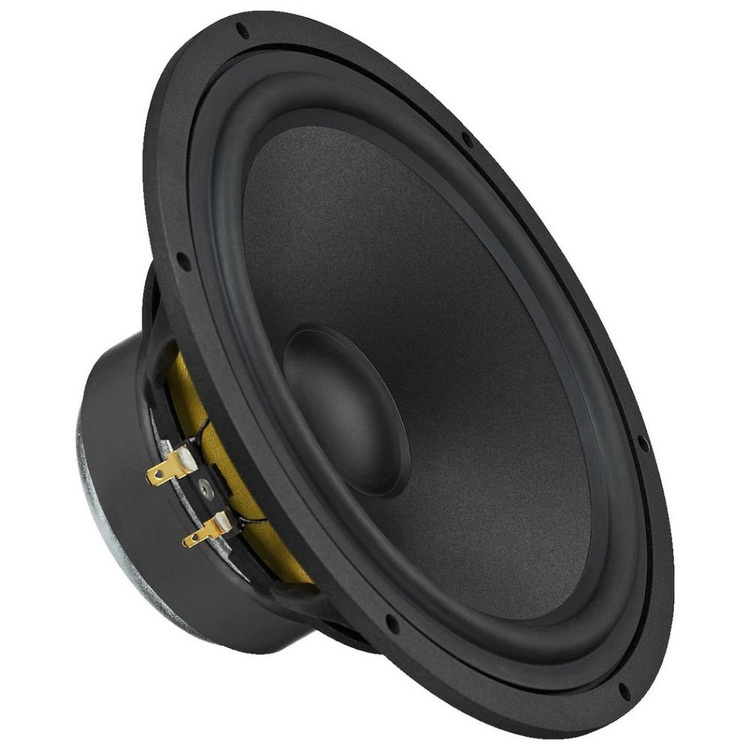

High-quality Hi-Fi bass speaker, 180WMAX, 100WRMS, 8Ω
This high-quality Hi-Fi bass speaker is made with an innovative diecast aluminium basket, rear-ventilated centering spider and optimised parameters.

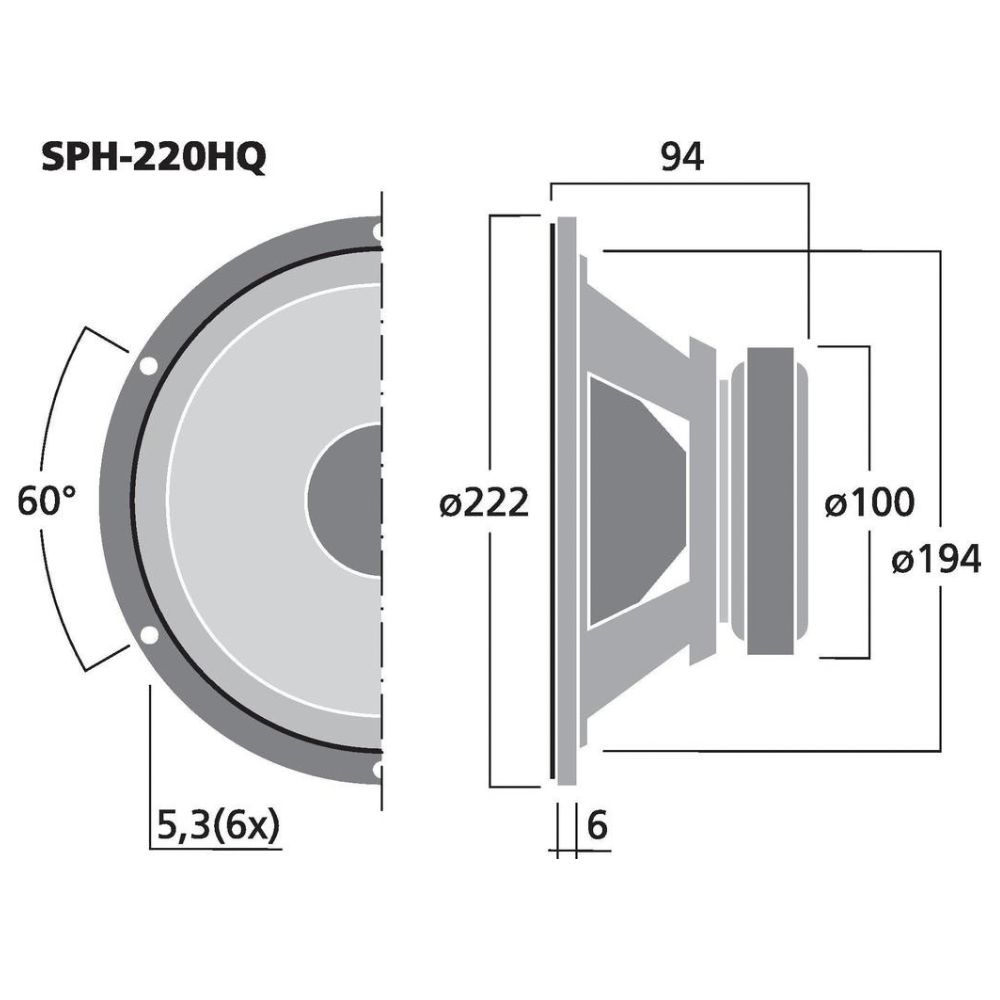

- 200mm (8") bass-midrange speaker, further development of the classic speaker SPH-212

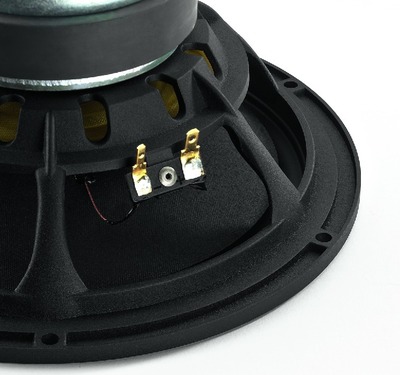

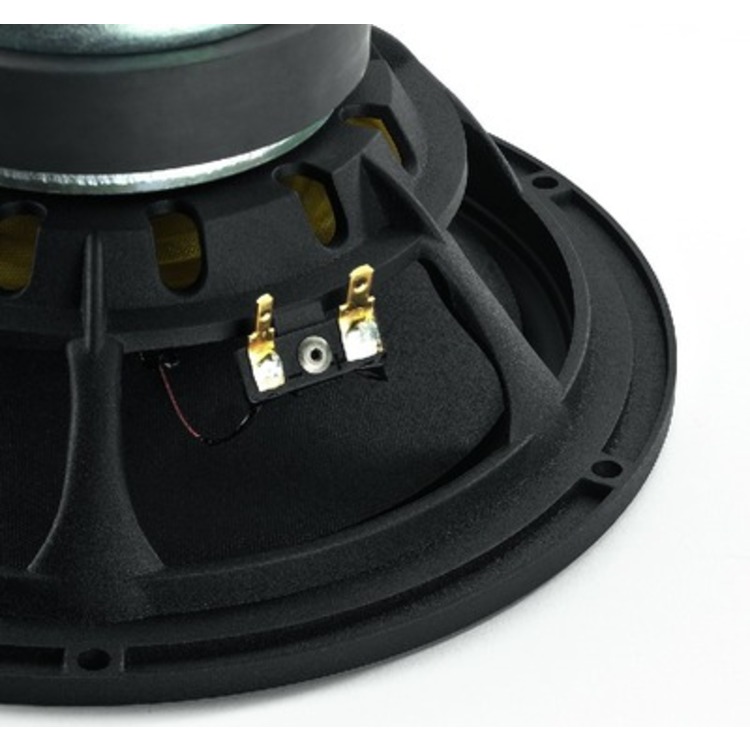

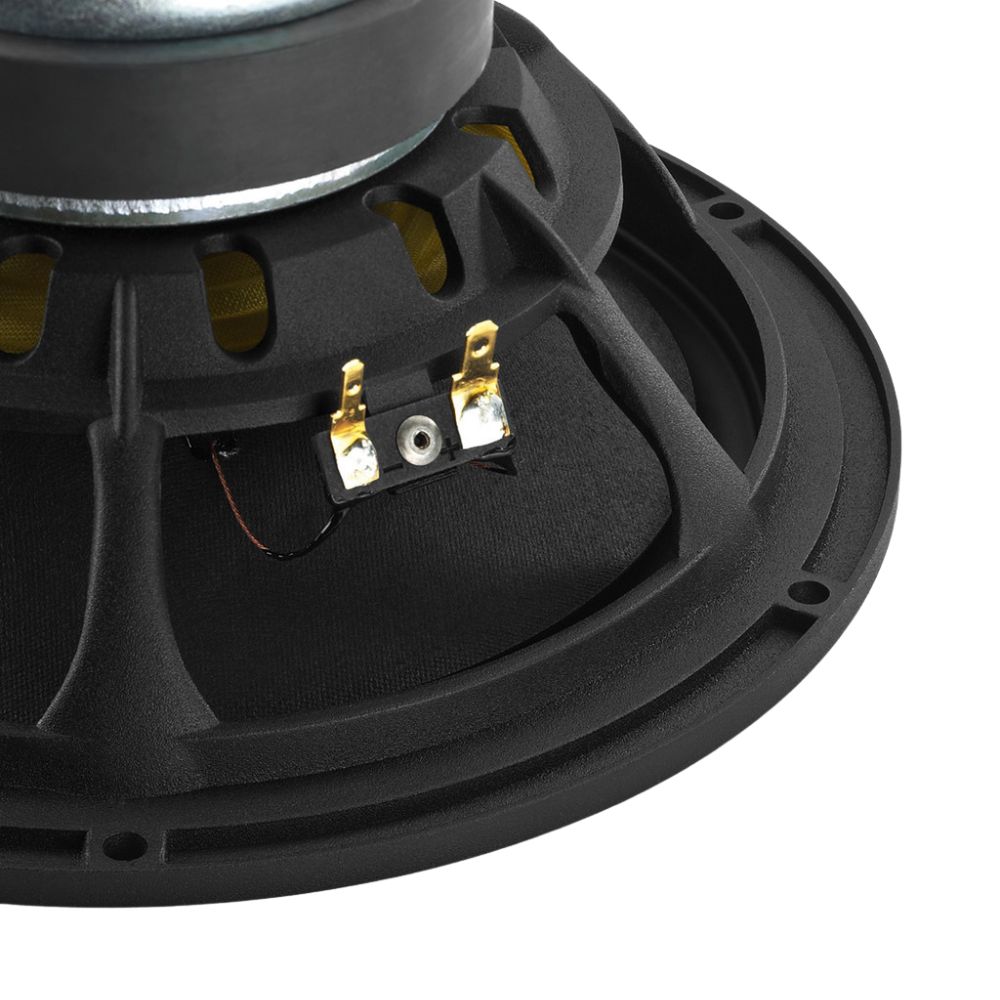

- Equipped with a diecast basket, rear-ventilated centering spider and drilled pole core for minimum mechanical loss
- High-quality coated paper cone of low resonance, low-loss rubber surround

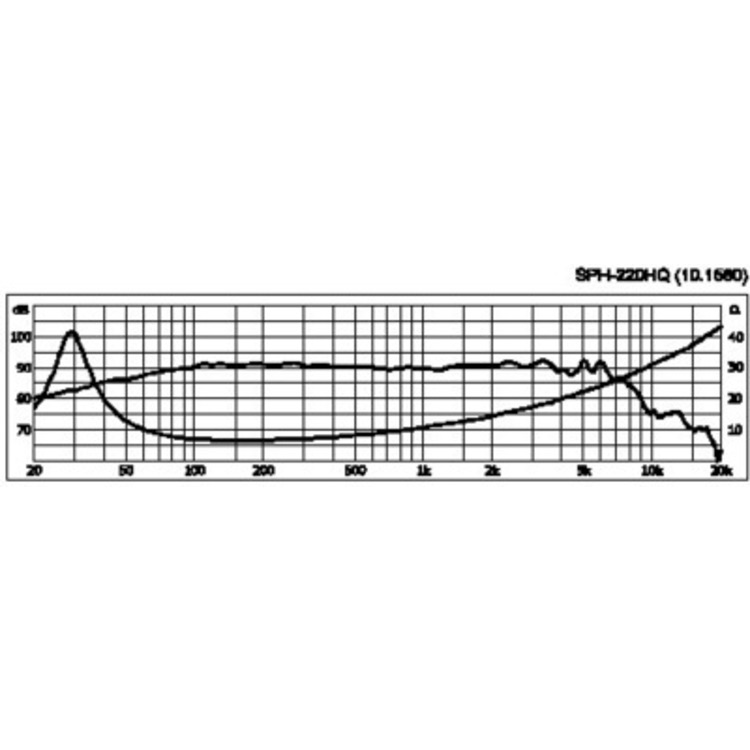

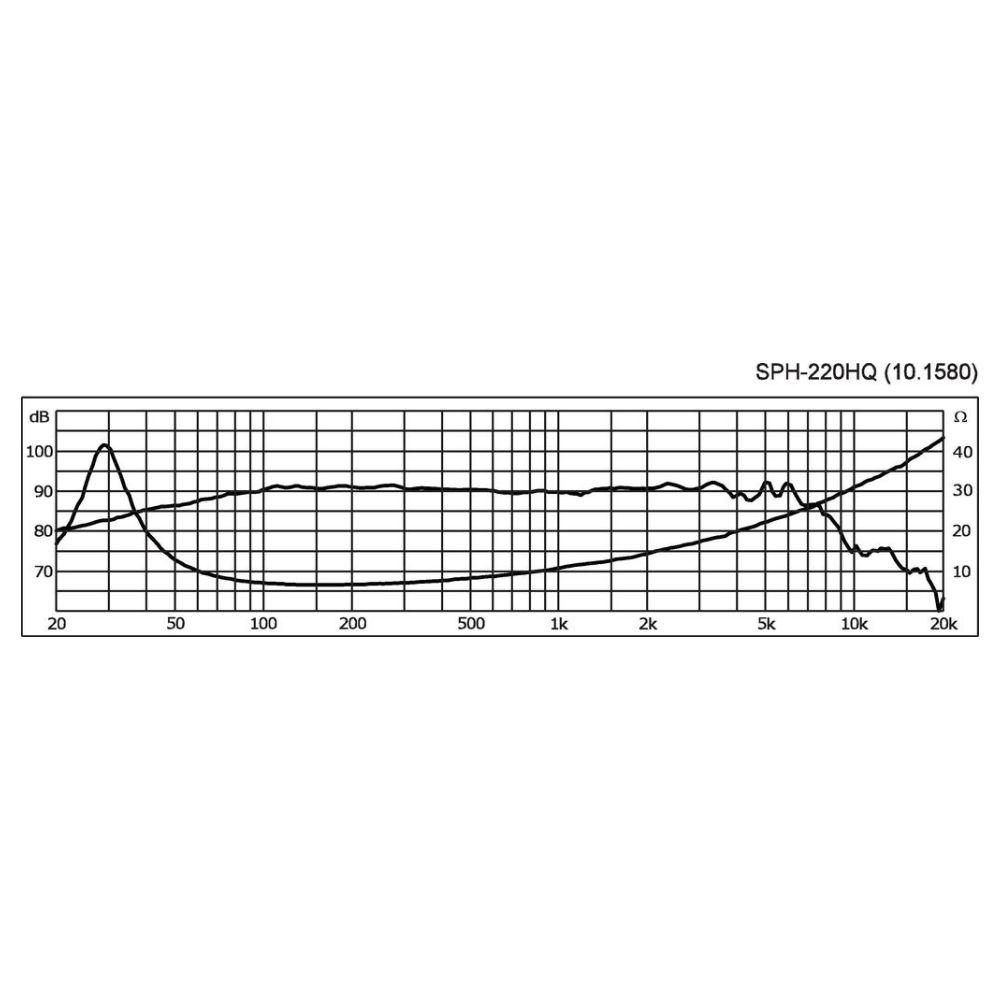

- Wide and linear transmission range
- Ideally suited in 3-way systems and also suitable in classic 2-way systems for an application range of up to 2,000Hz and beyond
HOBBY HIFI 04/2013
"Excellent sound, powerful bass reproduction and good level stability. It features an outstanding frequency response with perfect linearity. The SPH-220HQ allows for an exceptionally efficient radiation and even the use of a first-order crossover network for an ideal sound."
MONACOR product code: SPH-220HQ
Details
TECHNICAL DATA:
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 30Hz |
| Max. frequency range | f3-4,000Hz |
| Music power | 180WMAX |
| Power rating (P) | 100WRMS |
| SPL (1W/m) | 90dB |
| Suspension compl. (Cms) | 1.06mm/N |
| Moving mass (Mms) | 24.7g |
| Mech. Q factor (Qms) | 3.06 |
| Electr. Q factor (Qes) | 0.46 |
| Total Q factor (Qts) | 0.40 |
| Equivalent volume (Vas) | 80 l |
| DC resistance (Re) | 6.1Ω |
| Force factor (BxL) | 7.63Tm |
| Voice coil induct. (Le) | 0.9mH |
| Voice coil diameter | 37mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 5.5mm |
| Eff. cone area (Sd) | 232cm2 |
| Magnet weight | 550g |
| Weight | 1.83kg |
