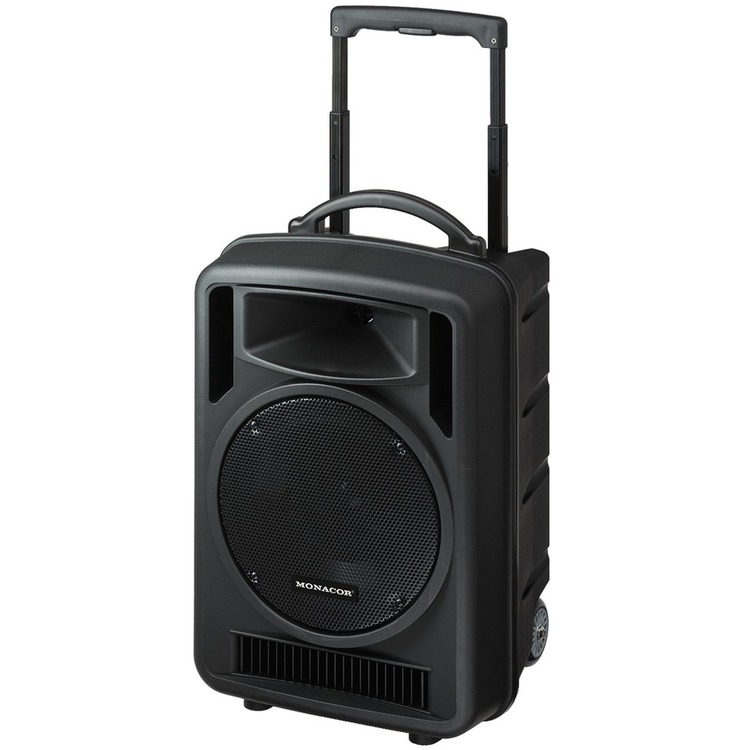

Monacor TXA-1020 2-way PA System with bluetooth and radio mic receivers
Code: MZMTXA1020
£1,050.04
(£875.03
ex VAT)
Quantity Pricing
2
+
£1,033.50
each
(£861.25
each ex VAT)
Choose quantity
Order now for dispatch on Wed 22nd Oct.
Description
Monacor TXA-1020 Portable high-power amplifier
system with integrated 2-channel UHF multifrequency
receiver
- High-performance class D version 170 W MAX, with optimum efficiency
- Operation via mains connection or built-in rechargeable lead gel battery 2 x 12 V/4.5 Ah (operating time: up to 4 hours), integrated automatic battery charging with charging status indication, deep discharge protection
- For mobile applications, e.g. at sales events, lectures
- 2 x 16 selectable UHF frequencies (863.1-864.9 MHz) with diversity system
- 2-way speaker system of high power capability with a 25 cm (10") bass speaker

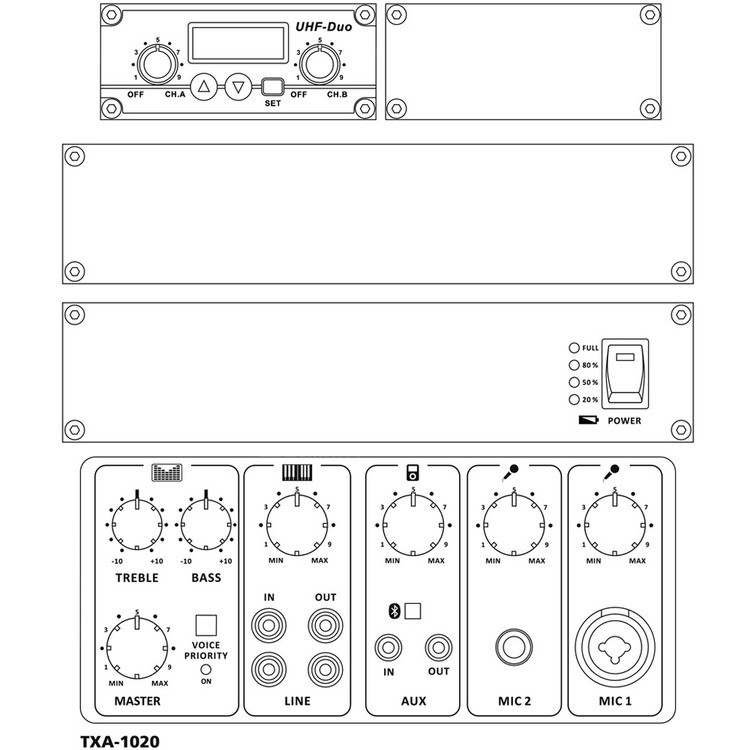

- 1 microphone input via comb. jack (XLR/6.3 mm), 1 microphone input (6.3 mm jack), 1 stereo line input (RCA), 1 aux input (3.5 mm jack), each input can be adjusted
- Common master control, 2-way tone control
- 1 stereo line output (RCA), 1 aux output (3.5 mm jack)
- Switchable microphone priority circuit
- Using its extractable telescopic handle and 2 castors, the amplifier system can easily be pulled like a trolley
- Speaker stand sleeve
- Licence-free in the UK & EU
Please note that radio microphone transmitters are not
included and need to be ordered separately as required.
Matching microphone transmitters or pocket transmitters, e.g. TXA-800HSE, TXA-800HT are available as optional accessories, plus a protective bag and charger - see below.
MONACOR product code: TXA-1020
Details
| Output power | 170 W MAX/120 W RMS |
| Frequency range | 20-20,000 Hz |
| Carrier frequency | 863.1-864.9 MHz |
| Operating range | approx. 30 m |
| Sensitivities | |
|
Mic inputs |
6 mV |
|
Line inputs |
300 mV (incl. aux) |
|
Link |
optional (TXA-1020MT) |
| Equalizer, bass | ±10 dB/100 Hz |
|
Equalizer, midrange |
- |
|
Equalizer, treble |
±10 dB/10 kHz |
| Power supply | 230 V˜/50 Hz/170 VA,
rech. battery: 2 x 12 V/4.5 Ah |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 360x580x320 mm |
| Weight | 18.9 kg |
Reviews
Associated Items
-
Monacor TXA-800HT Hand-held radio microphone transmitter
£169.66 (£141.38 ex VAT)Monacor TXA-800HT Hand-held microphone with integrated multi-frequency...
-
Monacor TXA-800HSE radio mic pocket transmitter
£222.77 (£185.64 ex VAT)Monacor TXA-800HSE Multifrequency pocket radio mic transmitter...
-

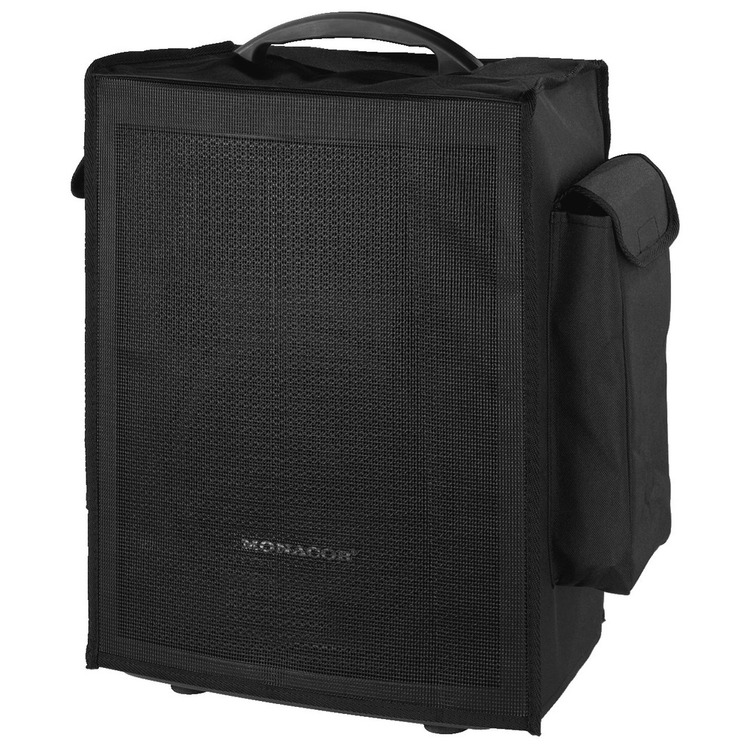

Protective bag for Monacor TXA-1020, TXA-1020USB and TXA-1022CD PA Systems
£41.51 (£34.59 ex VAT)Protective bag for Monacor TXA-1020, TXA-1020USB and TXA-1022CD...
-

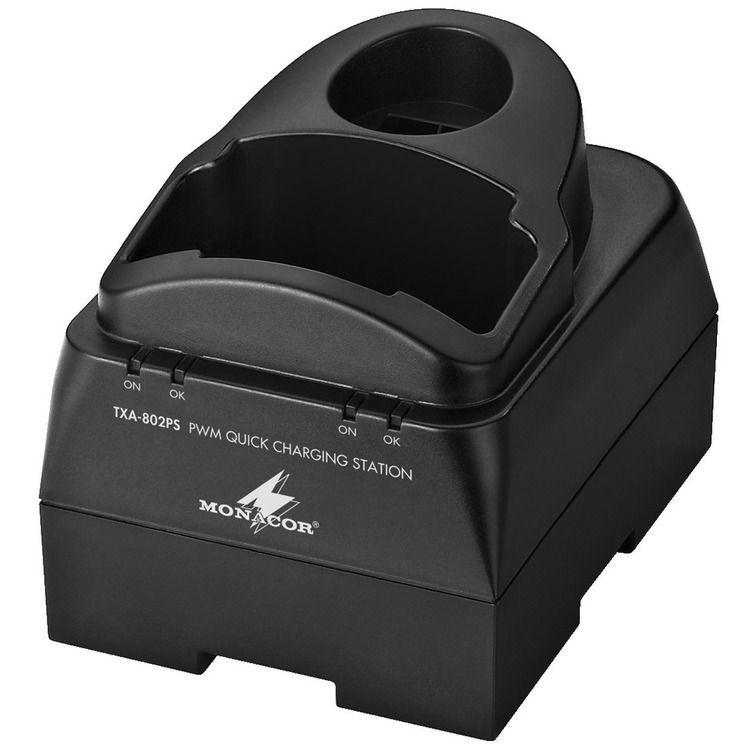

PWM quick-charge station for TXA-800HSE & TXA-88R
£91.82 (£76.52 ex VAT)For simultaneously charging the rechargeable batteries (NC,...
-

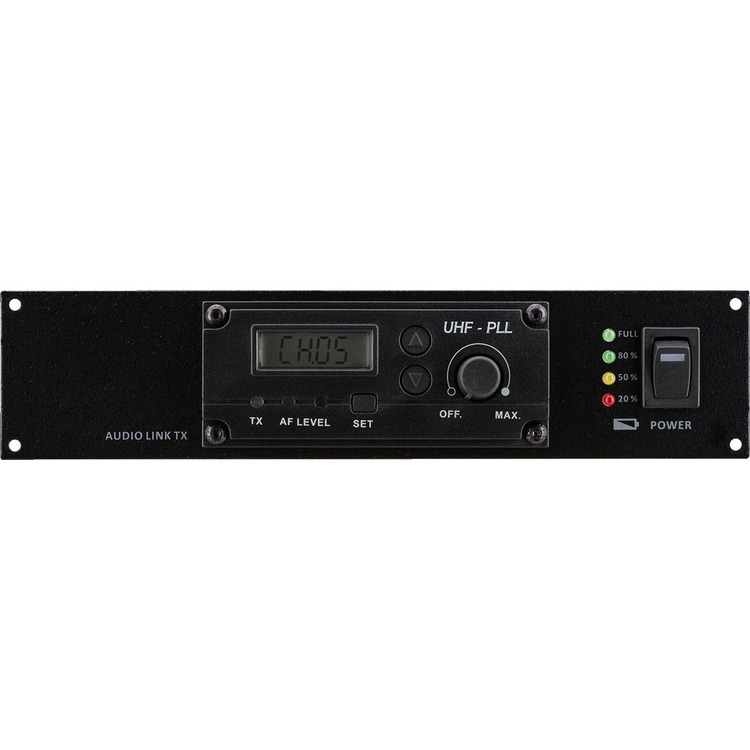

Monacor TXA-1020MT Radio Mic Transmitter Module
£154.39 (£128.66 ex VAT)Monacor TXA-1020MT Mulitfrequency transmitter module for retrofitting...
-

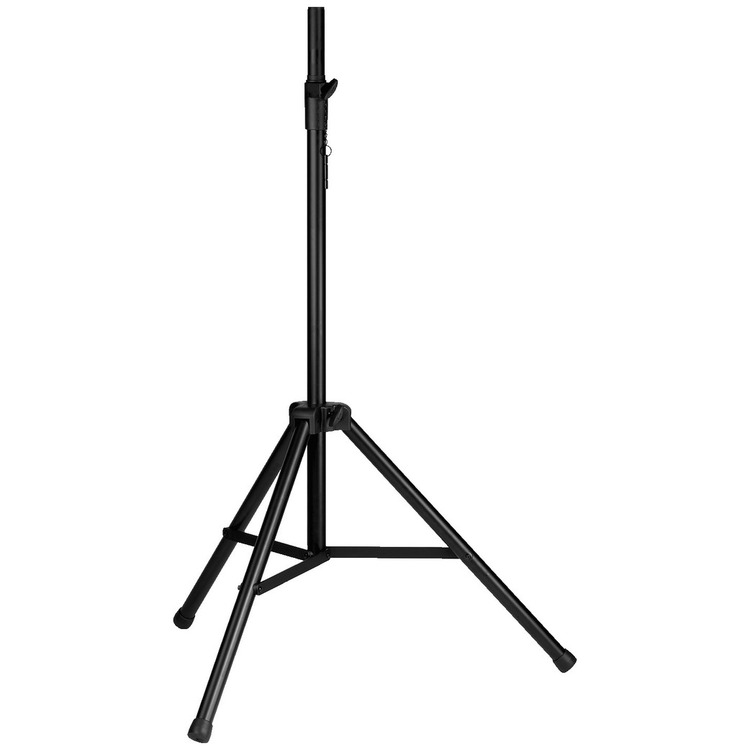

Tripod Speaker Steel Floor Stand Height adjustable 130-200cm Max load 40kg Tube diameter 35mm
£61.38 (£51.15 ex VAT)Tripod Speaker Steel Floor Stand Height adjustable 130-200cm...
-
Tripod Speaker Floor Stand Height adjustable 140-200cm Max load 30kg Tube diameter 35mm
£68.04 (£56.70 ex VAT)Tripod Speaker Floor Stand Height adjustable 140-200cm Max...
-

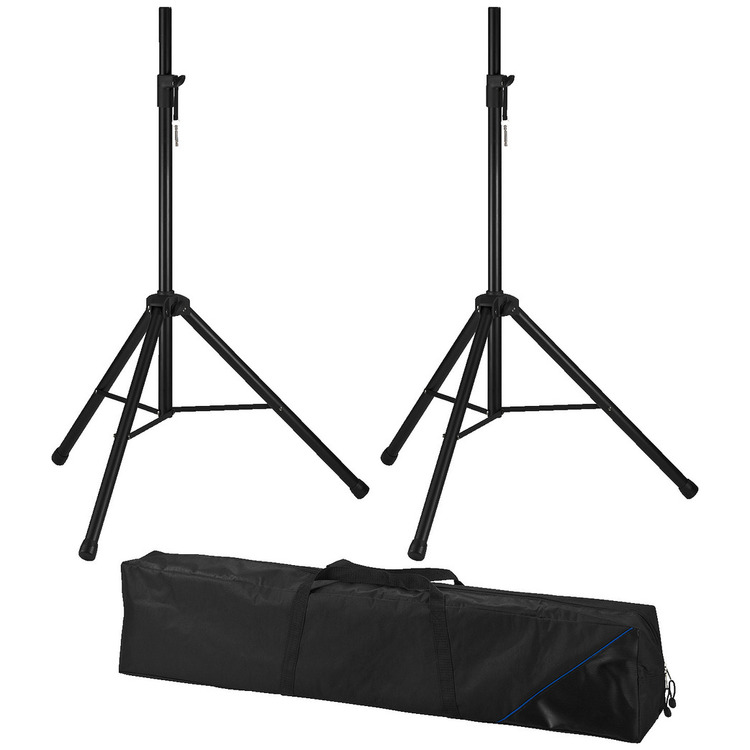

Speaker Stand Set consisting of 2 x PAST-164/SW and nylon carry bag. Each stand - Height adjustable 140-200cm Max load 30kg Tube diameter 35mm
