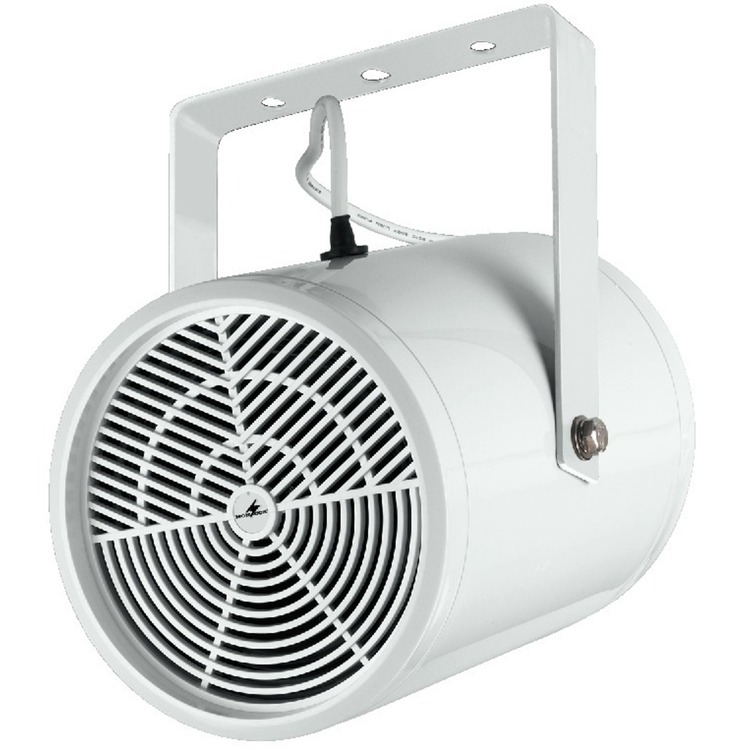

100V line IP44 weatherproof 20W PA wall & ceiling projector speaker
Code: MZMEDL220WS
Quantity Pricing
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description
100V line IP44 rated weatherproof 20 Watt PA wall and ceiling projector speaker - 180mm diameter x 251mm length
This speaker is specially designed for application in PA systems. It is equipped with a transformer for operation at 100 V systems. The connected load is matched via selection of the connection cables.
Due to its weatherproof cabinet (IP 44) and a polypropylene cone it is also suitable for outdoor installation.
This model is equipped with two speakers, thus the sound is radiated in two directions.
- 100 V line technique
- 2 speakers with polypropylene cone for bilateral radiation
- Splashproof due to plastic cabinet with rubber seals
- Connection cable with 3 power taps
- Movable mounting bracket and screws made of stainless steel
MONACOR product code: EDL-220/WS
Details
TECHNICAL DATA:
| Frequency range | 120-20,000Hz |
| Power capability, 100 V | 20/10/5WRMS |
| Power capability, 8 Ω | - |
| SPL (1 W/m) | 94dB |
| Max. rated SPL | - |
| Type of speaker | - |
| Mounting cutout | - |
| Mounting depth | - |
| Admiss. ambient temp. | -10 °C to +40 °C |
| Dimensions | 180mm diameter x 251mm length |
| Weight | 2.75kg |
| Other features | - |
