100V line 2-way coaxial PA wall speaker
Code: MZMESP70WS
Quantity Pricing
-
VAT
Out of Stock
Please enter your email address below and we will notify you once this item is back in stock.
Description

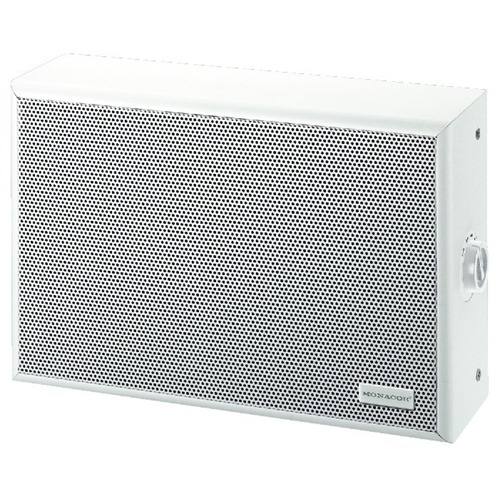

White 100V line PA wall speaker with 10/6/4/2W RMS power capability
This speaker has especially been designed for applications in PA systems. It is equipped with a transformer for operation at 100 V systems. The connected load is matched via a rotary switch.
When applying a 24 V control voltage, the integrated relay will bridge the power selector switch for reaching the maximum power, so that e. g. in case of emergency an announcement can be made via all speakers at full volume.
- 100V line technique

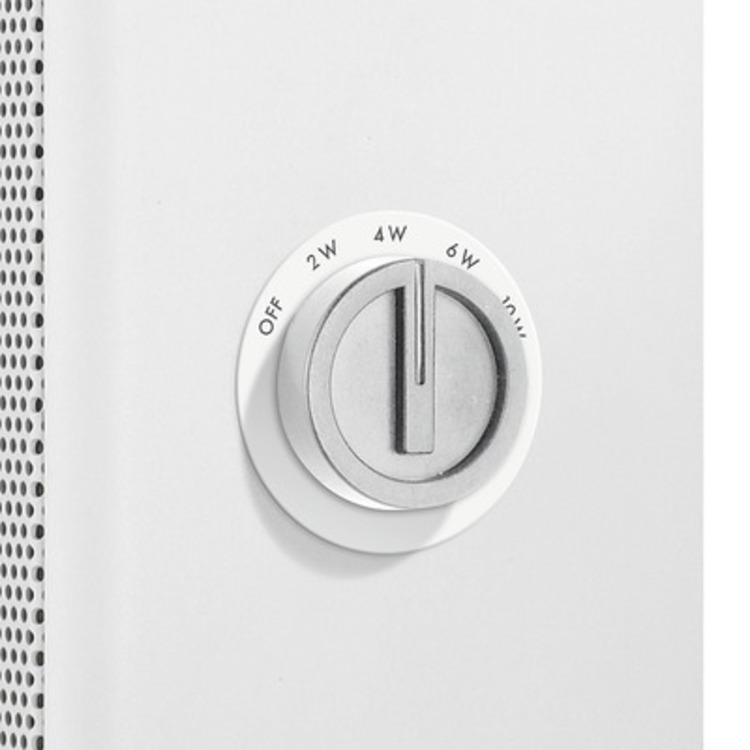

- 5-step rotary switch for 10/6/4/2W RMS/off
- Rotary switch can be replaced with a cover plate to avoid accidental changing of the power selection
- Emergency priority relay
- Wooden cabinet with protective metal grill
- Easy wall mounting via supporting plate
Wood
MONACOR product code: ESP-70/WS
Details
TECHNICAL DATA:
| Frequency range | 95-19,000Hz |
| Power capability, 100 V | 10/6/4/2WRMS |
| Power capability, 8 Ω | - |
| SPL (1 W/m) | - |
| Max. rated SPL | - |
| Type of speaker | - |
| Mounting cutout | - |
| Mounting depth | - |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 300 x 200 x 90 mm |
| Weight | 2.3kg |
| Other features | - |
