Hi-Fi full range speaker, 100W MAX, 8 Ohm
Code: MZMSPX200WP
£45.36
(£37.80
ex VAT)
Quantity Pricing
2
-
4
£45.02
each
(£37.52
each ex VAT)
5
+
£44.69
each
(£37.24
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description

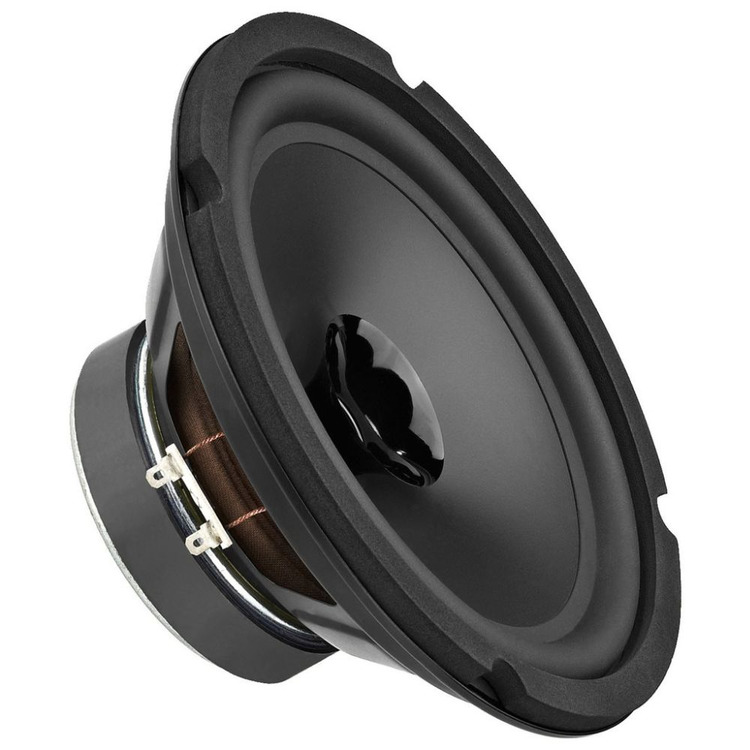

Hi-Fi full range speaker, 100WMAX, 50WRMS, 8Ω
- Excellent sound quality
- Very wide frequency range, slightly rising towards the high frequencies
- Low-resonance and weatherproof polypropylene cone with rubber surround
- Very good bass reproduction
- Ideally suited for the application in closed cabinets
Klang+Ton 02/2013
"Classical results in a modern design - an exciting full range speaker. WP actually stands for waterproof. Thus, a speaker suitable for outdoor applications. In the measuring section, the SPX-200WP astonishingly provides a performance exactly like some of my favourite full range speakers."
MONACOR product code: SPX-200WP
Details
TECHNICAL DATA:
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 36Hz |
| Max. frequency range | f3-18,000Hz |
| Music power | 100WMAX |
| Power rating (P) | 50WRMS |
| SPL (1W/m) | 89dB |
| Suspension compl. (Cms) | 0.95mm/N |
| Moving mass (Mms) | 19.7g |
| Mech. Q factor (Qms) | 4.18 |
| Electr. Q factor (Qes) | 0.69 |
| Total Q factor (Qts) | 0.59 |
| Equivalent volume (Vas) | 60.5 l |
| DC resistance (Re) | 7.6Ω |
| Force factor (BxL) | 6.79Tm |
| Voice coil induct. (Le) | 0.35mH |
| Voice coil diameter | 25mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ±2mm |
| Eff. cone area (Sd) | 213cm2 |
| Magnet weight | 564g |
| Weight | 1.4kg |
