Hi-Fi full range speaker, 25W MAX, 4 Ohm
Code: MZMSPX21M
£24.35
(£20.29
ex VAT)
Quantity Pricing
2
-
4
£23.47
each
(£19.56
each ex VAT)
5
+
£23.12
each
(£19.27
each ex VAT)
Choose quantity
Order now for dispatch on Tue 6th Jan.
Description

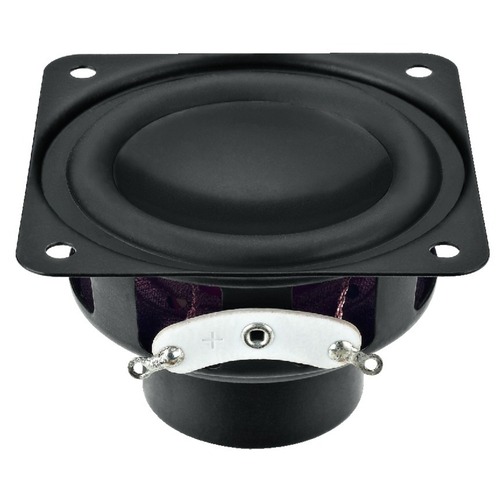

Hi-Fi full range speaker, 25WMAX, 12WRMS, 4 Ohm
- Mini Hi-Fi full range speaker with a very good sound quality
- Inverse laminated cone and ventilated centering spider
- Neodymium magnetic system
- Voice coil system of very low moving mass
- Application in small speakers or satellite systems
- Ideally suited for line arrays, column speakers
- Combined with bass-midrange speakers, very well-suited as a tweeter system with a low crossover frequency
MONACOR product code: SPX-21M
Details
TECHNICAL DATA:
| Impedance (Z) | 4Ω |
| Resonant frequency (fs) | 170Hz |
| Max. frequency range | f3-22,000Hz |
| Music power | 25WMAX |
| Power rating (P) | 12WRMS |
| SPL (1W/m) | 84dB |
| Suspension compl. (Cms) | 0.6mm/N |
| Moving mass (Mms) | 1.45g |
| Mech. Q factor (Qms) | 4.66 |
| Electr. Q factor (Qes) | 0.53 |
| Total Q factor (Qts) | 0.47 |
| Equivalent volume (Vas) | 0.14 l |
| DC resistance (Re) | 3.74Ω |
| Force factor (BxL) | 3.32Tm |
| Voice coil induct. (Le) | 0.12mH |
| Voice coil diameter | 20mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ±1.2mm |
| Eff. cone area (Sd) | 13cm2 |
| Magnet weight | 25.8g |
| Weight | 0.09kg |
