Hi-Fi dome tweeter, 100W MAX, 8 Ohm
Code: MZMDTM1048
£27.55
(£22.96
ex VAT)
Quantity Pricing
2
-
4
£26.57
each
(£22.14
each ex VAT)
5
+
£26.17
each
(£21.81
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description

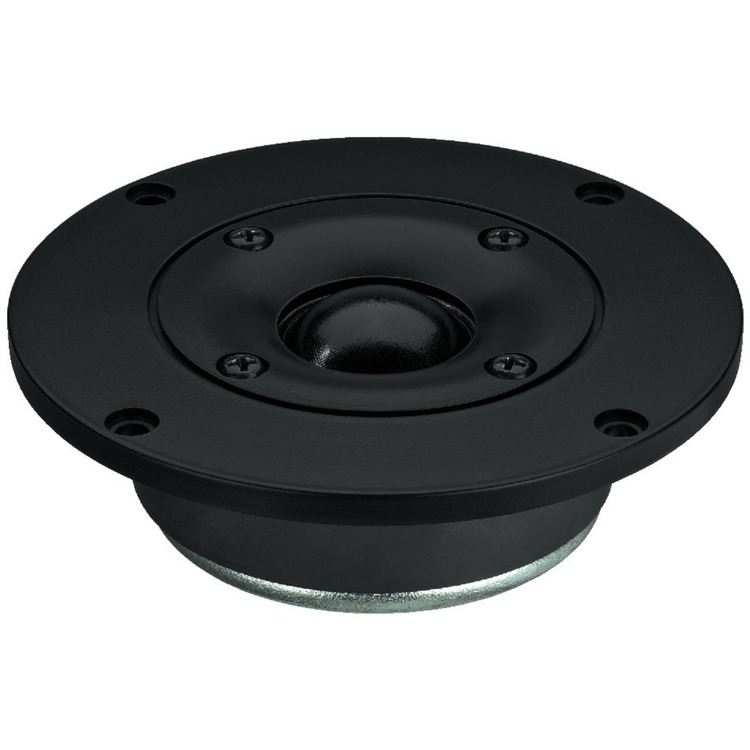

Hi-Fi dome tweeter, 100W MAX, 8Ω
- Textile dome tweeter with Kapton voice coil former
- Excellent radiation pattern due to waveguide
- Very well-suited as a replacement for high-quality Hi-Fi speakers
MONACOR product code: DTM-104/8
Details
TECHNICAL DATA:
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 1,200Hz |
| Max. frequency range | fx-19,000Hz |
| Rec. crossover freq. (12dB) | 2,500Hz |
| Music power | 100WMAX |
| Power rating | 45WRMS |
| SPL (1W/m) | 92dB |
| Voice coil diameter | 25mm |

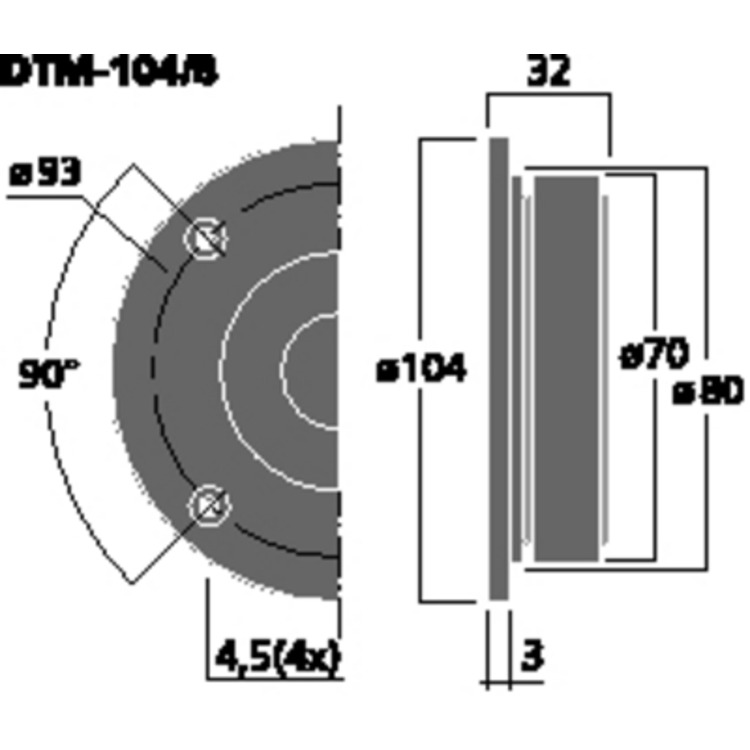

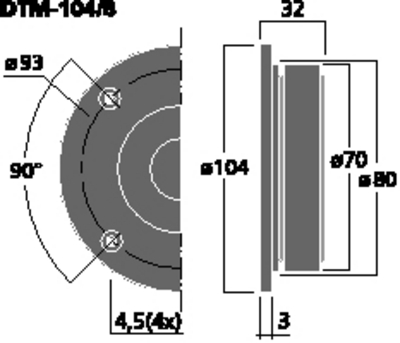

| Magnet diameter | 70mm |
| Mounting cutout | dia 80mm |
| Mounting depth | 32mm |
| Dimensions | dia 104mm |
| Weight | 520g |
