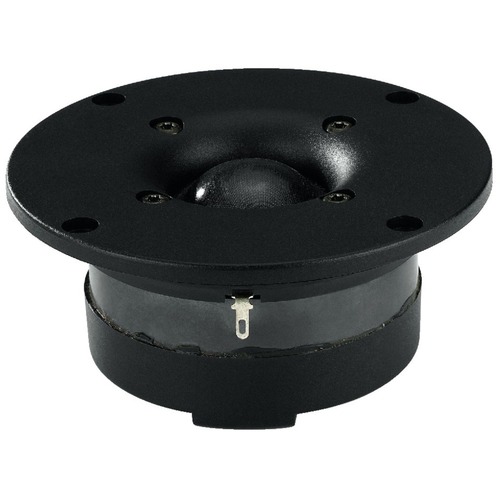

Hi-Fi dome tweeter, 100W MAX, 8 Ohm
Code: MZMDT300
Quantity Pricing
-
VAT
Choose quantity
Order now for dispatch on Wed 25th Feb.
Description
Hi-Fi dome tweeter, 8Ω, 100W max
Hi-Fi dome tweeters with large cone area for extra high dynamic efficiency also in case of low crossover frequencies. An ideal solution with excellent brilliant sound at the same time.
Exceptional tweeter with 30mm silk cone and large attached volume. Due to the low resonant frequency and large surface, there is an excellent dynamic response and a high stability even with low crossovers.
Ferrofluid of high liquidity for a fine brilliance. Especially suitable for high-performance applications and D'Appolito arrangements in the top hi-fi range.
HiFi-Selbstbau, Online magazine 2008
"Due to its large dome diameter of 30mm and the high efficiency of 92dB/2.83V/m, the DT-300 is destined for higher sound pressure levels and lower crossover frequencies. Perfectly suitable for 2-way systems of high volume levels with a crossover frequency of > 2.1kHz, available at a very competitive price."
DT-300 - WG-300
"The DT-300 with waveguide is the better version of the DT-300: the waveguide allows for sound pressure levels which are even higher or of even lower distortion (K3). The waveguide is available at a very reasonable price."
NUMBER ONE product code: DT-300
Details
TECHNICAL DATA:
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 750Hz |
| Max. frequency range | fx-19,000Hz |
| Rec. crossover freq. (12dB) | 2,000Hz |
| Music power | 100WMAX |
| Power rating | 50WRMS |
| SPL (1W/m) | 93dB |
| Voice coil diameter | 30mm |
| Magnet diameter | 80mm |

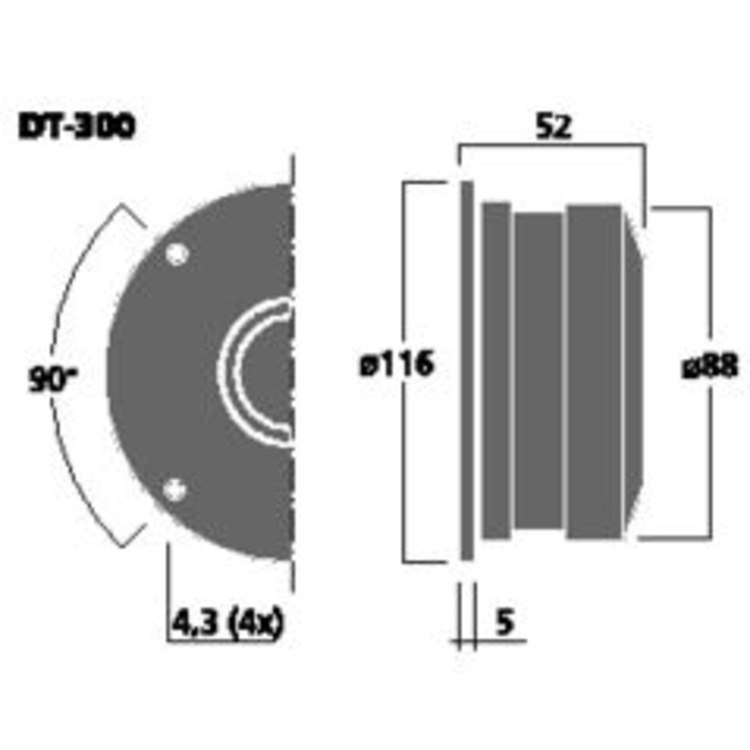

| Mounting cutout | dia 89mm |
| Mounting depth | 53mm |
| Dimensions | dia 116mm |
| Weight | 700g |
