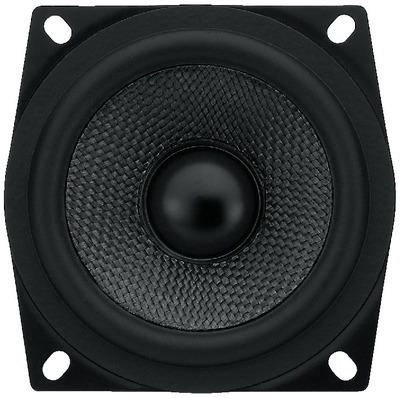

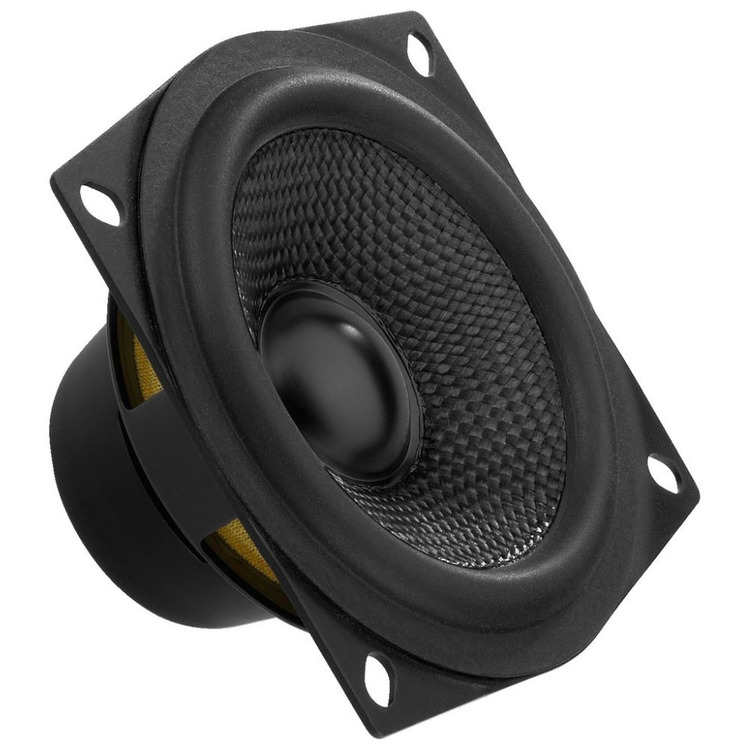

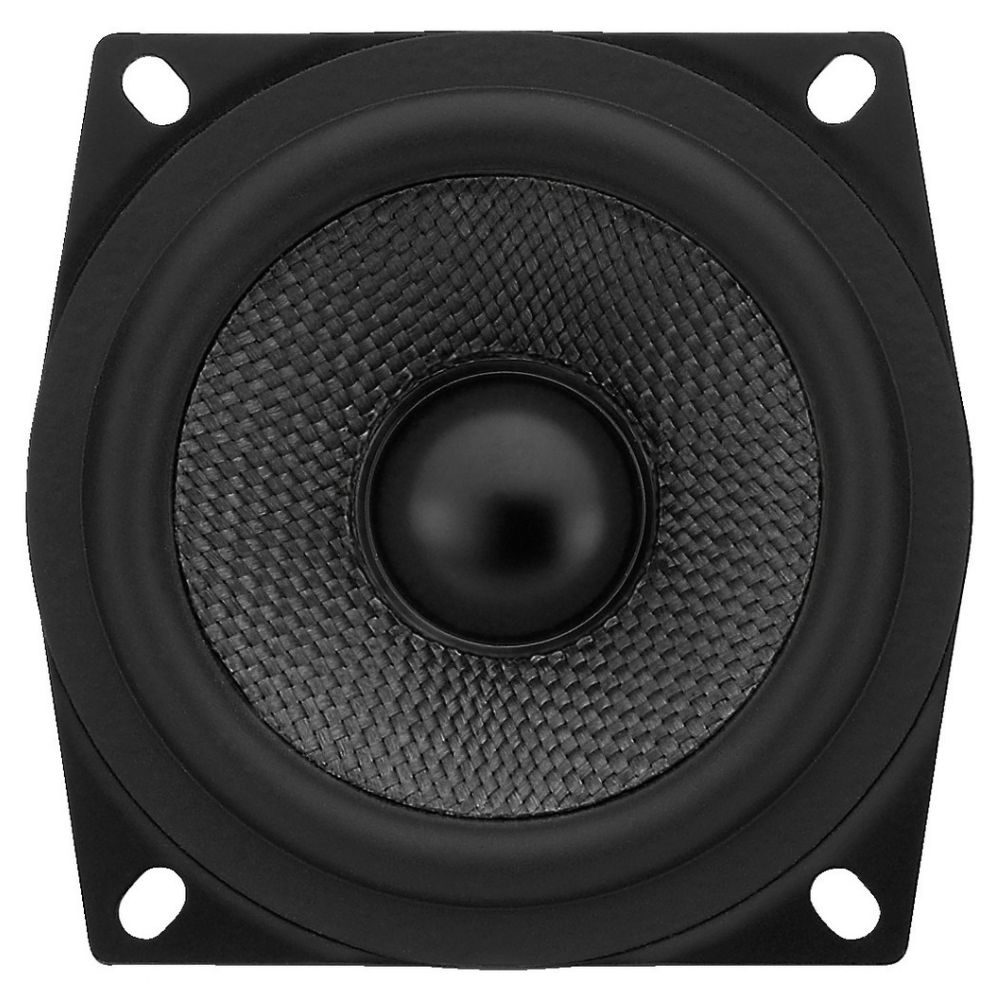

High quality Hi-Fi full range speaker, black kevlar cone, 50W MAX, 8 Ohm
Code: MZMSPH30X8SW
Quantity Pricing
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description
High quality Hi-Fi full range speaker with black kevlar cone, 50WMAX, 20WRMS, 8Ω
This full range speaker combines numerous highlights of the speaker technology on a minimum of space: a Kevlar cone of extra low weight, but nevertheless well dampened, a drive system with full air ventilation, a high-quality NEODYMIUM magnetic system with double magnet and a newly developed basket which allows mounting at a favourable price even with multiple arrangements.
This small speaker of amazingly high efficiency can be used for versatile applications, ranging from small speakers for background PA applications or e.g. rear speakers in home cinema systems, applications as mid-high range speakers or full range midrange speakers in high-end Hi-Fi speaker systems to multiple arrangements in column speakers.
- Well dampened Kevlar cone of extra low weight
- Drive system with full air ventilation
- High-quality NEODYMIUM magnet system with double magnet
- Specially developed basket also for multiple arrangements
- High efficiency
- Small speakers for background PA applications or e.g. rear speakers in home cinema systems
MONACOR product code: SPH-30X/8SW
Details
TECHNICAL DATA:
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 105Hz |
| Max. frequency range | f3-17,000Hz |
| Music power | 50WMAX |
| Power rating (P) | 20WRMS |
| SPL (1W/m) | 87dB |
| Suspension compl. (Cms) | 0.90mm/N |
| Moving mass (Mms) | 2.65g |
| Mech. Q factor (Qms) | 8.59 |
| Electr. Q factor (Qes) | 0.49 |
| Total Q factor (Qts) | 0.42 |
| Equivalent volume (Vas) | 1.3 l |
| DC resistance (Re) | 5.7Ω |
| Force factor (BxL) | 4.48Tm |
| Voice coil induct. (Le) | 0.5mH |
| Voice coil diameter | 21mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ±2mm |
| Eff. cone area (Sd) | 30cm2 |
| Magnet weight | neodymium |
| Weight | 150g |
