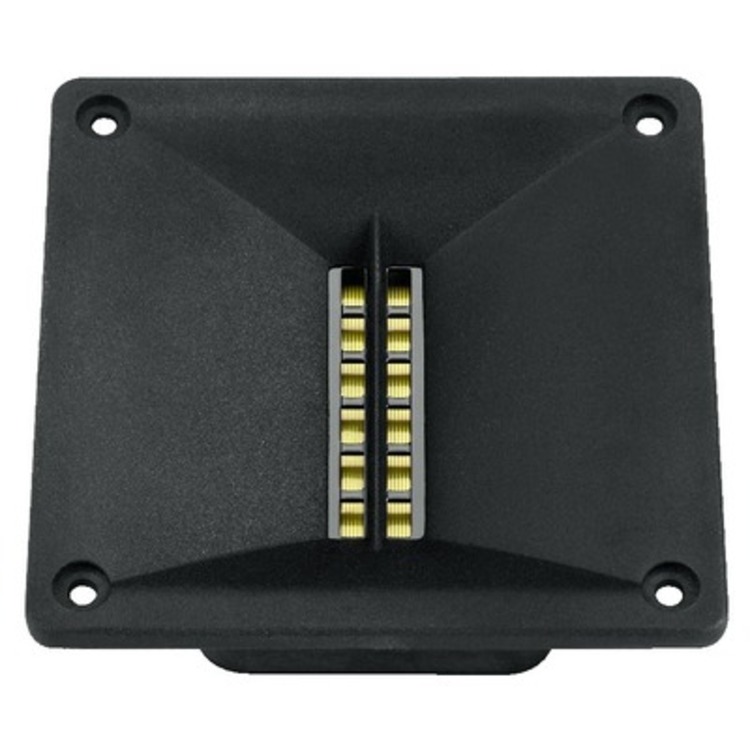

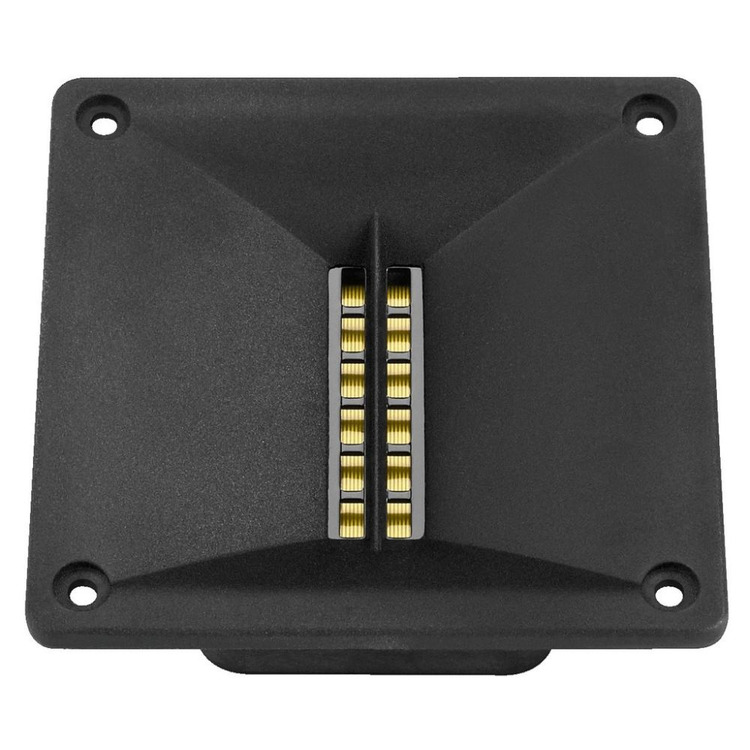

Ribbon tweeter for PA and Hi-Fi, 80W MAX, 6 Ohm
Code: MZMRBT1000
£111.40
(£92.83
ex VAT)
Quantity Pricing
3
+
£105.83
each
(£88.19
each ex VAT)
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description
Ribbon tweeter, 80Wmax, 40Wrms, 6 Ω
- Magnetostatic speaker with wave-guide
- Tweeter system from the L-RAY/1000
- Fine and brilliant reproduction of the high range
- Filters from 3,000Hz (Hi-Fi) or 4,000Hz (PA) on can be used above 18dB
- Diecast aluminium horn front attachment, neodymium magnet
- Vertical or horizontal mounting possible due to square front panel
IMG STAGE LINE product code: RBT-1000
Details
TECHNICAL DATA:
| Impedance (Z) | 6Ω |
| Resonant frequency (fs) | 1,600Hz |
| Max. frequency range | fx-22,000Hz |
| Rec. crossov. frequ. (fmax.) (12dB/oct.) | > 2,500Hz |
| Music power | 80WMAX |
| Power rating (P) | 40WRMS |
| SPL (1W/1m) | 96dB |
| Radiation angle (vert./hor.) | - |
| Voice coil diameter | - |
| Magnet diameter | magnetostatic speaker |

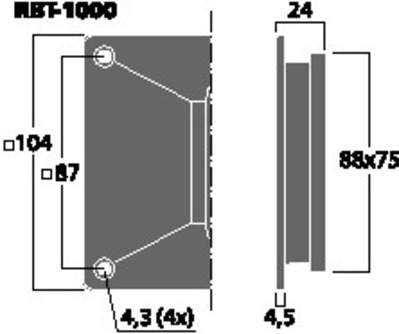

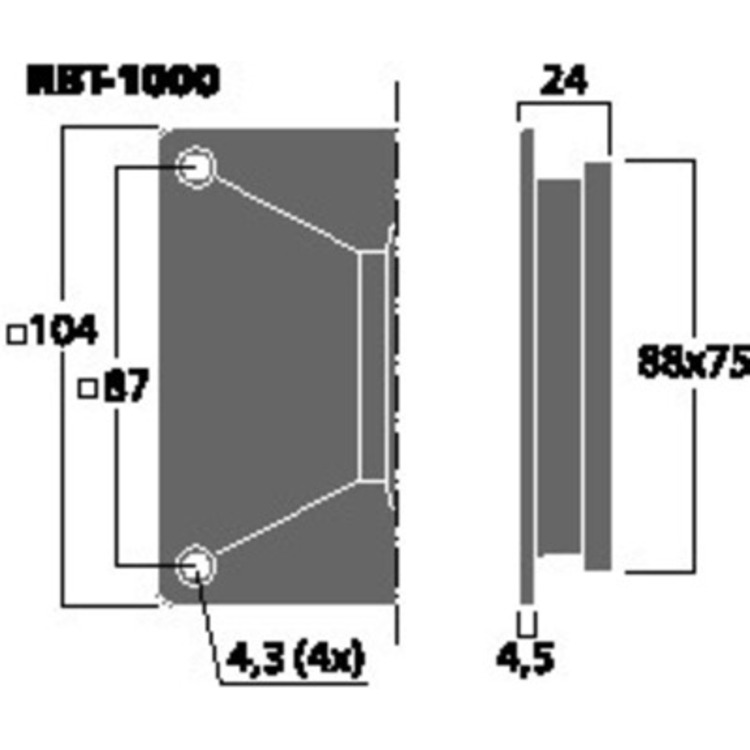

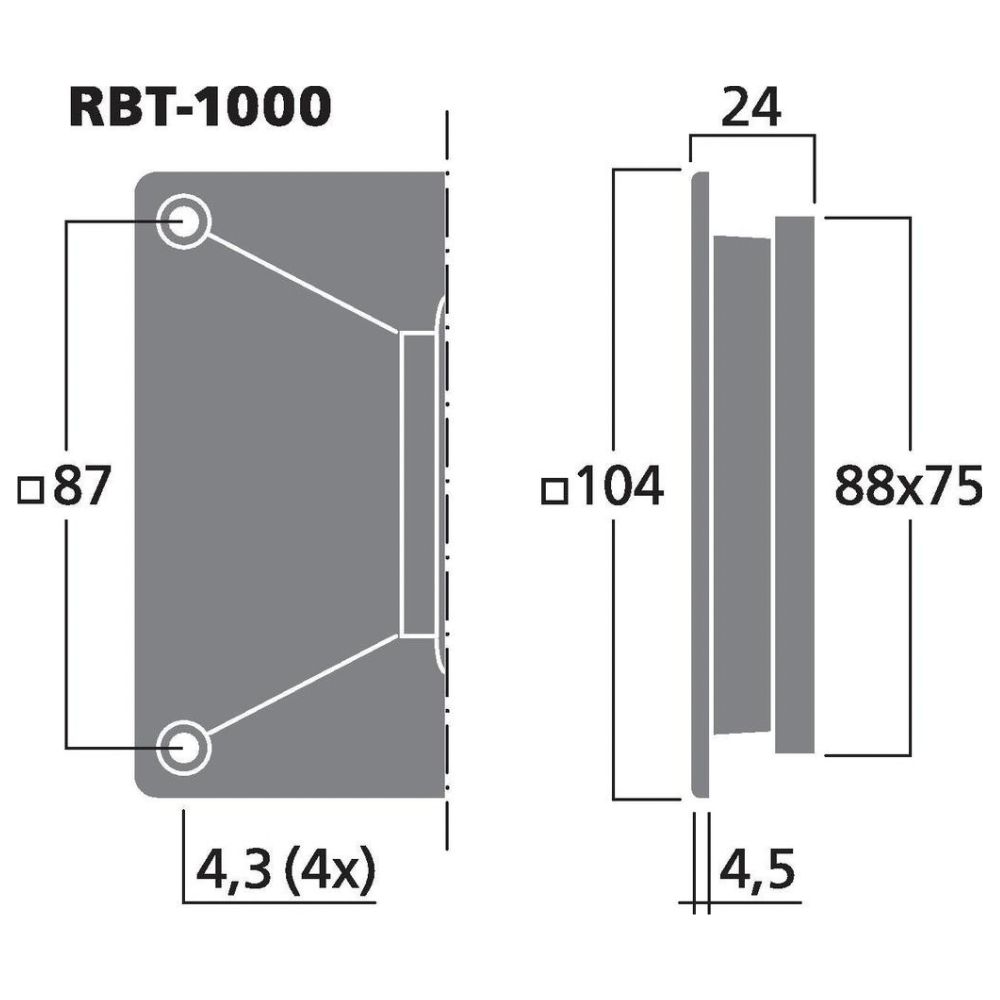

| Mounting cutout | 94 x 94 mm |
| Mounting depth | 34mm |
| Dimensions | 104 x 104 mm |
| Weight | 175g |
