Hi-Fi full range speaker, 40W MAX, 8 Ohm
Code: MZMSPX32M
£20.28
(£16.90
ex VAT)
Quantity Pricing
2
-
4
£19.55
each
(£16.29
each ex VAT)
5
+
£19.26
each
(£16.05
each ex VAT)
Choose quantity
Order now for dispatch on Tue 6th Jan.
Description
Hi-Fi full range speaker, 40WMAX, 20WRMS, 8Ω
- Compact Hi-Fi full range speaker with a very good sound quality
- High-quality paper cone
- Wooden phase plug for optimising the radiation
- Rear ventilation of the centering spider
- Shielded magnetic system
- Application in small speakers or satellite systems
- Ideally suited for the application in FAST speakers (full range and subwoofer technology)
"Audiophile characteristics due to paper cone and solid wooden phase plug."
MONACOR product code: SPX-32M
Details

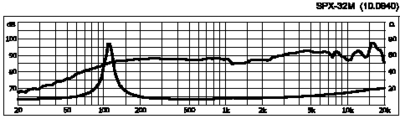

TECHNICAL DATA:
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 110Hz |
| Max. frequency range | f3-22,000Hz |
| Music power | 40WMAX |
| Power rating (P) | 20WRMS |
| SPL (1W/m) | 88dB |
| Suspension compl. (Cms) | 1.11mm/N |
| Moving mass (Mms) | 1.7g |
| Mech. Q factor (Qms) | 7.66 |
| Electr. Q factor (Qes) | 0.60 |
| Total Q factor (Qts) | 0.56 |
| Equivalent volume (Vas) | 1.6 l |
| DC resistance (Re) | 6.6Ω |
| Force factor (BxL) | 3.69Tm |
| Voice coil induct. (Le) | 0.18mH |

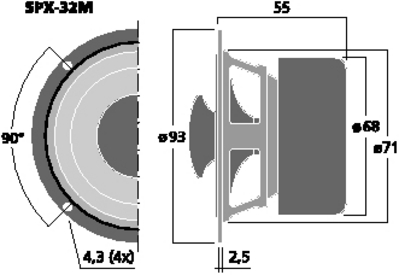

| Voice coil diameter | 20mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ±1.1mm |
| Eff. cone area (Sd) | 32cm2 |
| Magnet weight | 99g |
| Weight | 0.52kg |
