Professional PA subwoofer, 2000W MAX, 8 Ohm
Code: MZMFTR154080HDX
Quantity Pricing
-
VAT
Choose quantity
Order now for dispatch on Wed 4th Mar.
Description

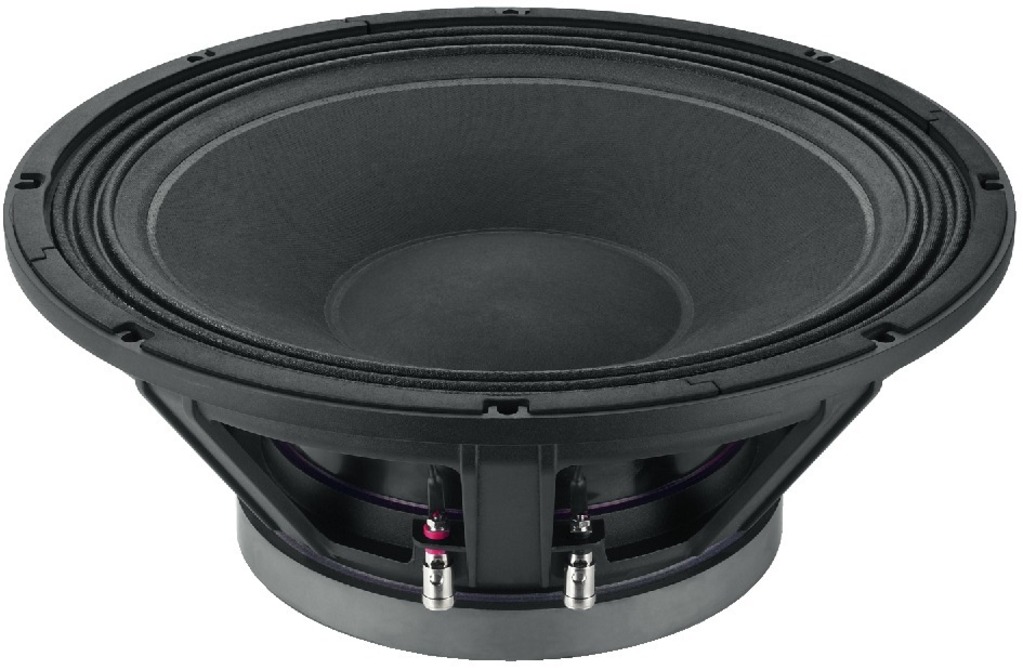

CELESTION high power subwoofer, 2,000WMAX, 1,000WRMS, 8Ω,
38cm (15")
This subwoofer from CELESTION impresses by having an excellent power capability of 2,000W MAX. Even at maximum load, operating reliability is assured. The speaker has been developed with state-of-the-art technology and analysing methods to provide a sophisticated ventilation of the drive system.
High mechanical reserves have been made possible due to a very high excursion of the extra rigid cone, double centering spiders, special multi-roll surrounds and heat-resistant voice coils.
- Top-class subwoofer, 38cm (15"), with a very high power capability and ferrite magnet
- Deformation-resistant, glass fibre reinforced paper cone
- Heat-resistant 100mm (4") voice coil, wound on the inside and outside
- Especially developed heat management of the drive system for preventing thermal compression and overheating
- Recommended operating range: up to 350Hz
- Waterproof impregnated cone (no coating), thus so series spreading at the moving mass of the voice coil system
- Double centering spider
- Multi-roll surround for an excellent linearity
- Robust diecast aluminium basket
- With less than 10kg, a lightweight for this size of speaker
CELESTION product code: FTR15-4080HDX
Details
TECHNICAL DATA:
| Impedance (Z) | 8Ω |
| Resonant frequency (fs) | 40Hz |
| Max. frequency range | f3-2,500Hz |
| Music power | 2,000WMAX |
| Power rating (P) | 1,000WRMS |
| SPL (1W/m) | 97dB |
| Suspension compl. (Cms) | 0.10mm/N |
| Moving mass (Mms) | 153g |
| Mech. Q factor (Qms) | 3.98 |
| Electr. Q factor (Qes) | 0.36 |
| Total Q factor (Qts) | 0.33 |
| Equivalent volume (Vas) | 105 l |
| DC resistance (Re) | 5.1Ω |
| Force factor (BxL) | 23.7Tm |
| Voice coil induct. (Le) | 1.95mH |
| Voice coil diameter | 100mm |
| Voice coil former | glass fibre |
| Linear excursion (XMAX) | ±8mm |
| Eff. cone area (Sd) | 855cm2 |
| Magnet weight | 3.1kg |
| Weight | 9.7kg |
