Monacor TXA-820CD Portable Amplifer System with 1 Channel Radio Mic Receiver, Bluetooth Receiver & CD Player
Code: MZMTXA820CD
£1,065.28
(£887.73
ex VAT)
Quantity Pricing
2
+
£1,048.50
each
(£873.75
each ex VAT)
Choose quantity
Order now for dispatch on Tue 18th Nov.
Description
Monacor TXA-820CD Portable amplifier
system,
with integrated 1-channel
multifrequency receiver unit with UHF PLL technology and
Bluetooth receiver.
- Operation via mains connection or built-in rechargeable lead gel battery 2 x 12 V/4.5 Ah (operating time: up to 5 hours), integrated automatic battery charging with charging status indication, discharge protection
- For mobile applications, e.g. sales events, lectures
- 16 selectable UHF frequencies (863-865 MHz) with diversity system
- CD player with anti-shock system, MP3 reproduction and slot-in mechanism
- SD card reader, USB port
- Pitch control function
- Supplied with remote control for CD player
- Efficient 2-way speaker system
- 1 microphone input via comb. jack (XLR/6.3 mm), 1 microphone input (6.3 mm jack), 1 stereo line input (RCA), 1 aux input (3.5 mm jack), each input can be adjusted
- Common master control, 2-way tone control
- 1 stereo line output (RCA), 1 aux output (3.5 mm jack)
- Switchable microphone priority circuit
- Due to an extractable telescopic handle and 2 castors, the amplifier system can easily be pulled like a trolley
- Stand sleeve
Licence-free in the EU.
Matching microphone
transmitters or pocket transmitters, e.g. TXA-800HSE, TXA-800HT
or ATS-12HT are avaiable at option.
Monacor product code:
TXA-820CD
Details
Technical specifications TXA-820CD
| TXA-820CD | |
|---|---|
| Rated power (P RMS) | 50 W |
| Peak output power | 80 W |
| Frequency range | 70-17,000 Hz |
| Carrier frequency | 863-865 MHz |
| Operating range | ? 30 m |
| Inputs | 6 mV (mic),
300 mV (line) |
| Link | optional (TXA-820MT) |
| Max. SPL | 114 dB |
| Equalizer, bass | ±10 dB/100 Hz |
| Equalizer, treble | ±10 dB/10 kHz |
| Power supply | ˜
230 V/50 Hz/130 VA,
rech. battery 2 x 12 V/4.5 Ah |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 305 x 510 x 265 mm |
| Weight | 15.5 kg |
| Connections | 1 x XLR/6.3 mm jack
(mic/line),
1 x 6.3 mm jack (mic) 1 x RCA L/R (line out), 1 x 3.5 mm jack (line out) |
| TXA-820CD | |
|---|---|
| EAN code | 4007754269567 |
| Net weight | 15.62 kg |
Help Centre
Video
Reviews
Associated Items
-

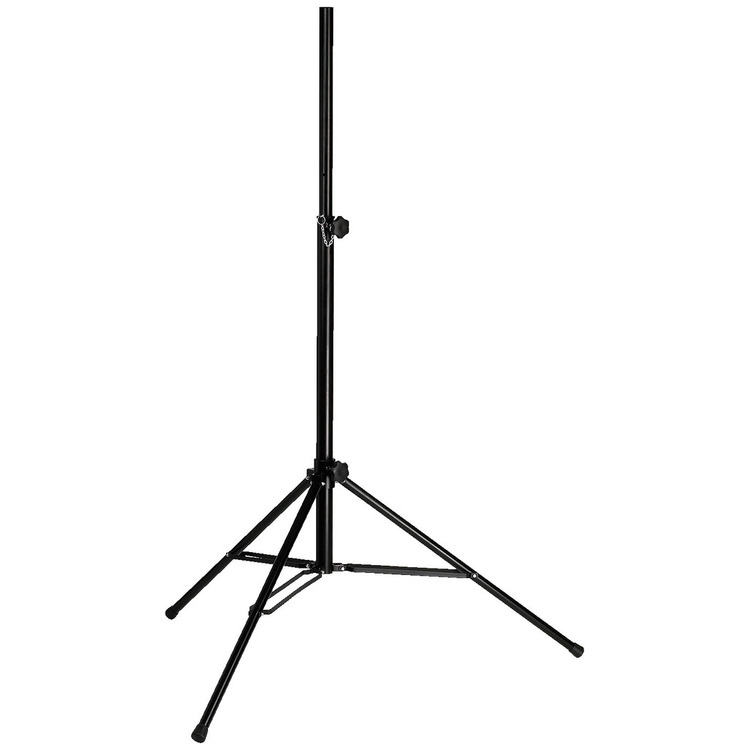

Tripod Speaker Steel Floor Stand Height adjustable 130-200cm Max load 40kg Tube diameter 35mm
£61.38 (£51.15 ex VAT)Tripod Speaker Steel Floor Stand Height adjustable 130-200cm...
-

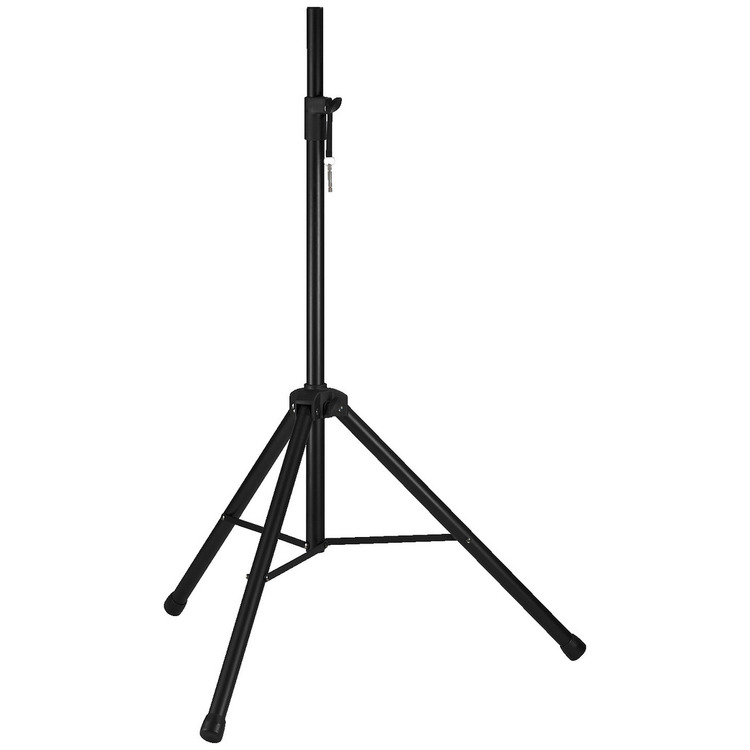

Tripod Speaker Floor Stand Height adjustable 140-200cm Max load 30kg Tube diameter 35mm
£68.04 (£56.70 ex VAT)Tripod Speaker Floor Stand Height adjustable 140-200cm Max...
-

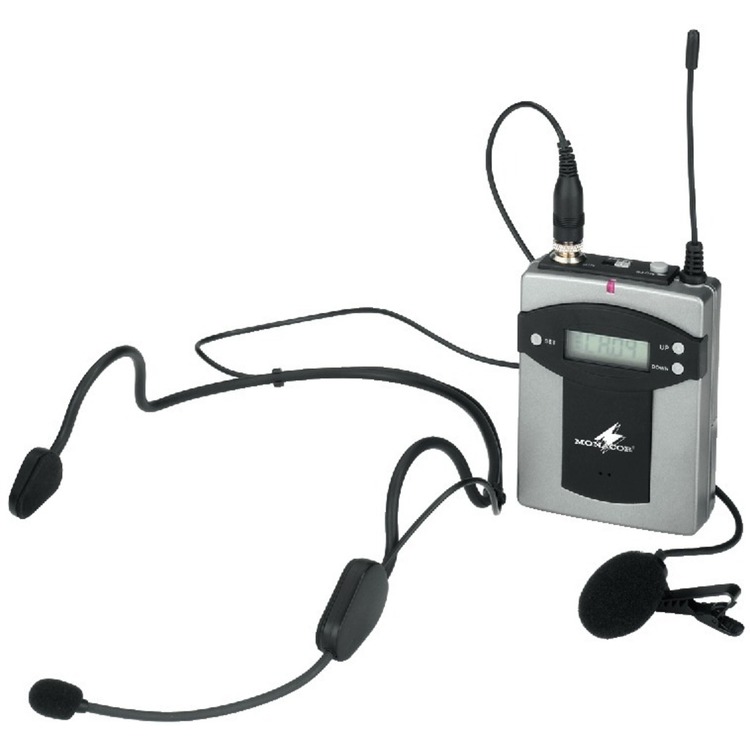

Monacor TXA-800HSE radio mic pocket transmitter
£222.77 (£185.64 ex VAT)Monacor TXA-800HSE Multifrequency pocket radio mic transmitter...
-

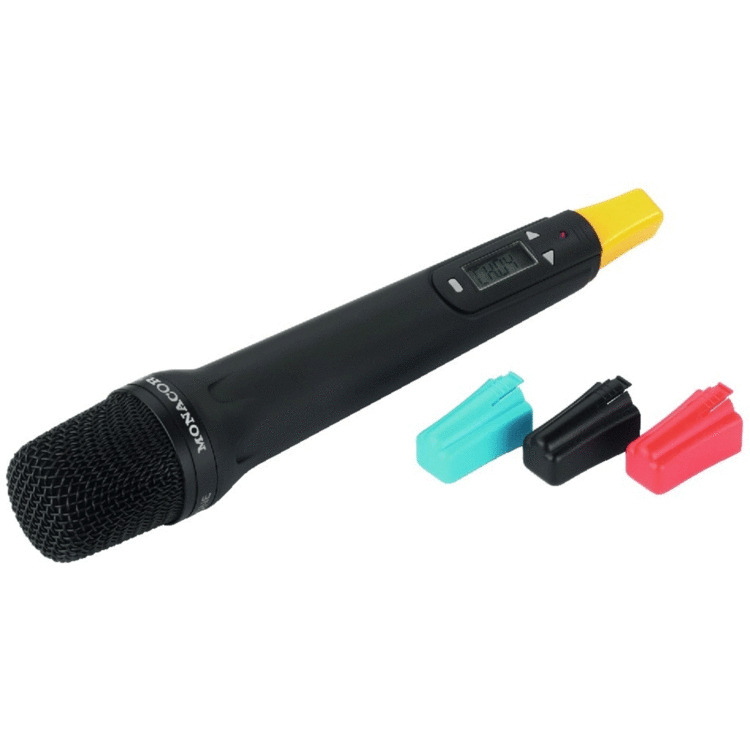

Monacor TXA-800HT Hand-held radio microphone transmitter
£169.66 (£141.38 ex VAT)Monacor TXA-800HT Hand-held microphone with integrated multi-frequency...
-

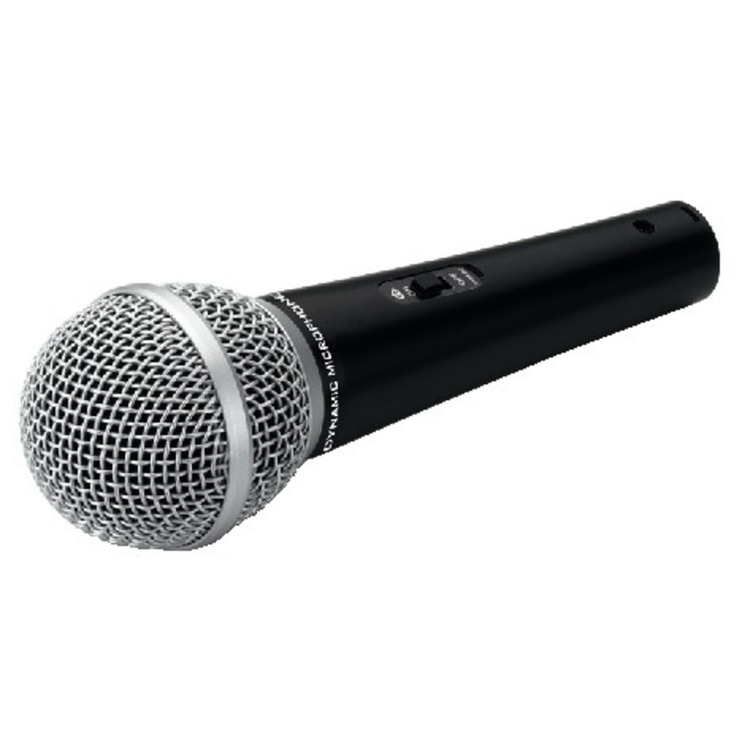

Handheld Dynamic microphone with Cable - 1/4" plug
£32.34 (£26.95 ex VAT)Handheld Dynamic microphone with Cable - 1/4" plug
-

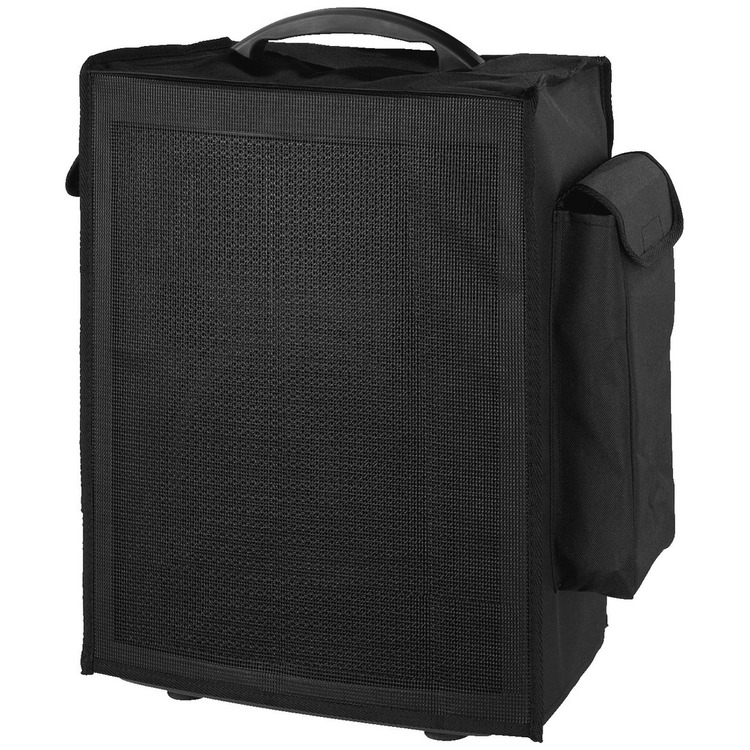

Protective cover for Monacor portable amplifier systems TXA-820, TXA-820CD, TXA-822CD
