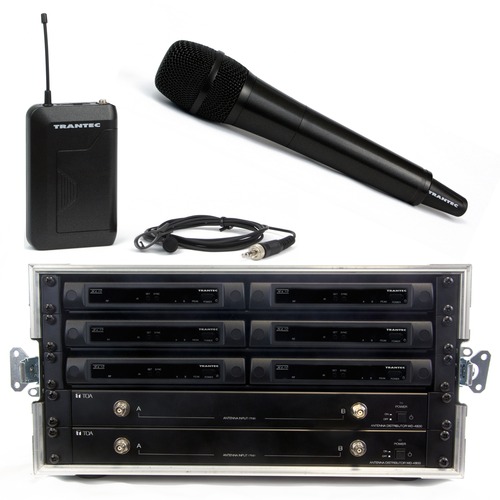

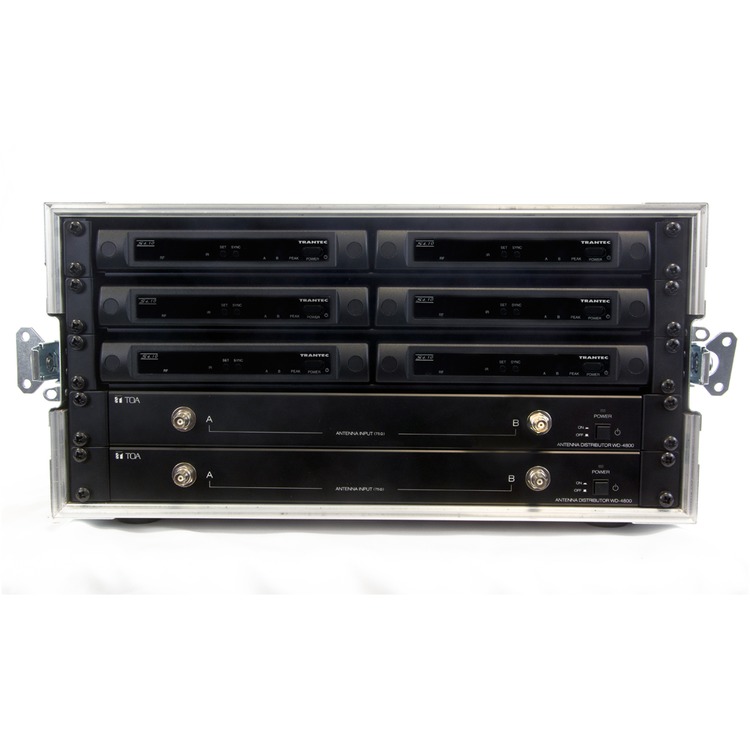

6 Way Trantec S4.10 Rack ‘n’ Ready system with ADU, PSU and
Flight Case - channel 38
Trantec product code: S4.10L-G3-RACK-6W
Trantec S4.10 Receiver
|
|
Diversity Reception | Antenna Diversity |
Sensitivity
|
10uV at 45dBA, S/N |
Squelch
|
Tone SQ, Carrier SQ, Noise SQ
|
Audio Frequency Response
|
50Hz – 15kHz |
Audio Output Level
|
Balanced (XLR socket): -20dBu |
Unbalanced (1/4" jack socket): 10dBu
|
|
Power Supply
|
12 VDC 500mA - UK power supply |
Dimensions
|
215(W) x 39(H) x 102(D)mm
|
Weight
|
480g
|
Trantec S4.10 Handheld Transmitter | |
RF Carrier Power
|
10mW
|
Audio Frequency Response
|
80Hz – 15kHz
|
Audio Input Level
|
140 dBSPL(maximum)
|
Battery
|
1 x AA alkaline, 1.5V
|
Battery Life
|
Approx. 10 hours
|
Finish
|
Resin, coating
|
Dimensions
|
250 x 55mm
|
Weight
|
245g with battery
|
Trantec S4.10 Beltpack Transmitter | |
RF Carrier Power | 10 mW |
Audio Frequency Response | 50Hz – 15kHz |
Audio Input Level | -6dBV (maximum), mic gain 0dB |
Microphone connection | 3.5mm screw lockable |
Battery Life | Approx. 10 hours |
Battery | 1 x AA alkaline, 1.5V |
Finish | Resin, Coating |
Dimensions | 62(W) x 100(H) x 25(D)mm |
Weight | 85g with battery |
