Trantec S4.10 Rack'n'Ready kit with 4 radio mics - ch 38

Code: 48S4G

Write a review

£2,274.00 (£1,895.00 ex VAT)

Quantity Pricing

2 - 4

£1,728.00 each (£1,440.00 each ex VAT)

5 +

£1,546.80 each (£1,289.00 each ex VAT)

Choose quantity and options

Please select mix of Transmitter types :

Quantity:

Please allow around a working week for dispatch of this product

Description

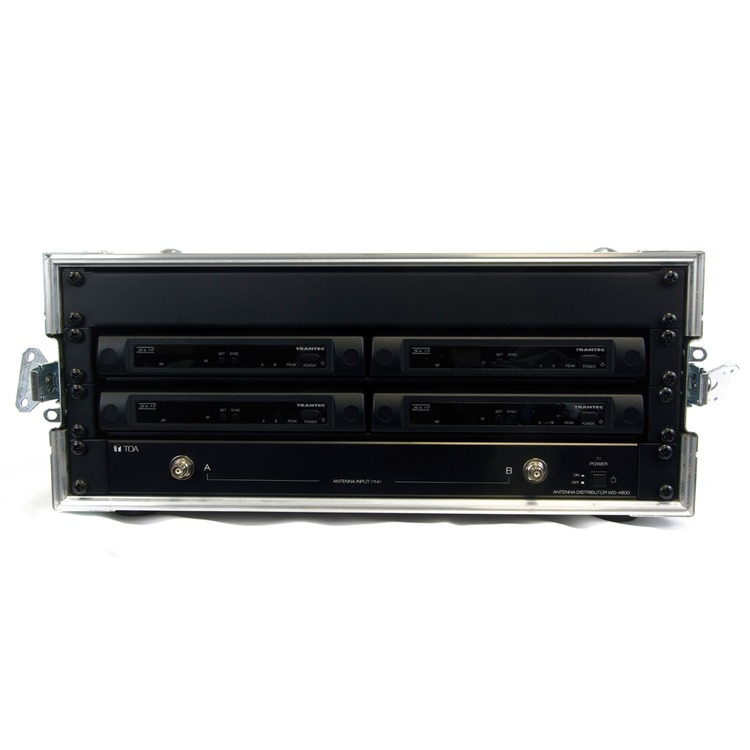

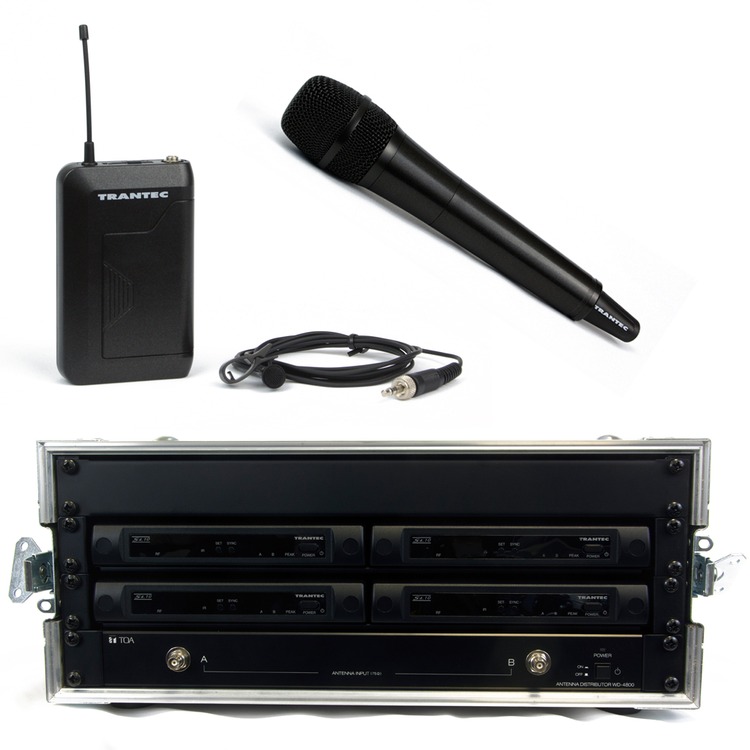

4 Way Trantec S4.10 Rack ‘n’ Ready system with ADU, PSU and Flight Case - channel 38

USB based computer monitoring
Simple programming of transmitters via infra-red
Single AA transmitter battery life of approx. 10 hours
4 x Trantec S4.10 receivers
4 x Trantec S4.10 transmitters in any combination of handheld or beltpack (includes LP2 lapel microphone)
Antenna
Rack mounting trays
Flight case
Power supply allowing 1 single cable for assembled rack
230v ac 50Hz UK plug

Trantec product code: S4.10L-G3-RACK-4W

Please note that in the UK the frequencies in Channel 70 are licence free, to use the frequencies in Channel 38 you need to apply for a licence. For further information please visit the OFCOM website.

Details

Specifications

Trantec S4.10 Receiver
Diversity Reception	Antenna Diversity
Sensitivity	10uV at 45dBA, S/N
Squelch	Tone SQ, Carrier SQ, Noise SQ
Audio Frequency Response	50Hz – 15kHz
Audio Output Level	Balanced (XLR socket): -20dBu
	Unbalanced (1/4" jack socket): 10dBu
Power Supply	12 VDC 500mA - UK power supply
Dimensions	215(W) x 39(H) x 102(D)mm excluding antenna and BNC
Weight	480g
Trantec S4.10 Handheld Transmitter
RF Carrier Power	10mW
Audio Frequency Response	80Hz – 15kHz
Audio Input Level	140 dBSPL(maximum)
Battery	1 x AA alkaline, 1.5V
Battery Life	Approx. 10 hours
Finish	Resin, coating
Dimensions	250 x 55mm
Weight	245g with battery
Trantec S4.10 Beltpack Transmitter
RF Carrier Power	10 mW
Audio Frequency Response	50Hz – 15kHz
Audio Input Level	-6dBV (maximum), mic gain 0dB
Microphone connection	3.5mm screw lockable
Battery Life	Approx. 10 hours
Battery	1 x AA alkaline, 1.5V
Finish	Resin, Coating
Dimensions	62(W) x 100(H) x 25(D)mm
Weight	85g with battery
