Trantec S4.04 - UHF 4 Frequency Hand held Radio Microphone System with Dynamic Capsule - Replaces S4.4H.
The S4.04 now features auto channel frequency syncing of the
transmitter to the receiver.

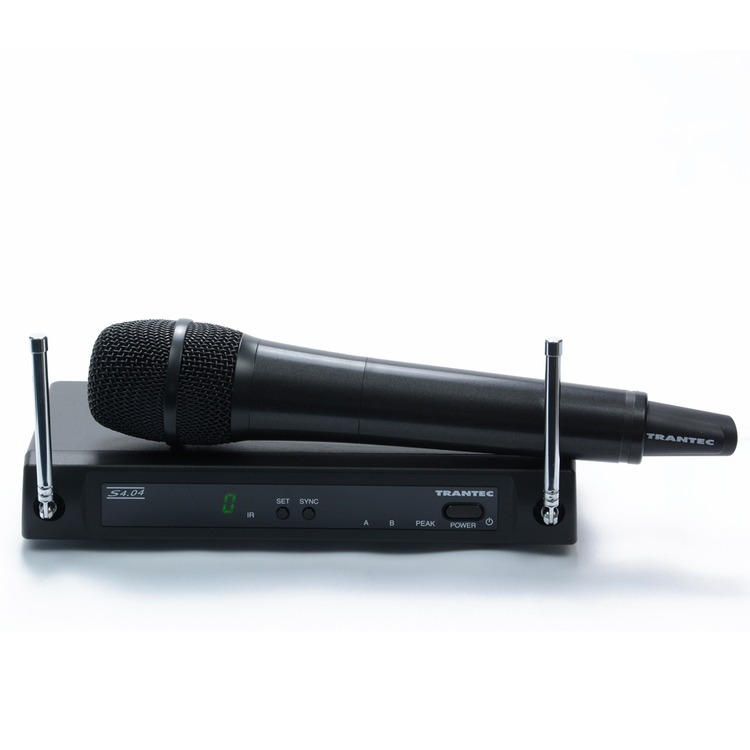

The S4.04 Series Handheld microphone system comes with a wireless handheld microphone and a mains powered UHF wireless receiver.
Available on channel 70, 863-865MHz, with 4 switchable licence free frequencies and fully synthesized PLL quartz tuning technology.
Trantec product code: S4.04-HD-EB-GD5
Specifications
Trantec S4.04 Receiver
|
|
Diversity Reception | Antenna Diversity |
Sensitivity
|
10uV at 45dBA, S/N |
Squelch | Tone SQ, Carrier SQ, Noise SQ |
Audio Frequency Response | 50Hz – 15kHz |
Audio Output Level (Max.) | Balanced (XLR socket): -20dBu |
Unbalanced(1/4" jack socket): 10dBu | |
Power Supply | 12 VDC 500mA - UK power supply
|
Dimensions | 215(W) x 39(H) x 102(D)mm |
Weight | 480g |

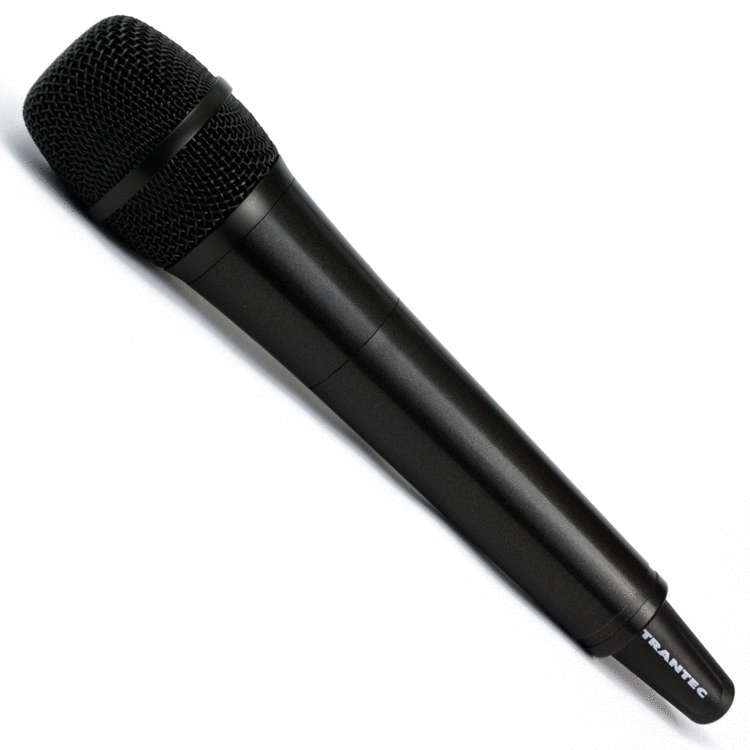

Trantec S4.04 Handheld Transmitter | |
RF Carrier Power | 10 mW |
Audio Frequency Response | 80 Hz – 15kHz |
Audio Input Level | 140 dSBPL (maximum) |
Battery Life | Approx. 10 hours |
Battery | 1 x AA alkaline, 1.5V |
Finish | Resin, Coating |
Dimensions | 250 x 55mm
|
Weight | 245g with battery |
