Trantec S4.04 - UHF 4 Frequency Lapel Radio Microphone System with Beltpack - Replaces S4.4L.
The S4.04 now features auto channel frequency syncing of the transmitter to the receiver.

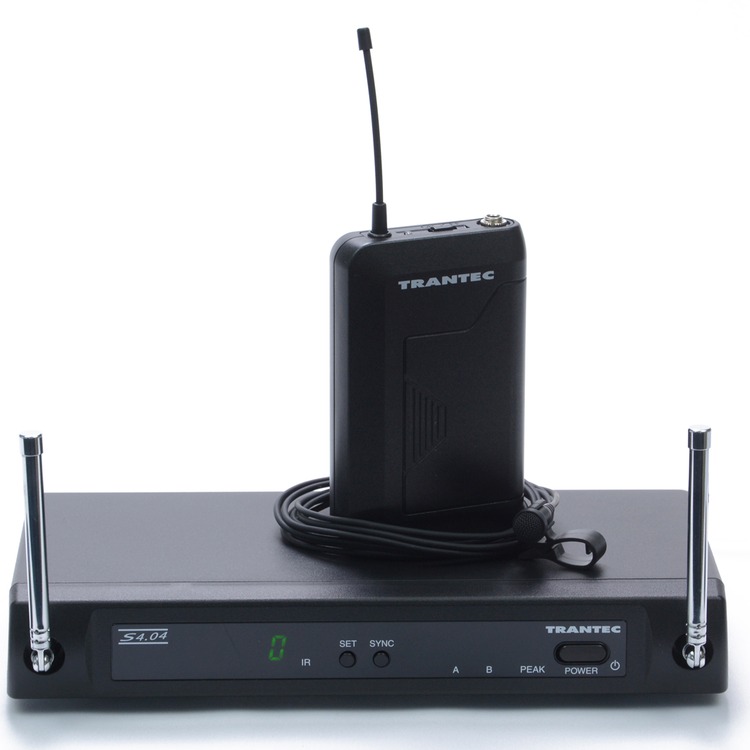

The S4.04 Series Lapel microphone system comes with an LP2 lapel
microphone, beltpack transmitter and a mains powered UHF wireless
receiver.
Available on channel 70, 863-865MHz, with 4 switchable licence free frequencies and fully synthesized PLL quartz tuning technology.
Trantec product code: S4.04-L-EB GD5
Specifications
Trantec S4.04 Receiver
|
|
Diversity Reception | Antenna Diversity |
Sensitivity
|
10uV at 45dBA, S/N |
Squelch | Tone SQ, Carrier SQ, Noise SQ |
Audio Frequency Response | 50Hz – 15kHz |
Audio Output Level (Max.) | Balanced (XLR socket): -20dBu |
Unbalanced(1/4" jack socket): 10dBu | |
Power Supply | 12 VDC 500mA - UK power supply |
Dimensions | 215(W) x 39(H) x 102(D)mm |
Weight | 480g |
Trantec S4.04 Beltpack Transmitter | |
RF Carrier Power | 10 mW |
Audio Frequency Response | 50Hz – 15kHz |
Audio Input Level | -6dBV (maximum), mic gain 0dB |
Microphone connection | 3.5mm screw lockable |
Battery Life | Approx. 10 hours |
Battery | 1 x AA alkaline, 1.5V |
Finish | Resin, Coating |
Dimensions | 62(W) x 100(H) x 25(D)mm |
Weight | 85g with battery |
