Order now for dispatch in 1-2 working days.

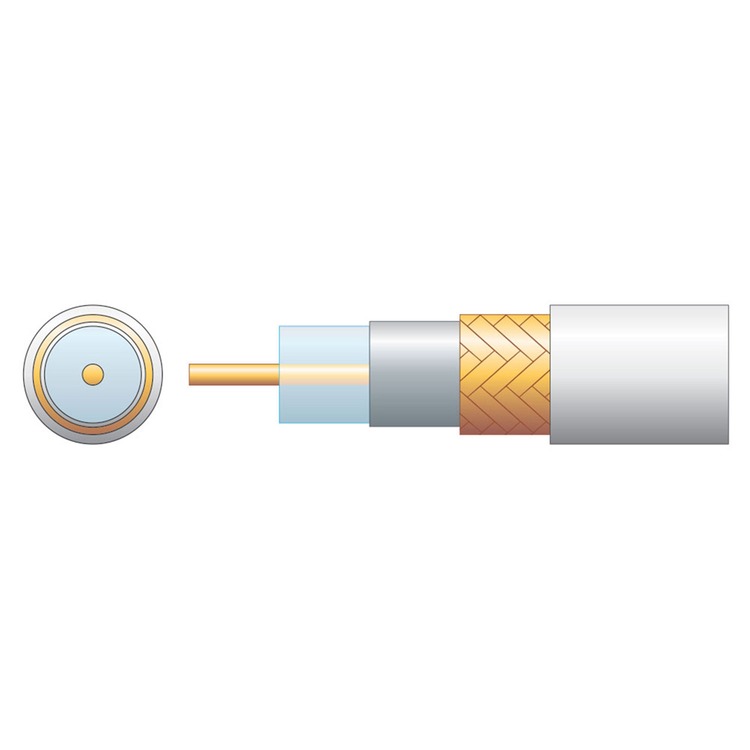

75 Ohms white RG6 white coaxial cable constructed of solid copper clad steel conductor, air spaced polyethylene dielectric, aluminium foil screen, copper clad aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital, satellite and cable TV signal transmission.
mercury product code: 808.113UK
CSA 0.79mm²
Conductor diameter 1mmØ
Conductor material Solid CCS
Braid 48 x 0.12mmØ
Braid material CCA
Screen Aluminium / PET foil
Dielectric 4.6mmØ air spaced PE
Cable diameter 6.6mmØ
Impedance 75 Ohms
Capacitance 54pF/m
Velocity factor 83%
Return loss 5-400MHz 24dB min./100m
Return loss 450-1000MHz 20dB min./100m
Return loss 1000-2150MHz 16dB min./100m
Attenuation @ 5MHz 2.9dB max./100m
Attenuation @ 50MHz 5.2dB max./100m
Attenuation @ 100MHz 6.9dB max./100m
Attenuation @ 200MHz 10.2dB max./100m
Attenuation @ 400MHz 14.9dB max./100m
Attenuation @ 860MHz 20.3dB max./100m
Attenuation @ 1000MHz 22.5dB max./100m
Attenuation @ 1750MHz 29.8dB max./100m
Attenuation @ 2150MHz 33.6dB max./100m
Length 100m
Weight 4.2kg
Cable colour White
